Globe Valves

Globe valves are critical components in fluid control systems, primarily used for regulating flow in pipelines. Unlike ball valves, which provide on/off control, globe valves can adjust flow rates precisely. They are characterised by their spherical body shape and the internal baffle that splits the valve into two halves with an opening that forms a seat onto which a movable plug can be screwed in to close the valve. Globe valves are commonly made from brass, bronze, iron, and steel, each providing specific benefits for various applications and environments. This overview explores the characteristics, advantages, and applications of globe valves made from these materials.

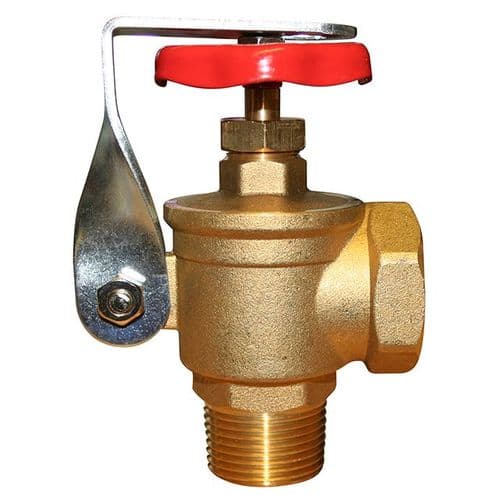

Brass Globe Valves

Brass is an alloy of copper and zinc known for its good corrosion resistance, machinability, and durability. It is particularly effective in systems where water is the primary medium.

Advantages:

• Corrosion Resistance: Brass is resistant to corrosion from water and is suitable for both hot and cold water applications.
• Machinability: The material is easy to machine, allowing for precise control over manufacturing processes, which is vital for the acceptable tolerances required in globe valve mechanisms.
• Cost-Effectiveness: Brass valves are generally more affordable than those made from other metals, making them popular for residential and light commercial applications.

Applications:

• Water distribution systems
• Low-pressure steam applications
• Gas distribution systems

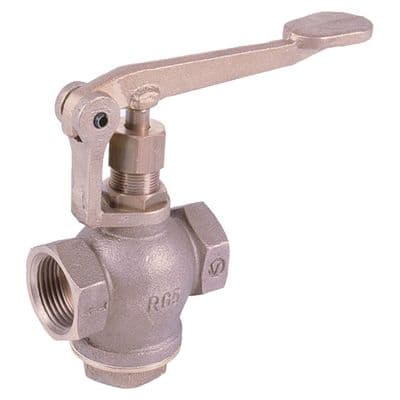

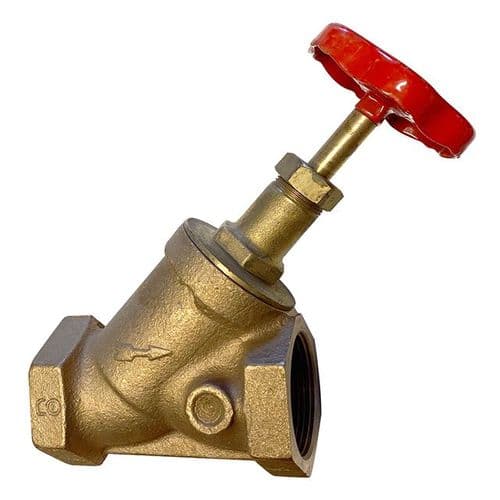

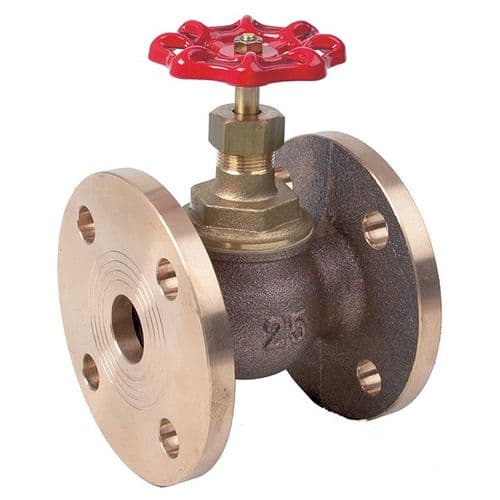

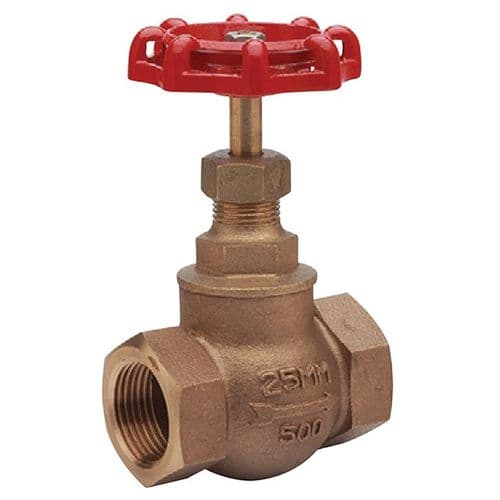

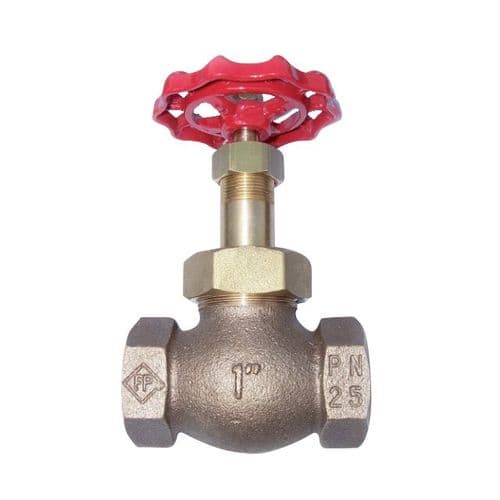

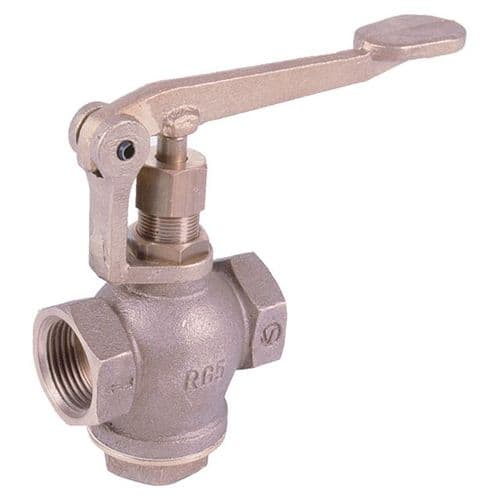

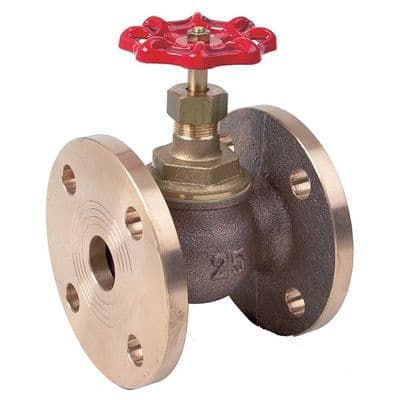

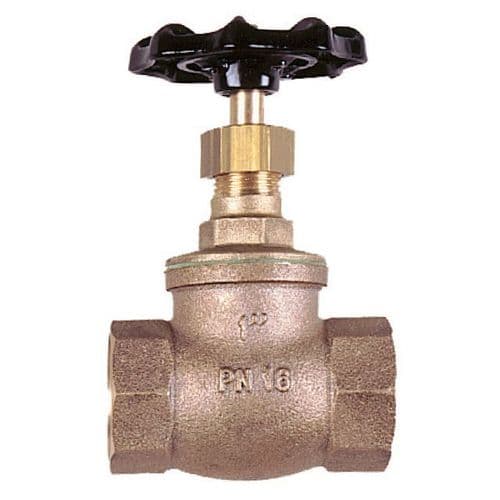

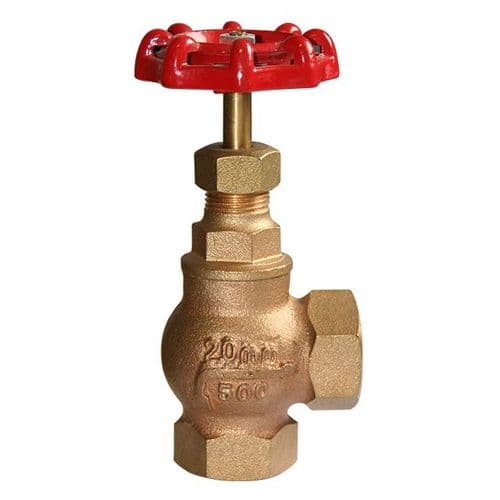

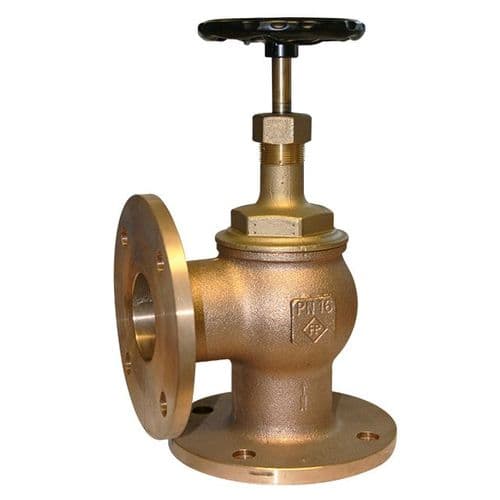

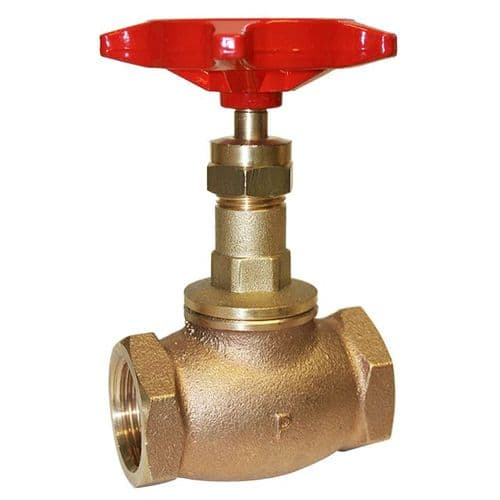

Bronze Globe Valves

Bronze is an alloy primarily composed of copper and tin. It includes small amounts of other elements, such as phosphorus, manganese, aluminium, or silicon, which enhance its strength and corrosion resistance. Bronze is heavier and more robust than brass, making it suitable for more demanding applications.

Advantages:

• Enhanced Corrosion Resistance: Bronze is highly corrosion-resistant, particularly in marine and industrial environments with corrosive fluids.
• Durability: It offers greater durability and is less prone to dezincification than brass, making it suitable for higher-pressure applications.
• Thermal Conductivity: Good thermal conductivity makes bronze valves suitable for temperature-sensitive applications.

Applications:

• Marine environments
• Chemical processing
• High-pressure steam systems

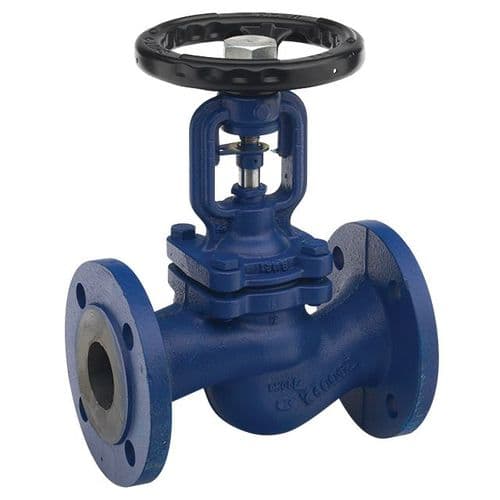

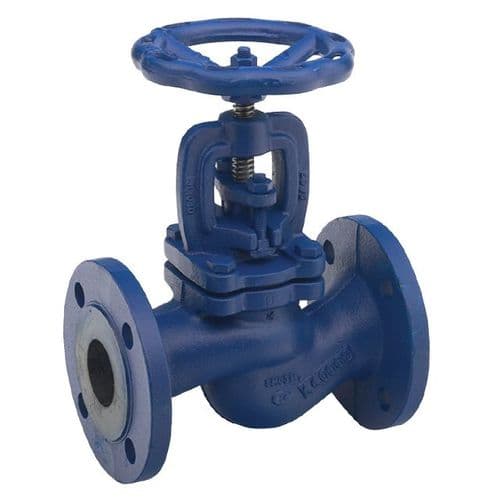

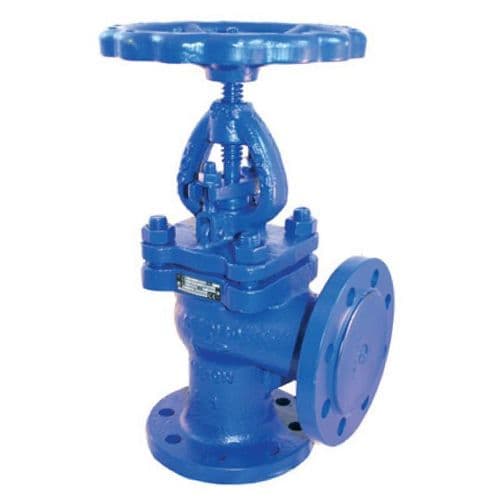

Iron Globe Valves

Iron, particularly cast iron, is commonly used in globe valves for its cost-effectiveness and durability. It is suitable for large-scale industrial applications where robustness and the ability to handle high pressures are essential.

Advantages:

• Cost-Effectiveness: Iron is among the most economical materials for manufacturing large valves in extensive pipeline applications.
• High-Pressure Tolerance: Cast iron's strength enables it to operate under high pressures, which is crucial for large industrial and municipal applications.
• Durability: It offers the robustness needed for demanding applications, though it is prone to corrosion if not properly maintained or coated.

Applications:

• Municipal water and sewage treatment plants
• Fire protection systems
• Industrial applications involving high-pressure fluids

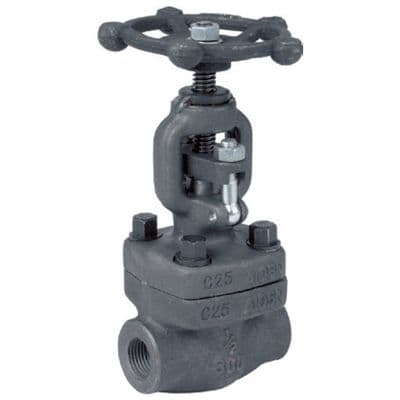

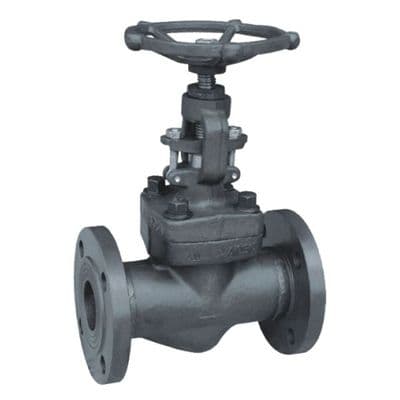

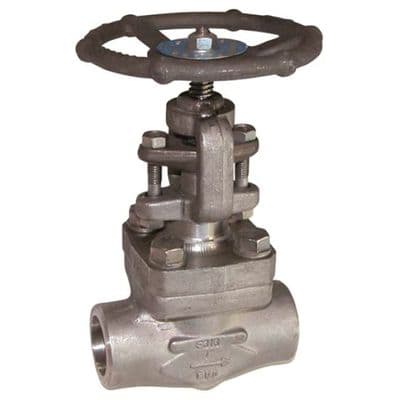

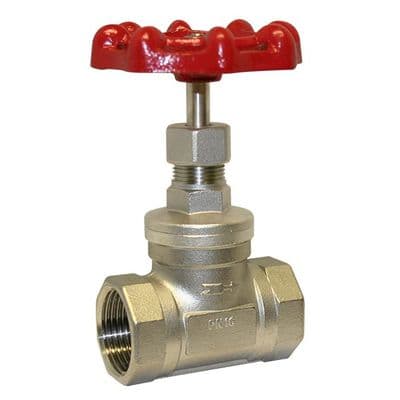

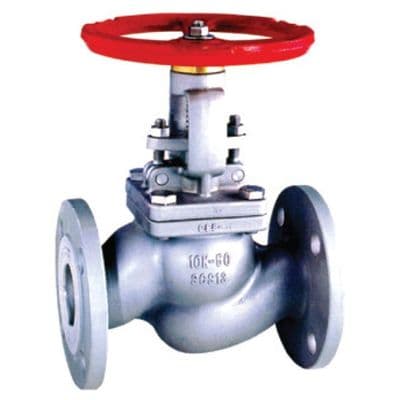

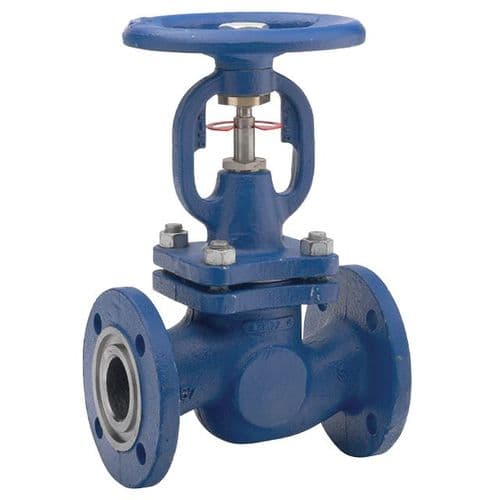

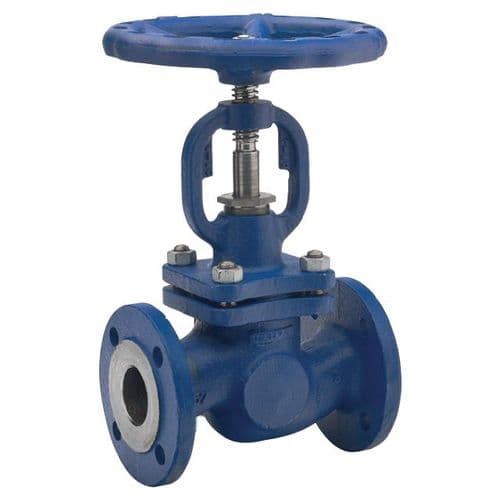

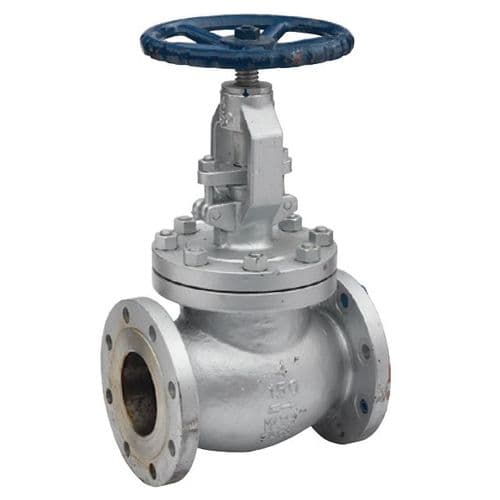

Steel Globe Valves

Steel, mainly stainless steel, is known for its strength, durability, and excellent resistance to extreme temperatures and corrosive environments. Stainless steel globe valves are preferred in critical applications requiring high cleanliness and corrosion resistance.

Advantages:

• High Strength and Durability: Steel can handle high pressures and temperatures, making it ideal for critical environments.
• Corrosion Resistance: Stainless steel offers exceptional resistance to various chemicals and does not rust easily, essential in harsh environments.
• Hygienic Properties: Stainless steel's non-porous nature makes it suitable for sanitary applications, which are crucial in the pharmaceutical and food industries.

Applications:

• Petrochemical processing
• Pharmaceutical and food processing industries
• High-temperature and high-pressure applications

Comparative Overview

When selecting materials for globe valves, the specific requirements of the application, including the type of fluid, pressure, temperature, and environmental conditions, should be considered:

• Brass valves are suitable for general, low to medium-pressure applications, especially in residential and commercial water systems where corrosion resistance and cost are significant considerations.
• Bronze valves excel in harsher environments and higher pressures and are suitable for marine applications and industrial processes involving corrosive fluids.
• Iron valves are ideal for large, cost-sensitive applications such as municipal water systems, where robustness and high-pressure handling are prioritised.
• Steel valves are preferred in environments requiring high strength, durability, and corrosion resistance, particularly in clean or sterile processes due to their hygienic properties.

Conclusion

Choosing the material for a globe valve is crucial to ensuring operational efficiency, longevity, and safety in fluid control systems. Brass, bronze, iron, and steel each offer distinct advantages, making them suitable for various industrial, commercial, and residential applications. By understanding these materials' properties, engineers and technicians can make informed decisions that optimise system performance and effectively meet operational requirements.
