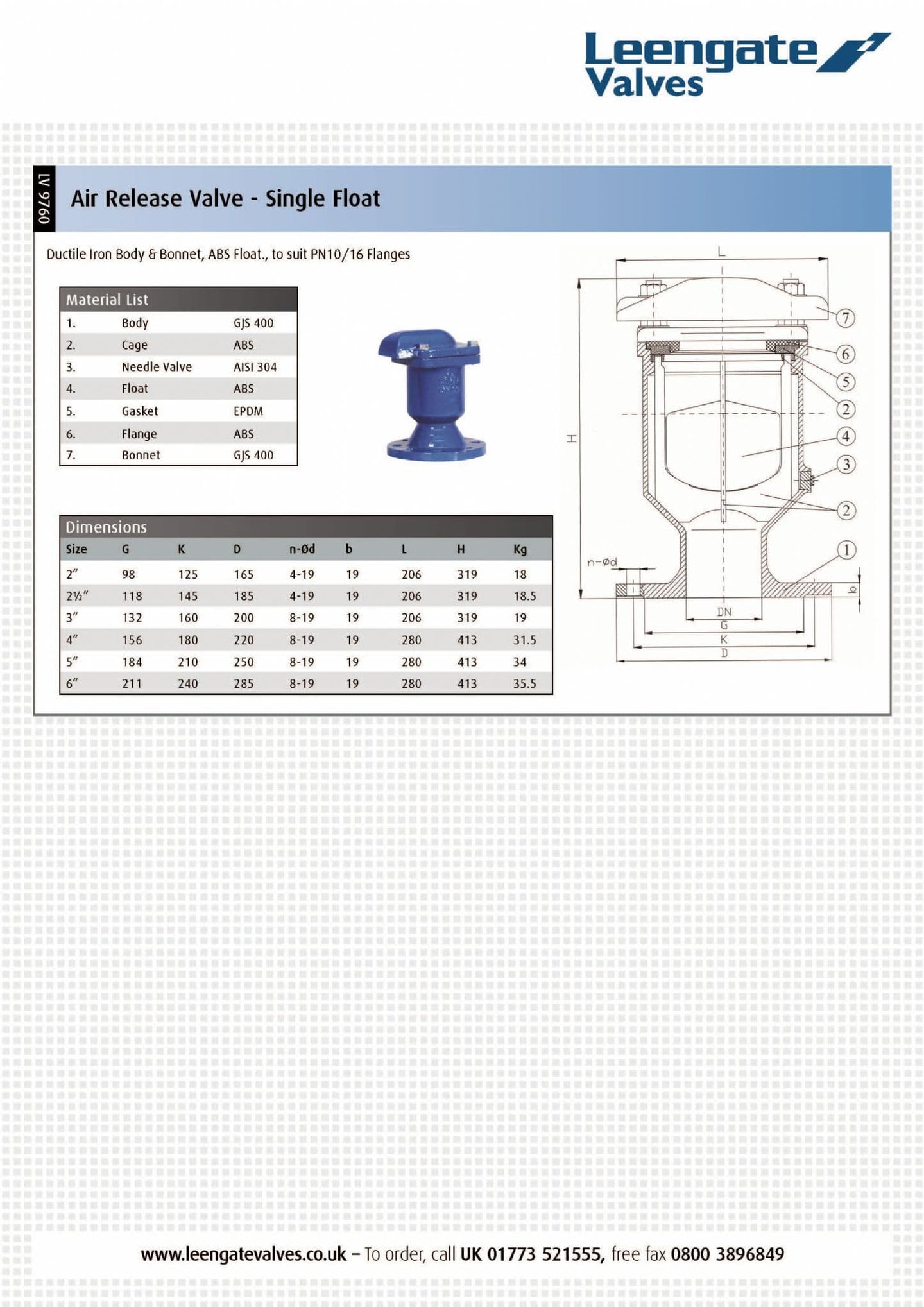

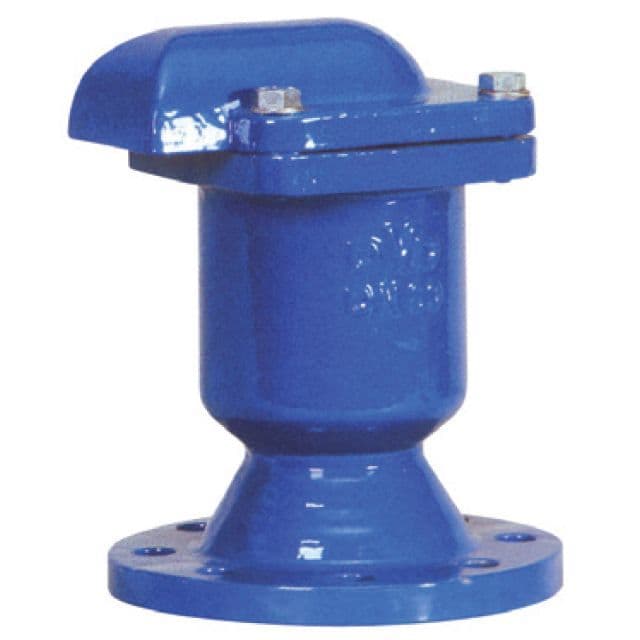

Air Release Valve SingleFloat

This air release valve utilises a single float mechanism to automatically vent unwanted air from pipelines, improving efficiency and protecting against waterhammer or flow disruption. Its especially suited for water mains, distribution systems and pumping networks.

Technical Data:

• Body Material: Often ductile iron or cast iron, epoxycoated for corrosion resistance.
• Float & Internal Trim: Stainless steel float assembly with resilient EPDM seat or orifice seal.
• Connection Type: Flanged PN16
• Pressure Rating: PN16 ( 16 bar )
• Temperature Range: Typically 10°C to +70°C for standard water service
• Functionality: Float drops when air accumulates, opening the orifice to vent; liquid rise makes float seal off orifice.

Key Features:

• Automatically vents accumulated air pockets, maintaining flow capacity and protecting pumps.
• Compact design supports mounting at high points or pipeline crests with limited space.
• Corrosionresistant internals for long service life in water systems.
• Helps reduce energy losses and prevent column separation or surge damage.

Typical Applications:
Water distribution mains, booster pump delivery lines, highrise risers, utility water networks, irrigation systems or any pipeline where trapped air might reduce efficiency or cause damage.
