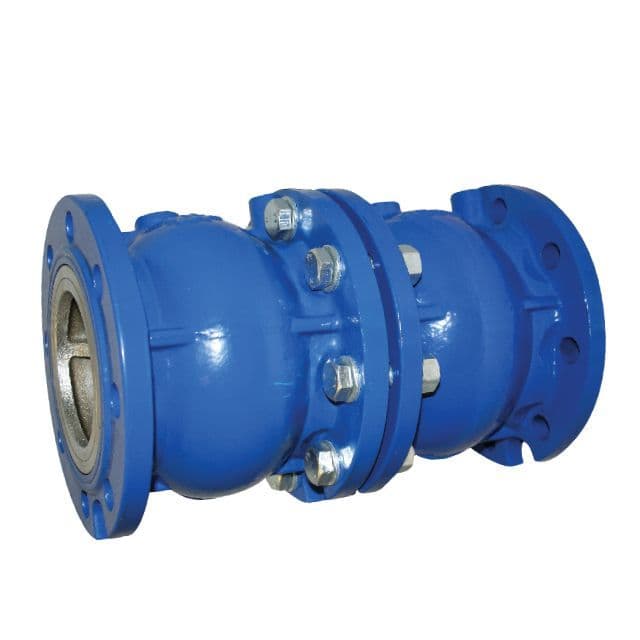

AxialDiscDoubleCheckValve

This axialdisc double check valve offers dual internal check mechanisms within one body, providing enhanced redundancy and protection against backflow. The design suits systems where higher safety margins are required or contamination prevention is critical.

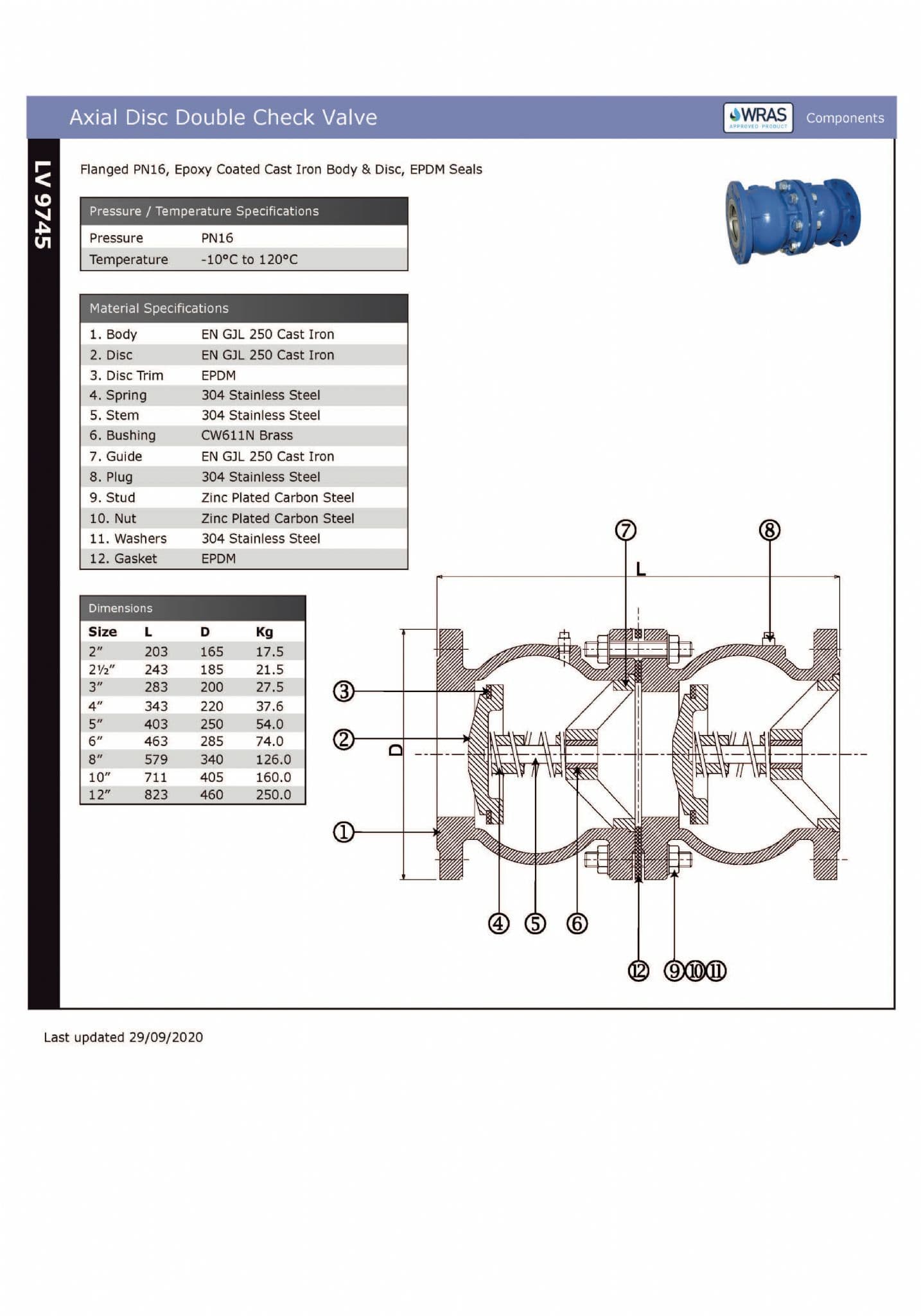

Technical Data:

• Body Material: Cast Iron, Epoxy Coated
• Disc Mechanisms: Two independent axial discs one after the other; provides double protection.
• Seat / Trim Options: EPDM seals, metal seat
• Pressure Rating: PN16 ( 16 bar )
• Connection Type: Flanged PN16
• Temperature Range: 10°C to +120°C
• Installation Guidance: Flow direction must match markings; ensure both check discs are functional.

Key Features:

• Dual check disks enhance safety, reducing risk of backflow even if one disc fails.
• Axial disc design ensures minimal pressure drop compared to some swing check types.
• Suitable for applications requiring compliance with safety or contamination avoidance.
• Flexible material and trim options allow adaptation to multiple service conditions.

Typical Applications:
Potable water booster systems with contamination risk, chemical feed lines requiring double isolation, HVAC loops with high hygiene demands, process plant service where regulatory compliance calls for dual protection.
