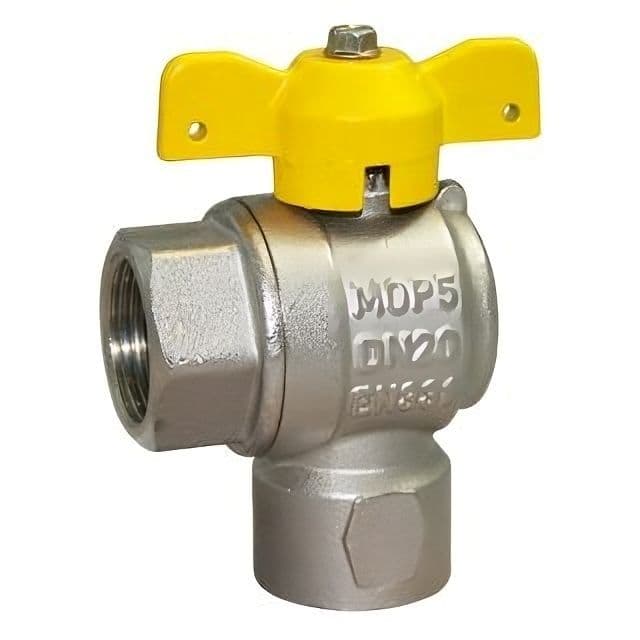

Brass AnglePattern Ball ValveEN331 GasApproved BSPP Female

Designed in an anglepattern (90° flow direction change) format, this brass ball valve is EN331 gasapproved and features female BSPP connections. The fullbore design offers high flow capacity, while the nickelplated brass body ensures robustness and regulatory compliance.

Technical Data:

Body Material: Nickelplated brass
End Connections: Female BSPP threads, anglepattern body (one side 90° orientation)
Certification: EN331 gas approved
Handle: Typically yellow butterfly or lever (depending on model)
Pressure Rating: PN40
Temperature Range: 20°C to +70°C (gas); up to +110°C (liquid service)
Seat Materials: PTFE seats; stem Orings NBR/Viton

Key Features:

Anglepattern design allows plumbing in tight spaces or where directional change is required
Female BSPP threads promote secure connection in standard pipework
Certified for gas installation, ensuring safe use in regulated applications

Applications: Gas meter risers, boiler room installations with directional change, commercial gas feed lines in confined spaces.

Pipetech

Brass Angle Pattern Ball Valve EN331 Gas Approved BSPP Female

SKU V732004

Regular price: £12.57

Excl. tax: £10.39

Brass AnglePattern Ball ValveEN331 GasApproved BSPP Female

Designed in an anglepattern (90° flow direction change) format, this brass ball valve is EN331 gasapproved and features female BSPP connections. The fullbore design offers high flow capacity, while the nickelplated brass body ensures robustness and regulatory compliance.

Technical Data:

Body Material: Nickelplated brass
End Connections: Female BSPP threads, anglepattern body (one side 90° orientation)
Certification: EN331 gas approved
Handle: Typically yellow butterfly or lever (depending on model)
Pressure Rating: PN40
Temperature Range: 20°C to +70°C (gas); up to +110°C (liquid service)
Seat Materials: PTFE seats; stem Orings NBR/Viton

Key Features:

Anglepattern design allows plumbing in tight spaces or where directional change is required
Female BSPP threads promote secure connection in standard pipework
Certified for gas installation, ensuring safe use in regulated applications

Applications: Gas meter risers, boiler room installations with directional change, commercial gas feed lines in confined spaces.

Regular price: £12.57

Excl. tax: £10.39

Size: 1/2" 3/4"
