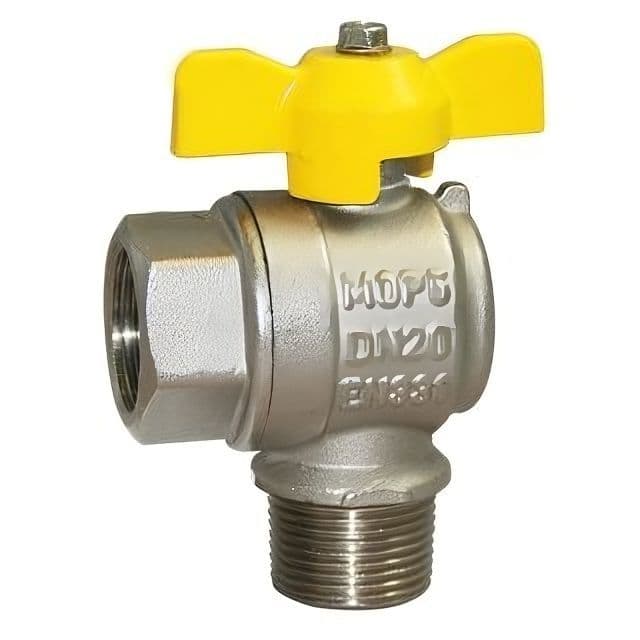

Brass AnglePattern Ball ValveEN331 GasApproved BSPP Male×Female

This brass anglepattern ball valve meets EN331 gasapproval standards and is configured with a male thread on one end and a female BSPP thread on the otherideal for complex pipework transitions. Featuring a nickelplated brass body and fullbore flow, its built for gas applications needing flexibility and compliance.

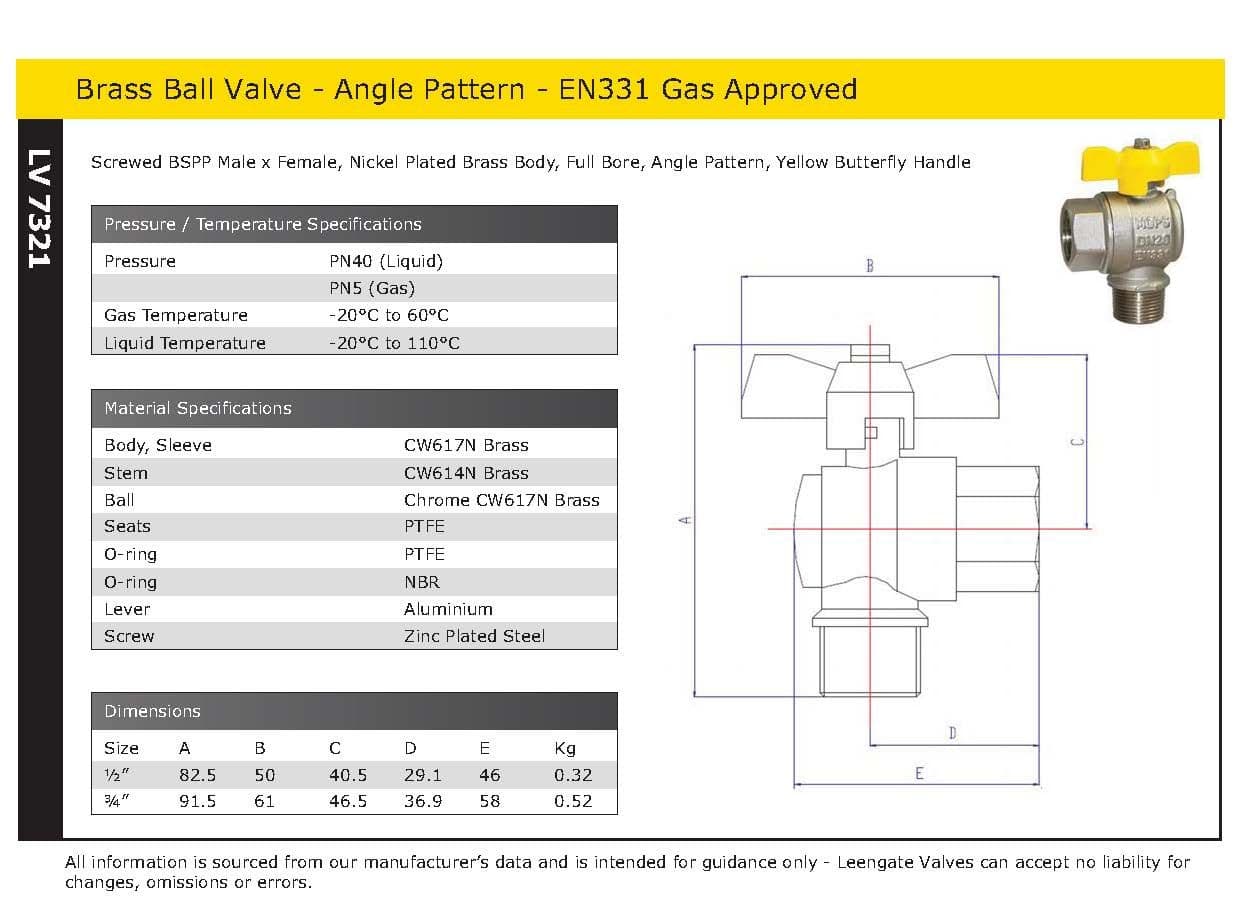

Technical Data:

• Body Material: Nickelplated brass
• End Connections: Male × Female BSPP Threads BSPP
• Certification: EN331 for gas service
• Pressure Rating: PN40
• Temperature Range: Gas 20°C to +70°C; Liquid 20°C to ~+110°C
• Seats & Seals: PTFE seats, NBR/Viton stem Orings


Key Features:

• Male/female threaded ends allow flexible installation options in tight layouts
• Anglepattern body saves space and simplifies direction change in pipeline runs
• Certified for gas service and built from brass for corrosion resistance


Applications: Pipework transitions in gas installations, cornerfeed configurations, isolations in tight meter chambers or service risers.
