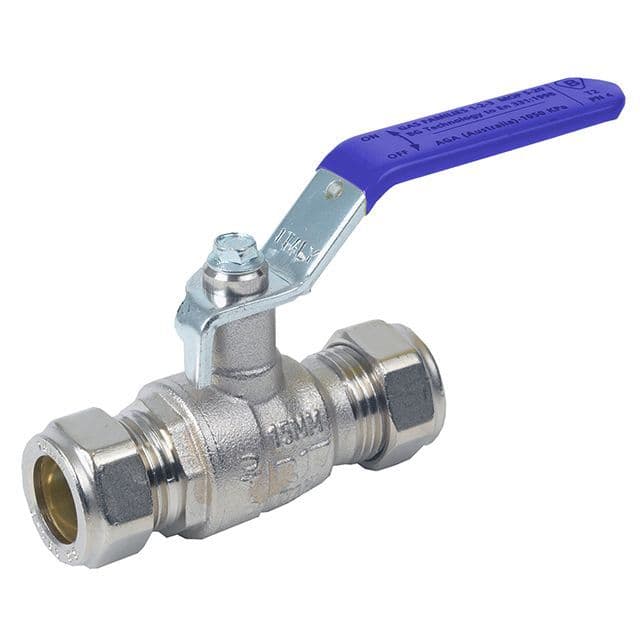

Overview of Brass Ball Valve Compression Ends Blue Lever WRAS Approved

Description
This WRAS-approved brass ball valve with compression ends and a blue lever handle offers excellent flow control in potable water systems. The nickel-plated brass construction ensures durability and resistance to corrosion, while the compression fittings allow simple installation on copper tubing. The blue lever handle is ideal for color-coded identification in hot and cold water systems.

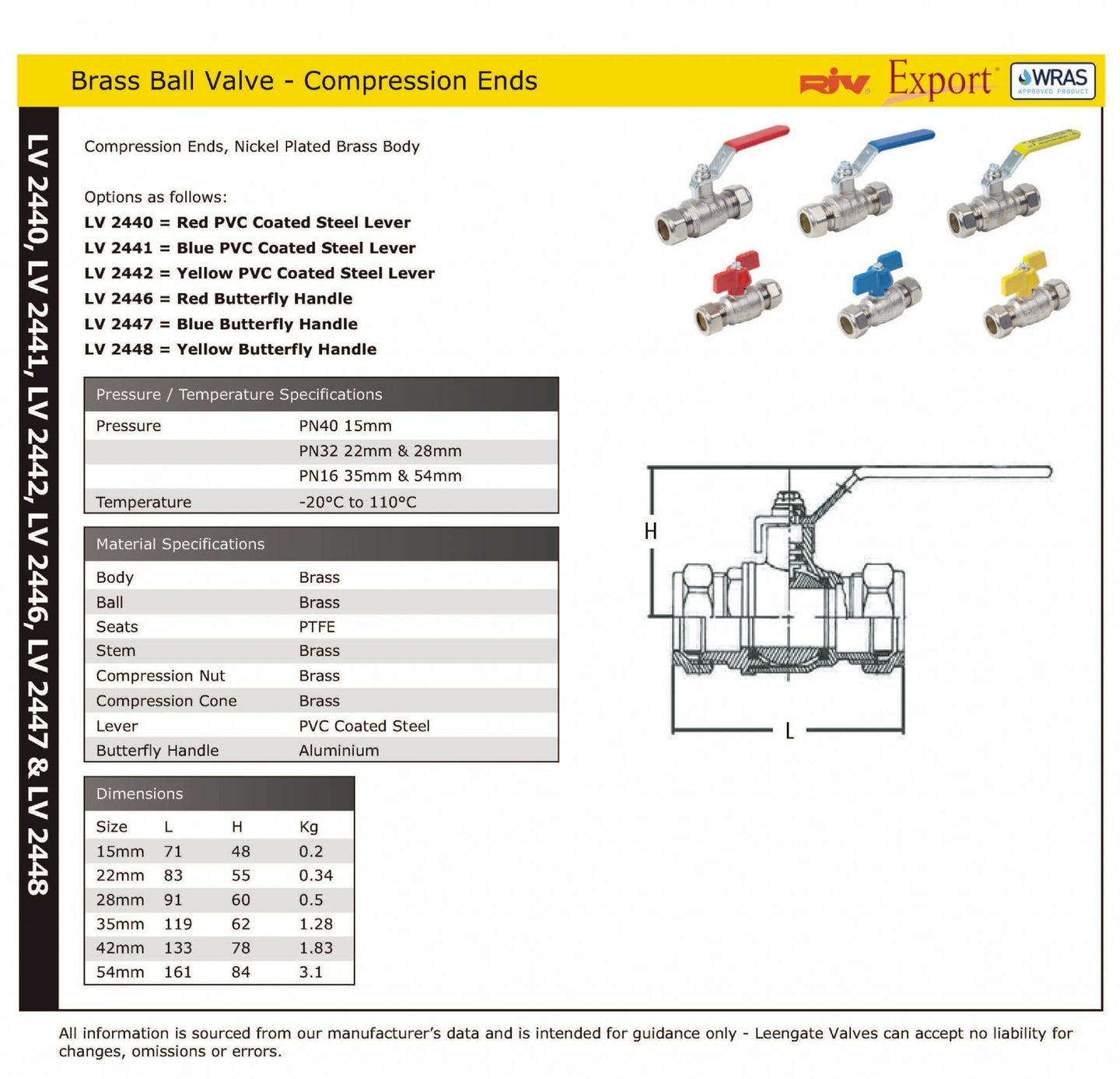

Technical Data

• Body Material: Nickel-plated brass
• End Connections: Compression ends (various bore sizes)
• Pressure Rating: PN40 (½), PN32 (¾ and 1)
• Temperature Range: 20 °C to +110 °C
• Approval: WRAS certified for potable water

Key Features

• Blue lever for easy cold-water identification
• Full-bore design ensures maximum flow efficiency
• Compression fittings enable quick, leak-free installation
• WRAS certification guarantees suitability for drinking water

Installation & Application Notes
Ensure clean, square pipe ends and correct ferrule placement before tightening. Avoid handle obstruction during operation. Ideal for cold-water service lines, potable installations, and plumbing systems requiring secure isolation points.
