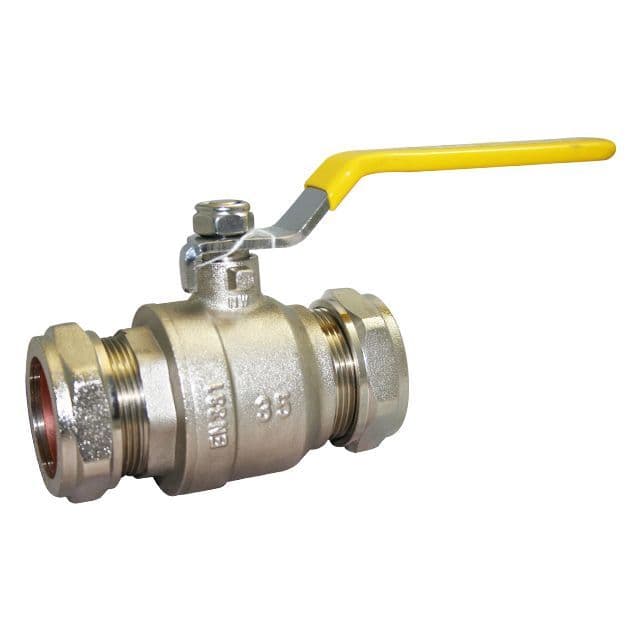

Brass Ball Valve Compression Ends BSI GasApproved

Highly suited to gas system installations, this brass ball valve features compression ends and full BSI gasapproval. The compressiontype connections allow easy installation into copper or compatible plastic pipework with minimal tooling required, delivering a secure, reliable shutoff valve for service lines.

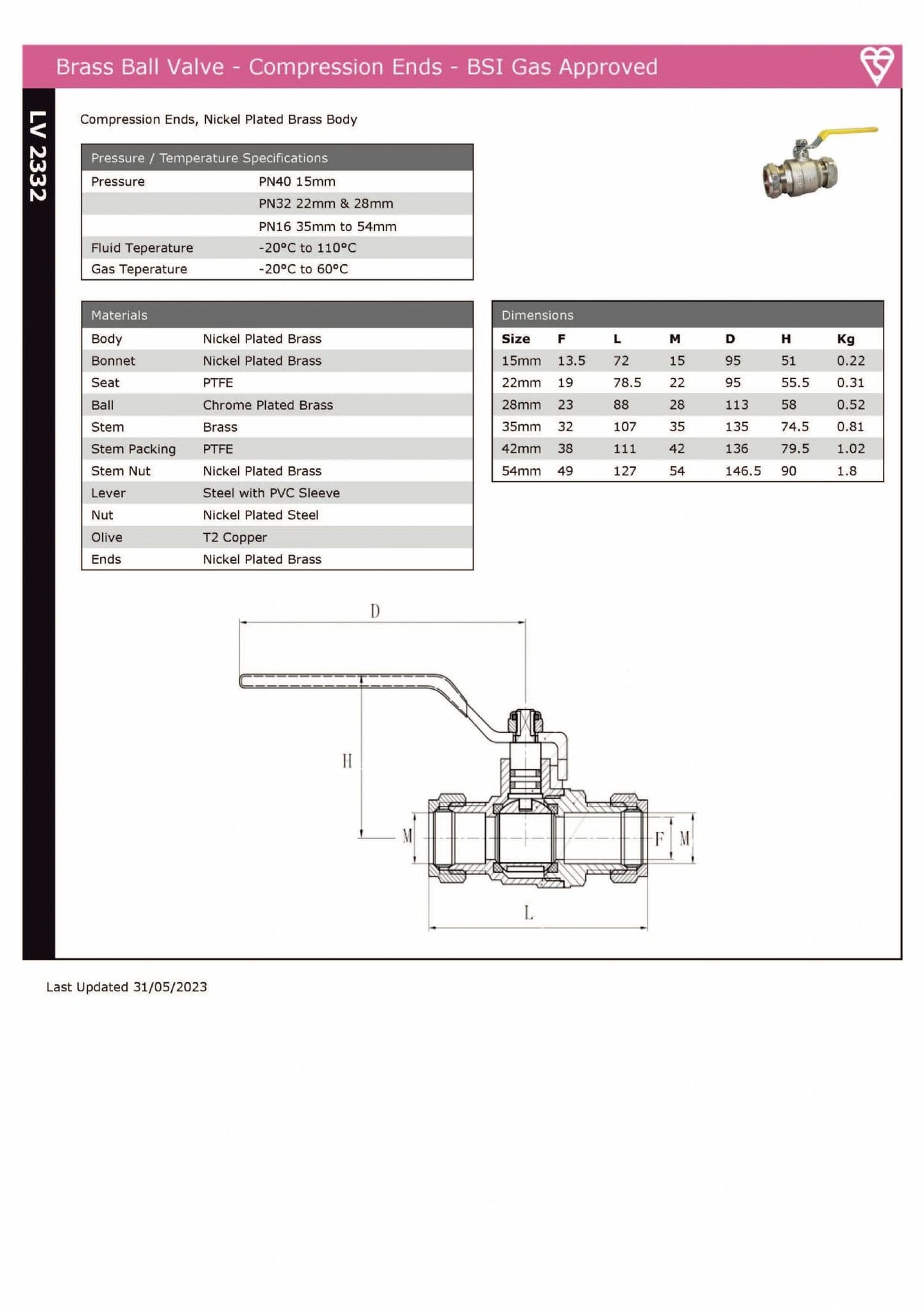

Technical Data:

• Body material: Brass (typically CW614N or equivalent)
• Connection type: Compression ends for copper/PEX pipe connections
• Certification: BSI gasapproved for gas supply systems
• Flow path: Fullbore ball design to minimise pressure drop
• Pressure rating: Rated PN40 15mm, PN32 22mm & 28mm, PN16 35mm to 54mm
• Temperature range: Fluid Temperature -20°C to 110°C, Gas Temperature -20°C to 60°C
• Seat and seal materials: PTFE seats, NBR or Viton Orings suitable for gas service


Features:

• Compression ends reduce installation time and eliminate soldering
• BSI gas approval ensures compliance with UK gas supply regulations
• Fullbore design offers efficient flow and less turbulence


Applications: Domestic and commercial gas line shutoffs, meter risers, service isolation valves.
