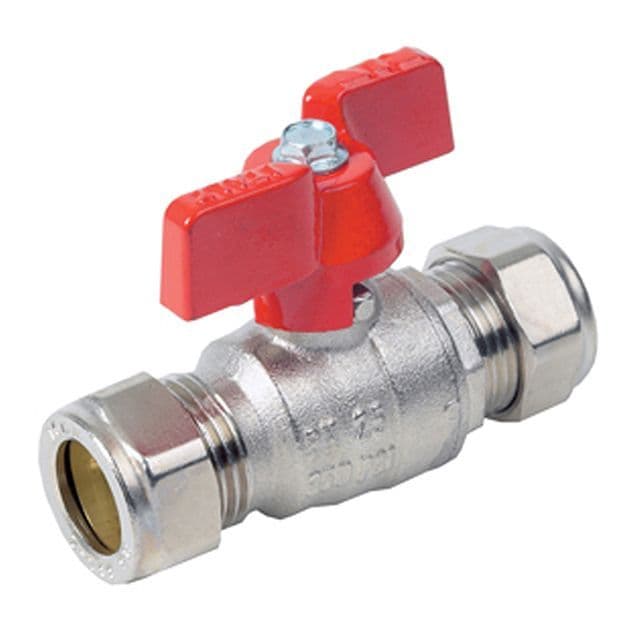

Overview of Brass Ball Valve Compression Ends Red Butterfly Handle WRAS Approved

Description
This compact brass ball valve features compression ends and a red butterfly handle, combining convenience and reliability in one WRAS-approved design. The nickel-plated brass body provides corrosion resistance, while the butterfly handle allows efficient operation in restricted spaces. Its full-bore construction ensures smooth flow and reliable sealing performance.

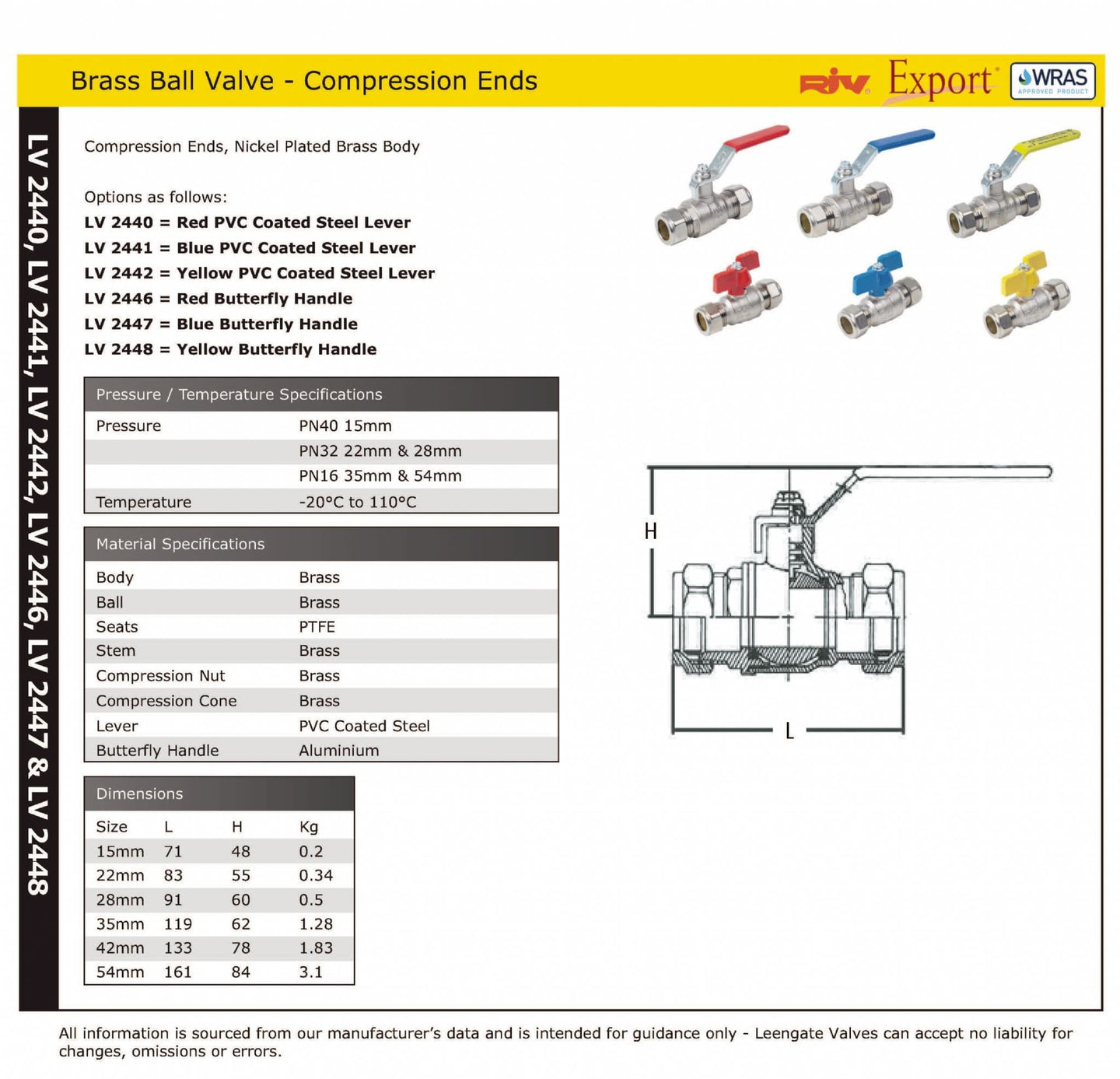

Technical Data

• Body Material: Chrome-plated brass
• End Connections: Compression ends (15mm28mm)
• Pressure Rating: PN40 (½), PN32 (¾ and 1)
• Temperature Range: 20 °C to +110 °C
• Approval: WRAS certified for potable water

Key Features

• Compact butterfly handle suited for tight installations
• Compression fittings simplify installation without soldering
• Full-bore flow passage reduces energy loss
• WRAS-approved for potable and general water systems

Installation & Application Notes
Verify tube insertion depth before tightening compression nuts. Allow adequate handle clearance for full operation. Recommended for use in confined water service areas, meter boxes, and compact plant installations.
