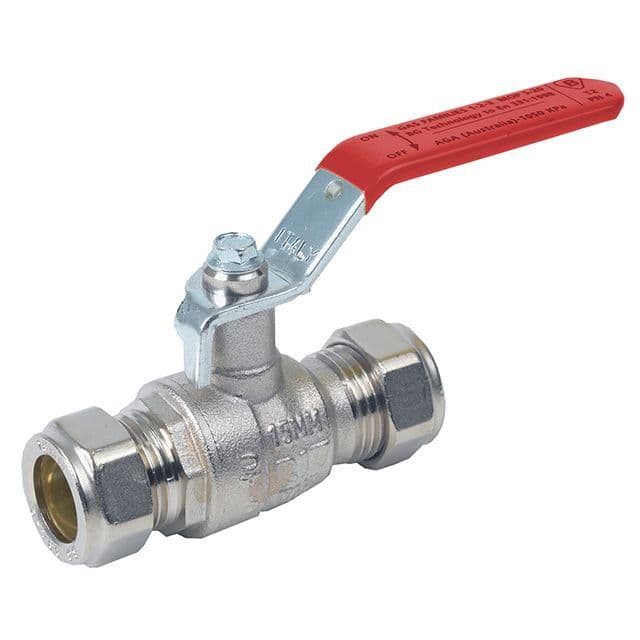

Overview of Brass Ball Valve Compression Ends Red Lever WRAS Approved

Description
This WRAS-approved brass ball valve with compression ends and a red lever handle delivers quick installation and dependable shut-off performance. The nickel-plated brass body provides corrosion resistance, while the compression fittings enable simple connection to copper pipework without threading. The full-bore design supports efficient fluid flow and minimizes pressure loss, making this valve ideal for domestic or light industrial water systems.

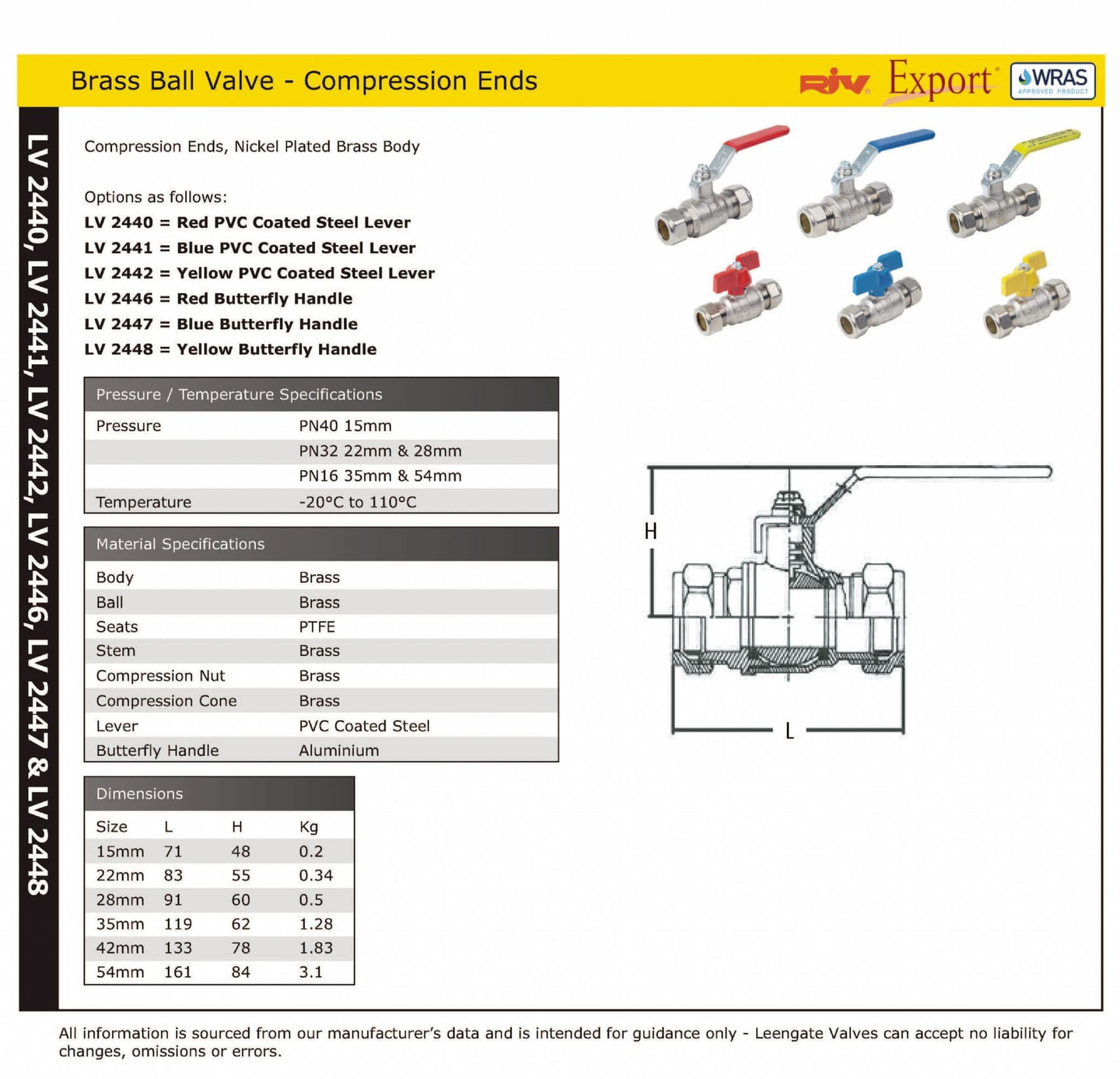

Technical Data

• Body Material: Nickel-plated brass
• End Connections: Compression ends (15mm, 22mm, 28mm)
• Pressure Rating: PN40 (15mm), PN32 (22mm & 28mm)
• Temperature Range: 20 °C to +110 °C
• Approval: WRAS certified for potable water

Key Features

• Red lever handle provides quick quarter-turn operation
• Compression ends allow easy installation without threads
• Full-bore passage minimizes flow restriction
• WRAS approval ensures compliance for drinking water systems

Installation & Application Notes
Ensure tubing is fully inserted into the compression fitting before tightening. Avoid over-torquing to maintain seat integrity. Suitable for hot and cold water supplies, heating loops, and general service lines requiring reliable shut-off.
