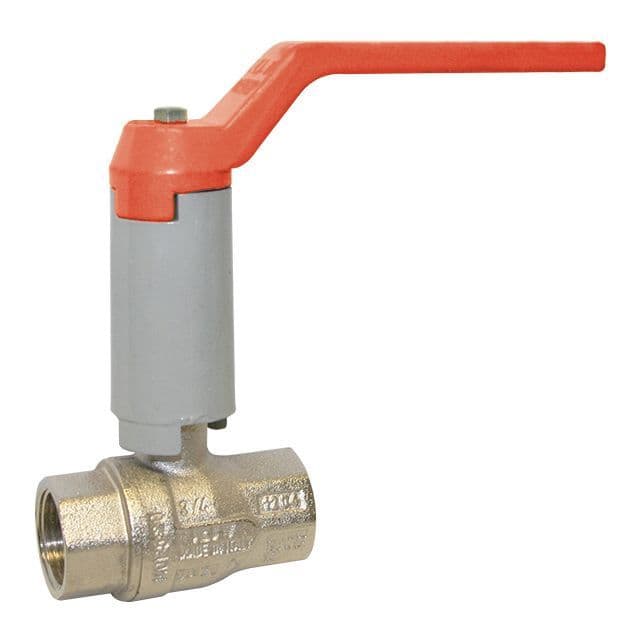

Brass Ball Valve Fitted with Neck Extension

This Brass Ball Valve with Neck Extension provides a reliable solution for water, heating, and general fluid control systems. The extended neck enables installation in insulated walls or recessed spaces, allowing easy access for operation and maintenance.

Manufactured from nickel-plated brass, this valve combines mechanical strength with corrosion resistance, ensuring a long service life even under demanding temperature conditions.

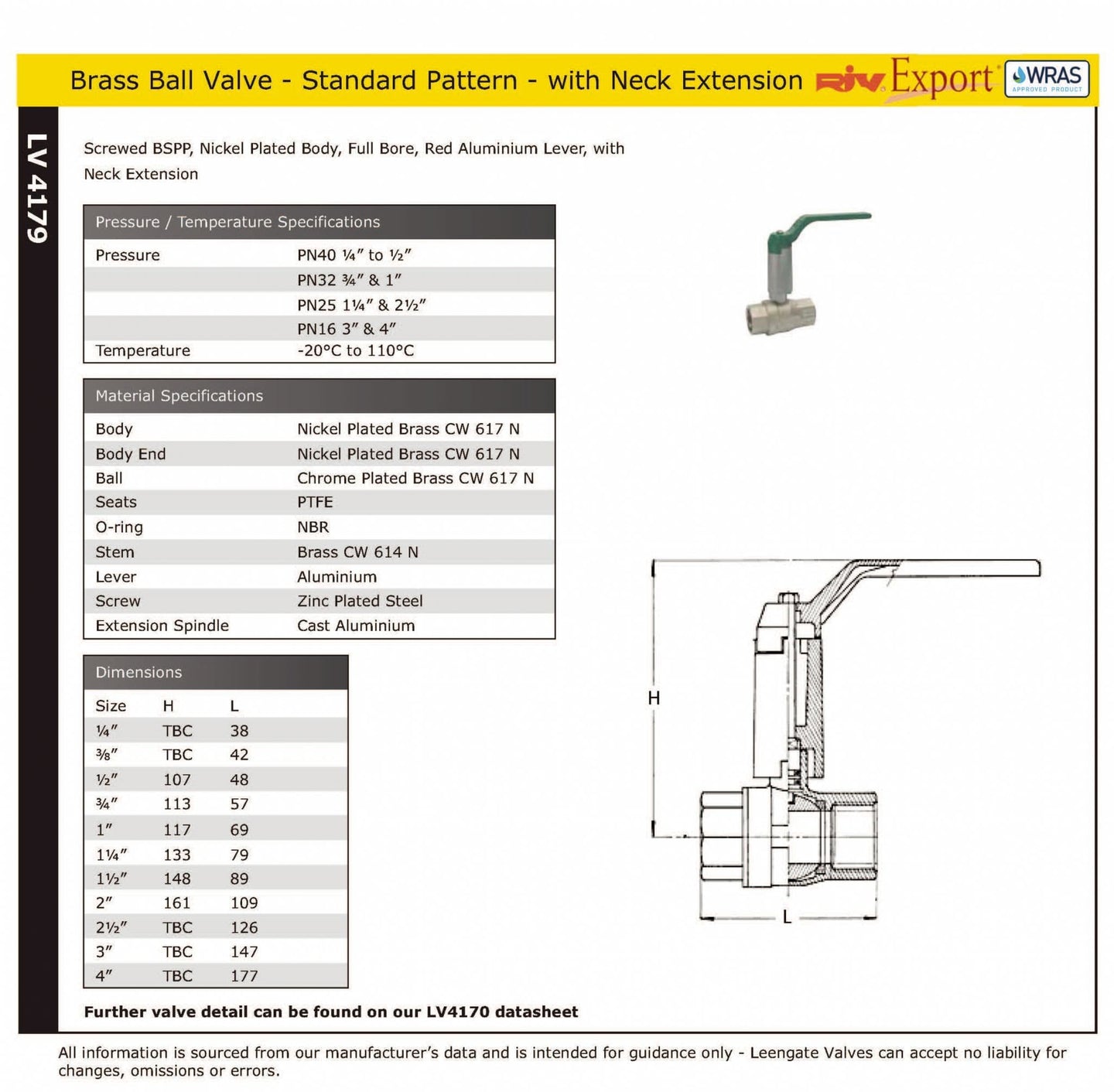

Technical Data:

• Material: Nickel-plated brass
• Connection Type: BSPT female × female
• Neck Extension: Fixed, for easier access
• Pressure Rating: Rated PN40 ¼ to ½, PN32 ¾ & 1, PN25 1¼ to 2½, PN16 3 & 4
• Temperature Range: 20°C to +110°C
• Design: Full-bore for maximum flow efficiency

Features & Advantages:

• Easy to operate in insulated or covered systems
• Full-bore design reduces pressure loss
• Corrosion-resistant and maintenance-free
• Suitable for water, oil, and low-pressure air

Typical Uses: Heating manifolds, plantrooms, utility services, and insulated pipe runs.
