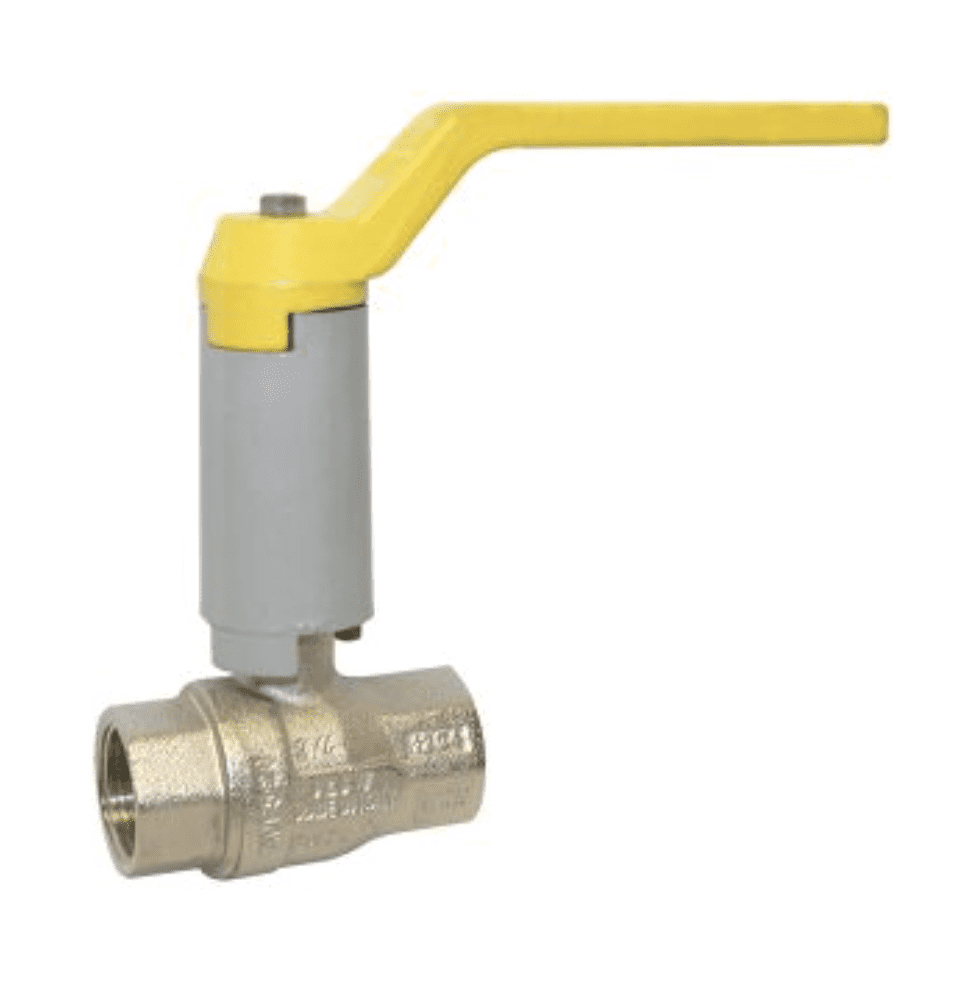

Brass Ball Valve Fitted with Neck Extension (BSI Gas Approved)

The Brass Ball Valve with Neck Extension BSI Gas Approved is designed specifically for gas installations that demand safety, durability, and easy accessibility. Featuring an extended neck for insulated or hard-to-reach installations, this high-quality brass valve provides dependable shut-off performance in gas systems.

Constructed from precision-engineered nickel-plated brass, it resists corrosion and temperature fluctuation. The BSI Gas approval guarantees compliance with UK safety standards, ensuring reliability in both domestic and industrial gas applications.

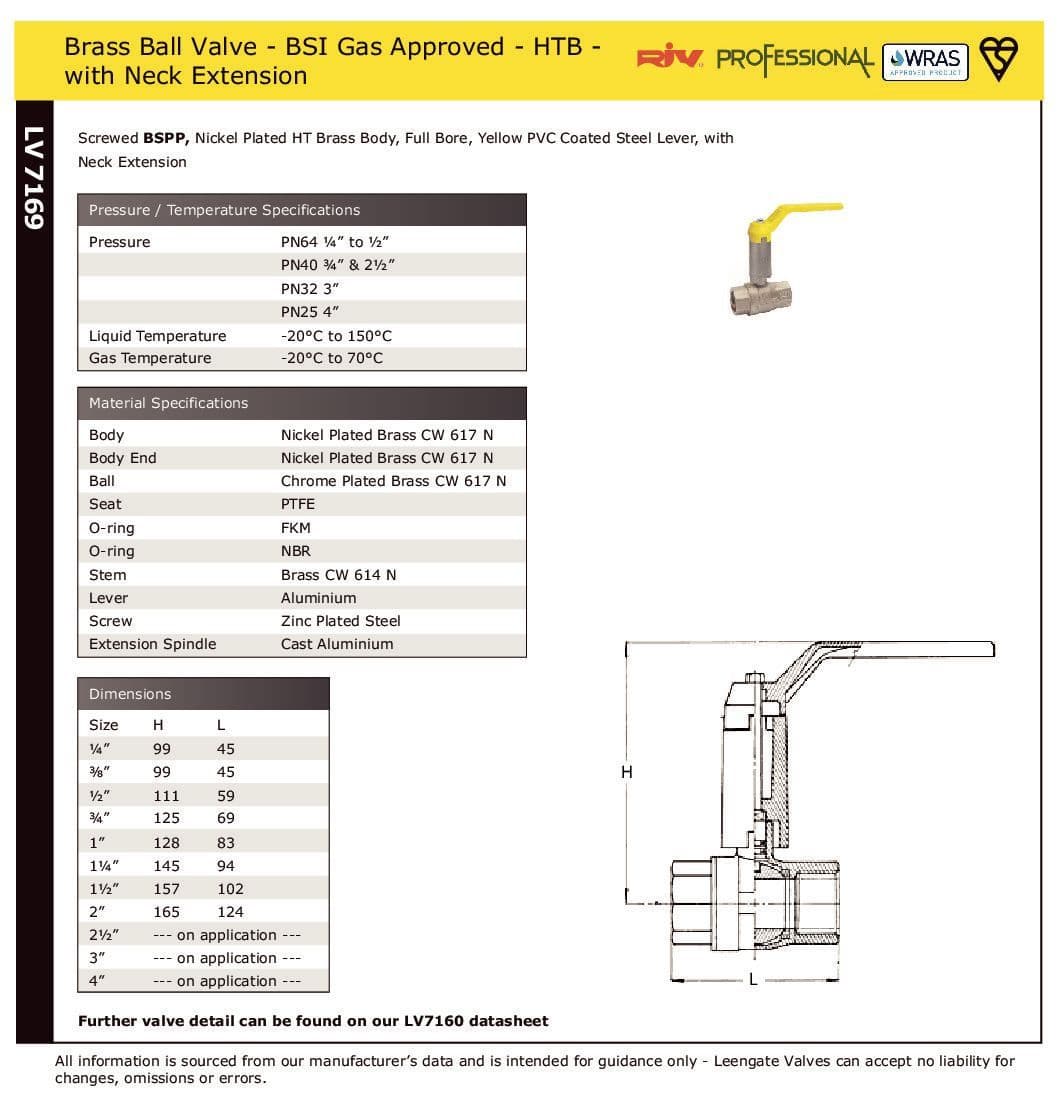

Technical Data:

• Body Material: Nickel-plated brass
• Neck: Fixed extension for improved access and insulation clearance
• Connection Type: BSPT female × female
• Pressure Rating: Rated PN64 ¼ to ½, PN40 ¾ to 2½, PN32 3 & PN25 4
• Temperature Range: 20°C to +150°C
• Certification: BSI Gas Approved
• Design: Full-bore for unrestricted flow

Key Benefits:

• Extended neck design allows safe operation through insulation layers
• Certified for gas use under BSI approval
• Robust brass construction for long life
• Ideal for concealed or recessed installations

Applications: Domestic and commercial gas lines, plant rooms, and heating systems.
