Overview of Brass Ball Valve ISO Top Low Torque

Description

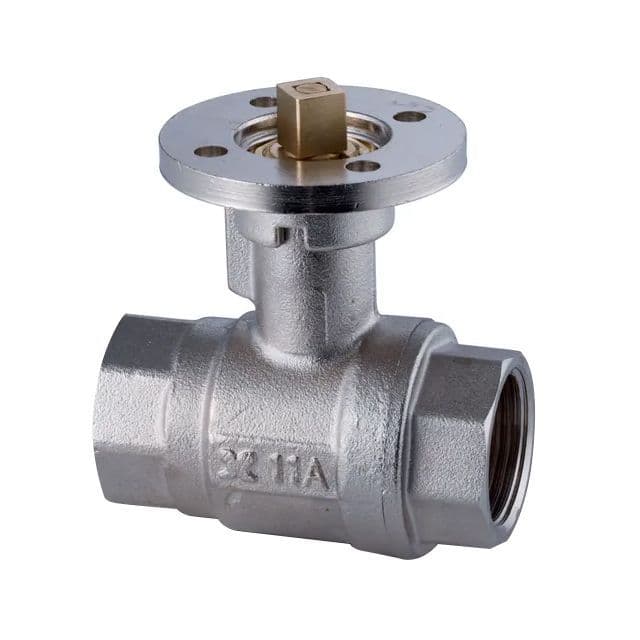

This ISO Top low-torque brass ball valve is designed for both manual and automated applications. The ISO 5211 mounting pad allows direct installation of electric or pneumatic actuators without additional brackets. Its low-torque design ensures smooth operation, reducing actuator size and energy consumption. The valves nickel-plated brass construction offers superior corrosion resistance and a long operational life.

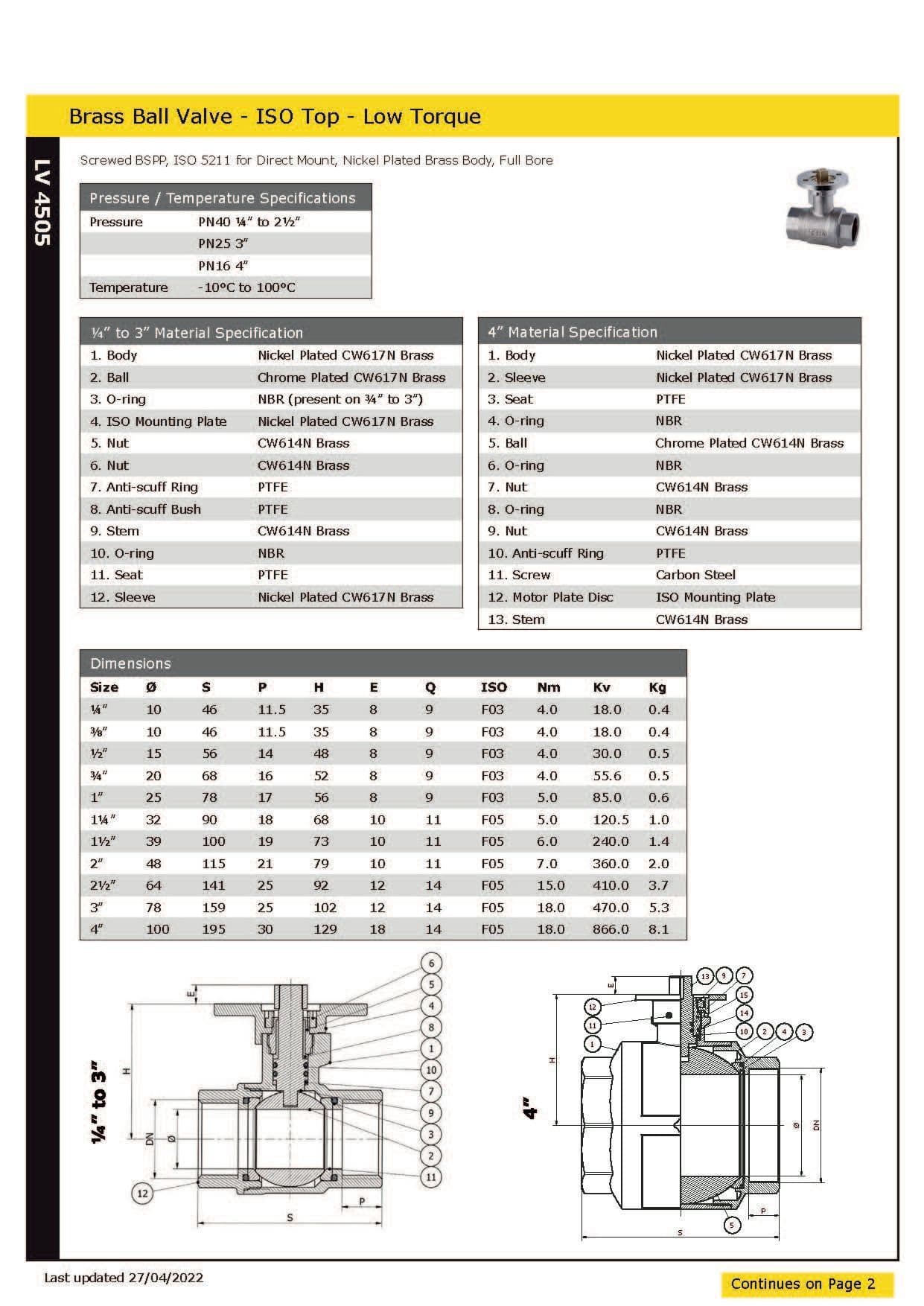

Technical Data

• Body Material: Nickel-plated forged brass
• Ball Material: Chrome-plated brass
• Seats: PTFE
• Mounting Standard: ISO 5211 direct actuator pad
• End Connections: Female BSPP threaded
• Pressure Rating: PN40 (¼2½), PN25 (3), PN16 (4)
• Temperature Range: 10 °C to +100 °C

Key Features

• ISO 5211 actuator mount for easy automation
• Low-torque operation for efficient manual or automated use
• Full-bore design for minimal pressure drop
• Compact, corrosion-resistant construction

Installation & Application Notes
When installing, align the actuator correctly with the ISO 5211 pad. For manual systems, ensure unobstructed handle operation. The valve is ideal for water, air, and process control applications where future automation may be required.
