Overview of Brass Ball Valve ISO Top WRAS Approved

Description

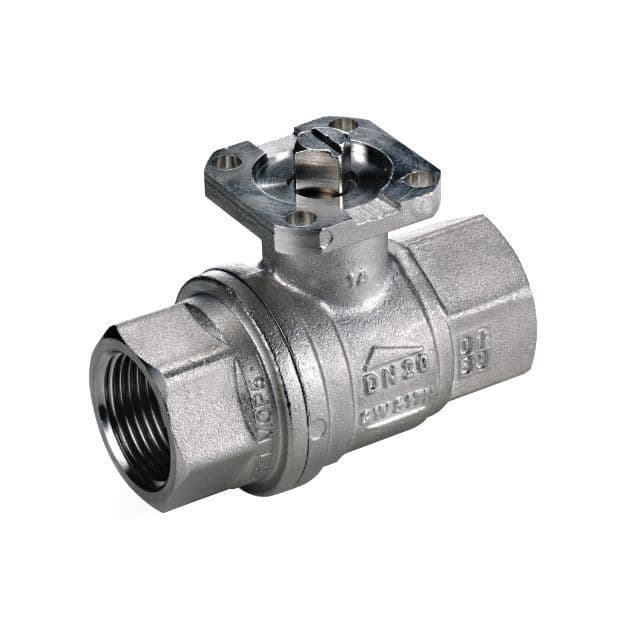

This WRAS-approved ISO Top brass ball valve is specifically designed for potable water and hygienic applications. It features a nickel-plated body, reinforced PTFE seats, and ISO 5211 top mounting for actuator integration. Offering both durability and compliance, it is ideal for water treatment, plumbing, and automated system control.

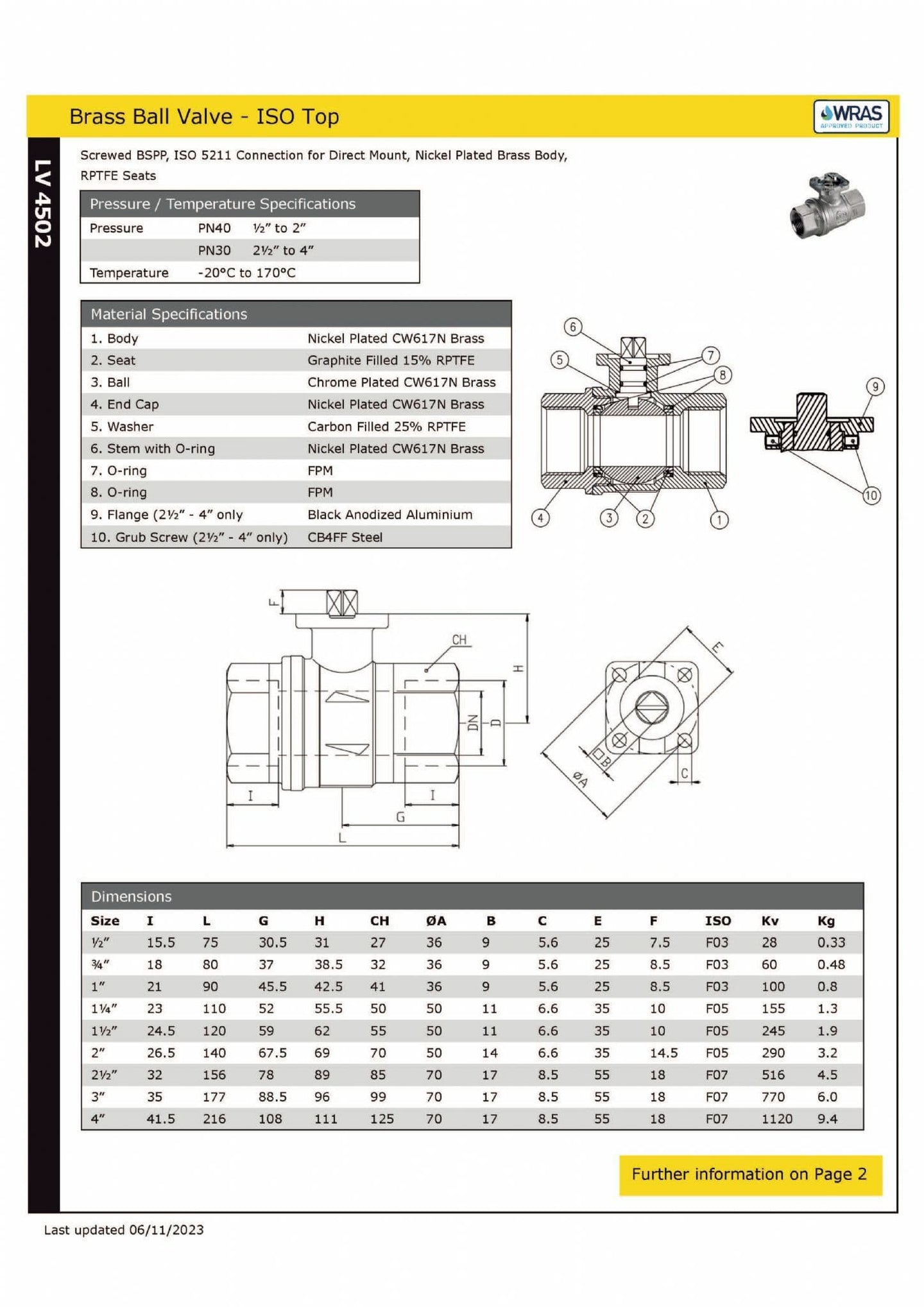

Technical Data

• Body Material: Nickel-plated brass
• Seats: Reinforced PTFE (RPTFE)
• End Connections: Female BSPP threaded
• Mounting Standard: ISO 5211 actuator pad
• Pressure Rating: PN40 (½2), PN30 (2½4)
• Temperature Range: 20 °C to +170 °C

Key Features

• Fully WRAS approved for potable water use
• ISO 5211 mounting for automation compatibility
• Reinforced PTFE seats for high pressure and temperature performance
• Nickel-plated finish for superior corrosion resistance

Installation & Application Notes
Flush pipelines prior to installation to prevent debris from damaging the RPTFE seats. Install with handle or actuator positioned for clear access. Suitable for water supply, purification systems, and any installation requiring WRAS certification and long-term reliability.
