Overview of Brass Ball Valve Male Union End Lever Operated WRAS Approved

Description

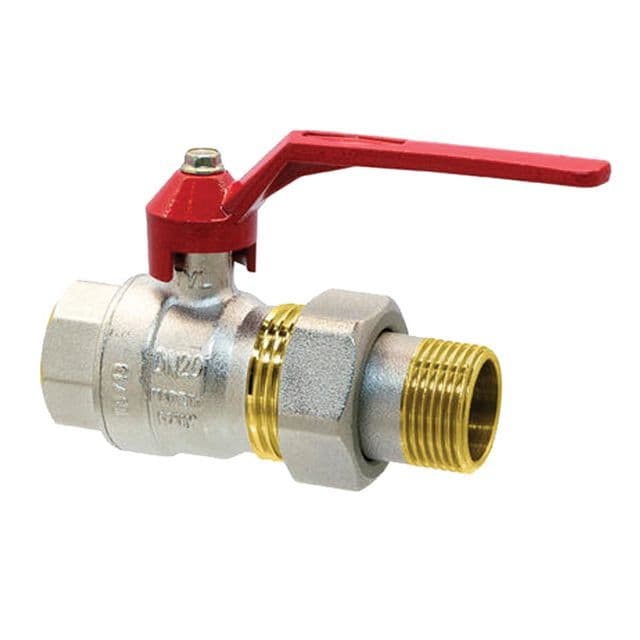

This WRAS-approved brass ball valve with male union end and lever handle is designed for potable water systems and general industrial use. The union connection allows for quick disassembly and maintenance without removing adjacent piping. Its nickel-plated brass body provides superior corrosion resistance, while the full-bore design ensures smooth, unrestricted flow with minimal pressure loss. The red lever handle provides precise control and clear visual indication of the valve position.

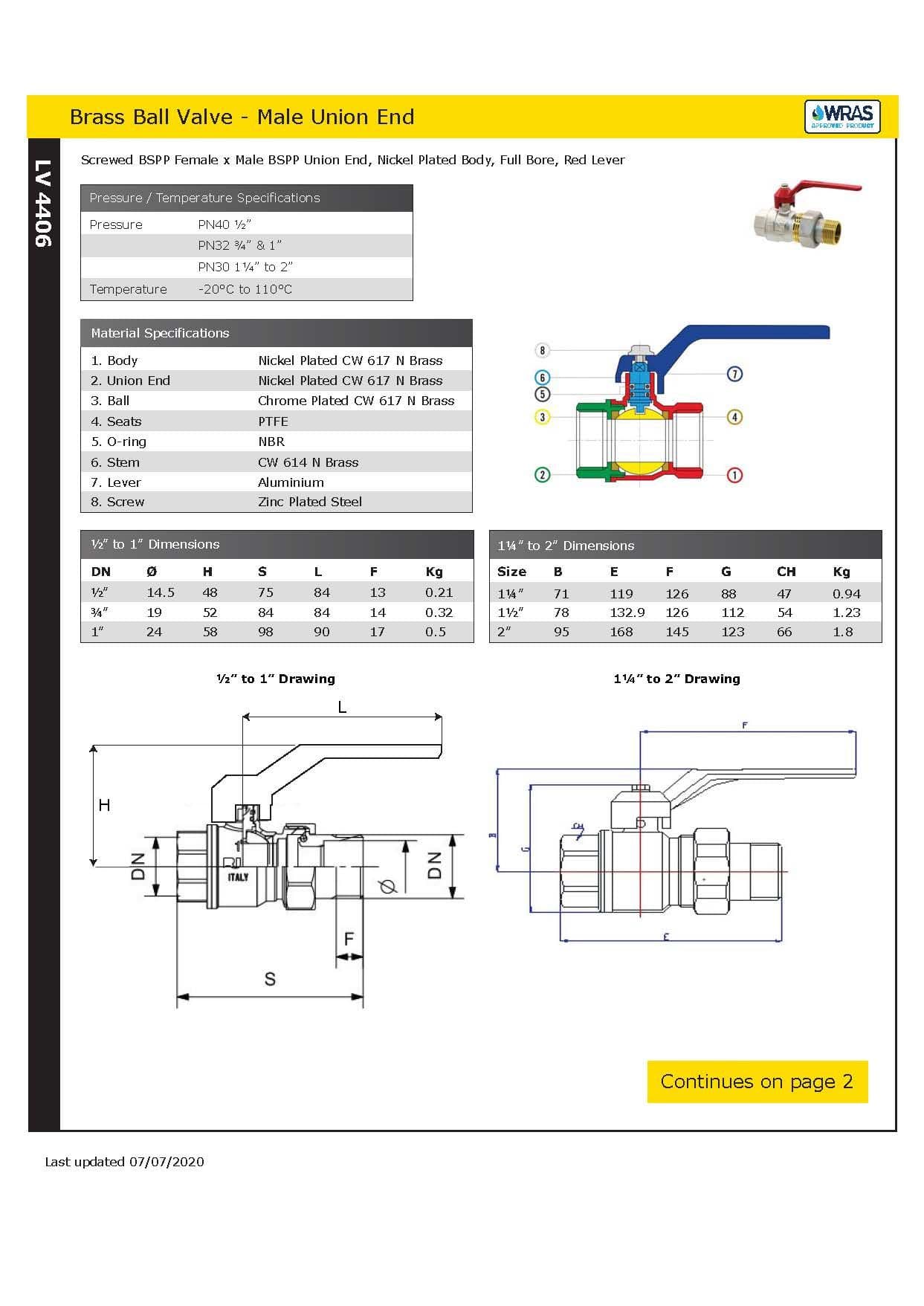

Technical Data

• Body Material: Nickel-plated brass
• End Connections: Female BSPP union × Male BSPP union
• Flow Type: Full bore

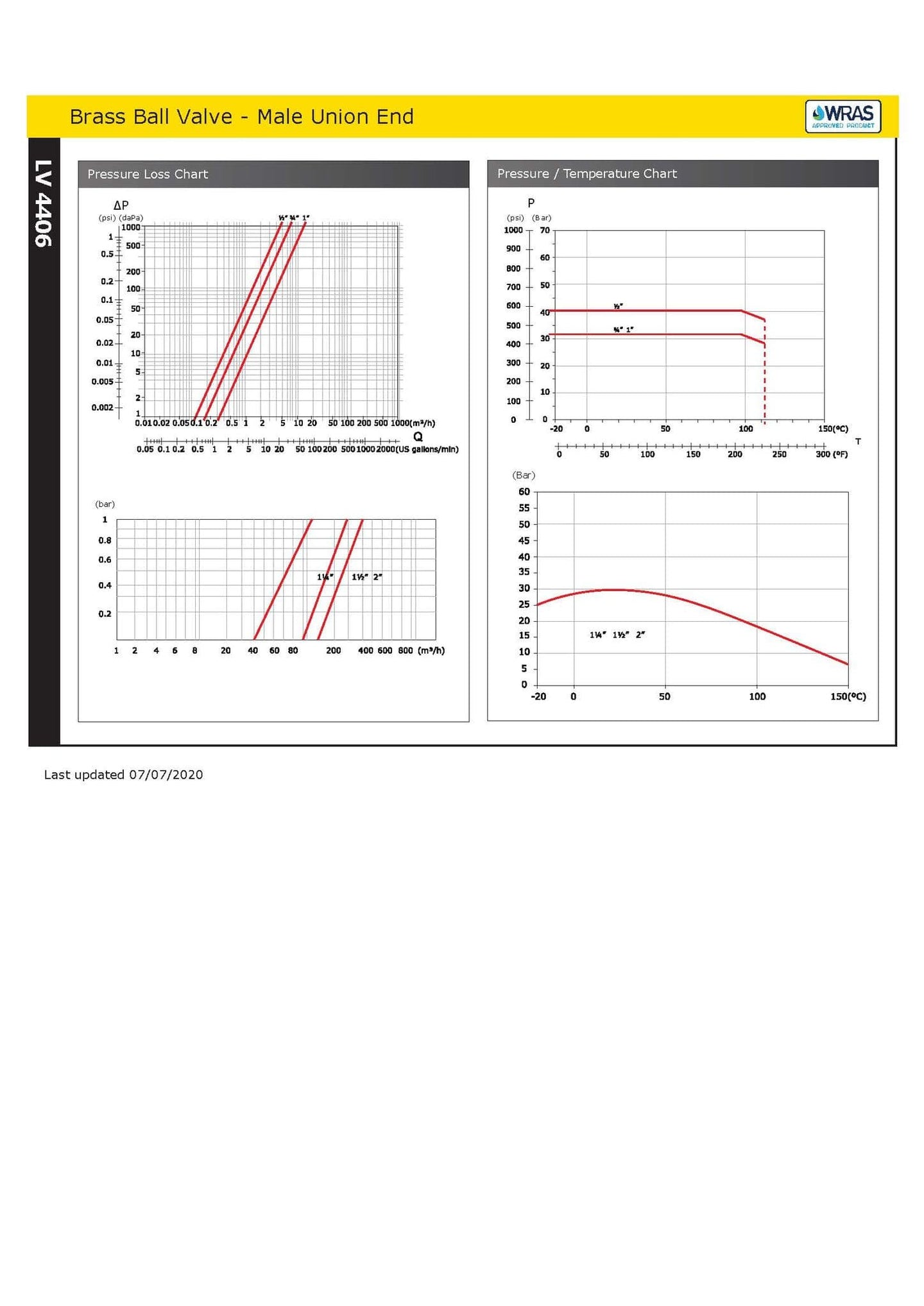

• Pressure Rating: PN40 for ½, PN32 for ¾ and 1, PN30 for 1¼2
• Temperature Range: 20 °C to +110 °C

Key Features

• WRAS certification for potable water applications
• Union design allows maintenance without full pipeline removal
• Full-bore ball for maximum flow efficiency
• Nickel-plated body provides long-term corrosion protection

Installation & Application Notes
Use appropriate sealing tape or compound on BSPP threads and ensure proper alignment to avoid mechanical stress. This valve is ideal for water distribution, heating, and process applications where WRAS approval and easy service access are required.
