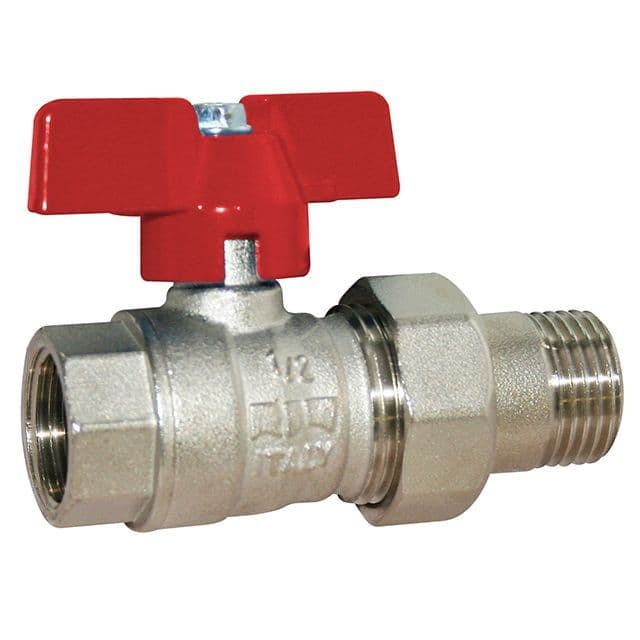

Overview of Brass Ball Valve Male Union End Red Butterfly Handle WRAS Approved

Description
This male union end brass ball valve is designed for easy maintenance and reliable service in potable water systems. Its union end allows quick valve removal without dismantling adjoining pipework, saving time during maintenance or replacement. The red butterfly handle provides positive control and clear visual indication of valve position. With a chrome-plated brass body and PTFE seats, this valve offers excellent durability and WRAS-approved compliance.

Technical Data

• Body Material: Chrome-plated brass
• End Connections: Male union end with BSPT thread
• Flow Type: Full bore
• Pressure Rating: PN40 (½1)
• Temperature Range: 20 °C to +110 °C
• Approval: WRAS certified for potable water

Key Features

• Union end enables valve removal without full disassembly
• Red butterfly handle allows easy identification and control
• Full-bore design maintains optimal flow efficiency
• WRAS approved for use in drinking water applications

Installation & Application Notes
Install with the union end accessible for servicing. Use PTFE tape or potable sealant for secure threading. Ideal for water meters, service valves, or systems requiring quick maintenance access without system interruption.
