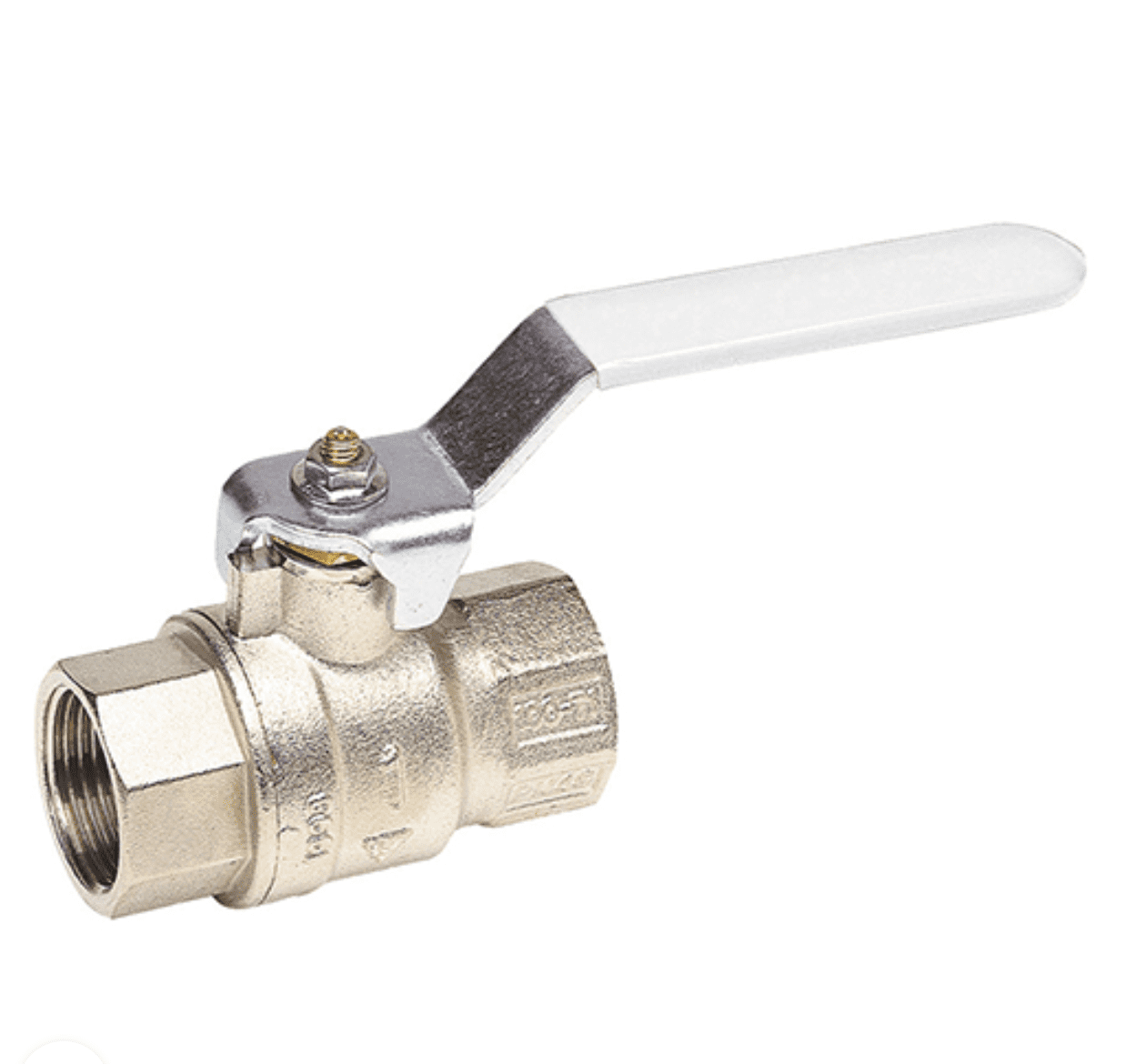

Brass Ball Valve Screwed BSPT White Lever

This brass ball valve with BSPT screwed connections and a white lever handle offers simplicity, reliability and visual distinction in multipipeline installations. The white handle is ideal where neutral or general service pipelines need identification, while brass build and fullbore design support smooth operation.


Technical Data:

• Body material: Brass (nickelplated or basic)
• Connection type: Screwed BSPT female threads (British Standard Pipe Taper)
• Handle: White lever for system identification
• Flow path: Fullbore ball design
• Pressure rating: Rated PN40 1/2" to 1", PN25 1 1/4" to 2"
• Temperature range: 10°C to +110°C
• Seat & seal materials: PTFE seats, NBR/Viton Orings


Features:

• White lever provides neutral colour coding for general service lines
• BSPT screwed connections support many UK/imperial installations
• Brass body and fullbore design help maintain flow and minimize maintenance


Applications: General water lines, plant room systems, mixedmedia pipelines where colour tagging is useful.
