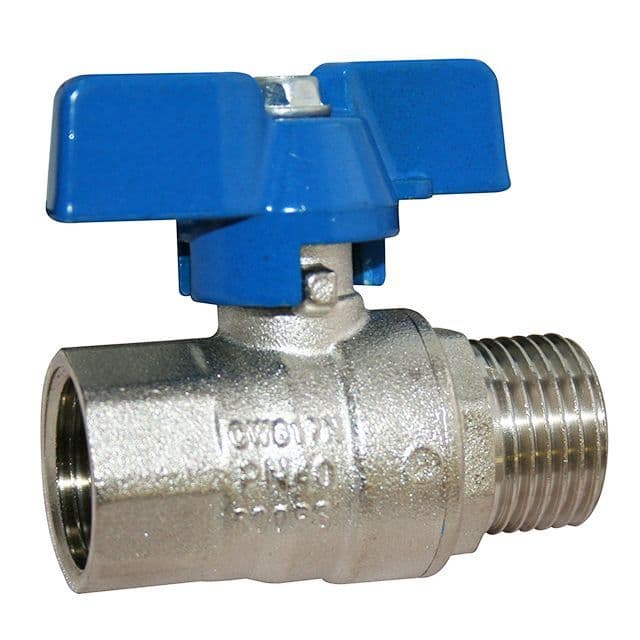

Brass Ball Valve Standard Pattern, Male × Female, Blue Butterfly Handle

The Blue Butterfly Handle Brass Ball Valve Standard Pattern provides a compact and durable shut-off solution for fluid systems requiring colour-coded identification. The blue handle makes it ideal for distinguishing between hot and cold water lines or different fluid types.

With a nickel-plated brass body, it offers excellent resistance to corrosion and mechanical stress. Its full-bore design ensures consistent flow rates and minimal pressure drop.

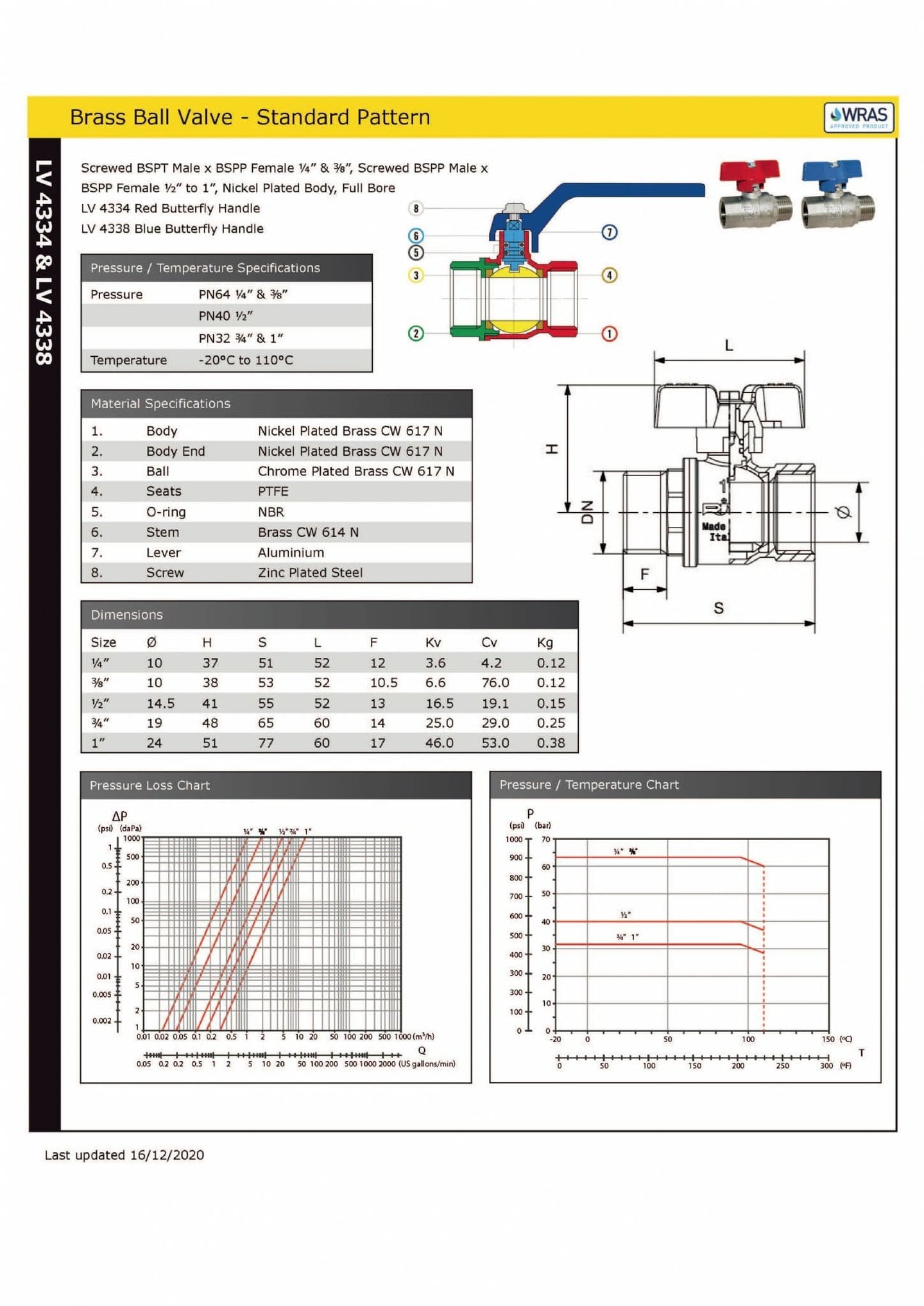

Technical Data

• Material: Nickel-plated brass
• Handle: Blue aluminium butterfly
• Connection Type: Male × Female BSP
• Operating Pressure: Rated PN64 ¼, PN40 ½, PN32 ¾ & 1
• Temperature Range: 20°C to +110°C
• Design: Full-bore ball for unrestricted flow
• Size Range: ¼ to 4

Product Highlights

• Colour-coded blue handle for easy system ID
• Space-saving butterfly handle for confined installations
• Smooth quarter-turn control
• Corrosion-resistant construction for long service life

Ideal for: Plumbing, water treatment, HVAC, and low-clearance system layouts.
