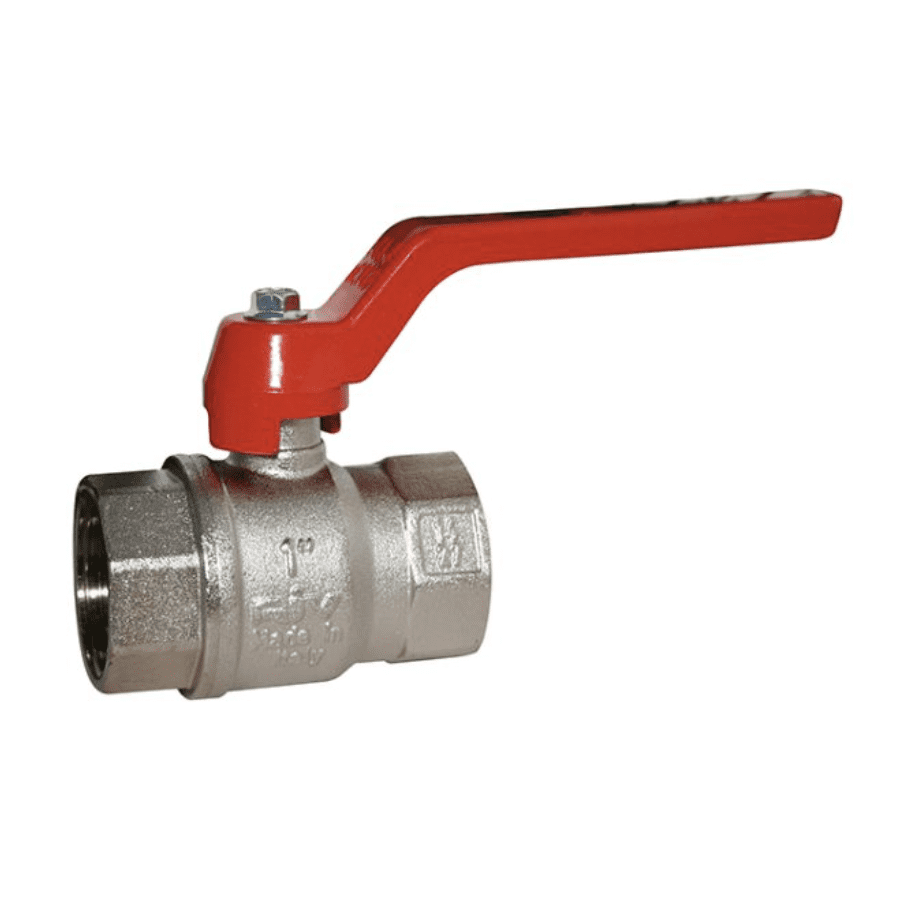

Brass Ball Valve Standard Pattern, Red Aluminium Lever (WRAS Approved)

The Standard Pattern Brass Ball Valve with Red Aluminium Lever provides a reliable and certified shut-off solution for potable water systems. With its WRAS approval, it meets stringent UK water standards, making it suitable for drinking water and sanitary applications.

Crafted from high-grade nickel-plated brass, it ensures corrosion resistance and durability, while the red anodised aluminium lever offers easy operation and identification.

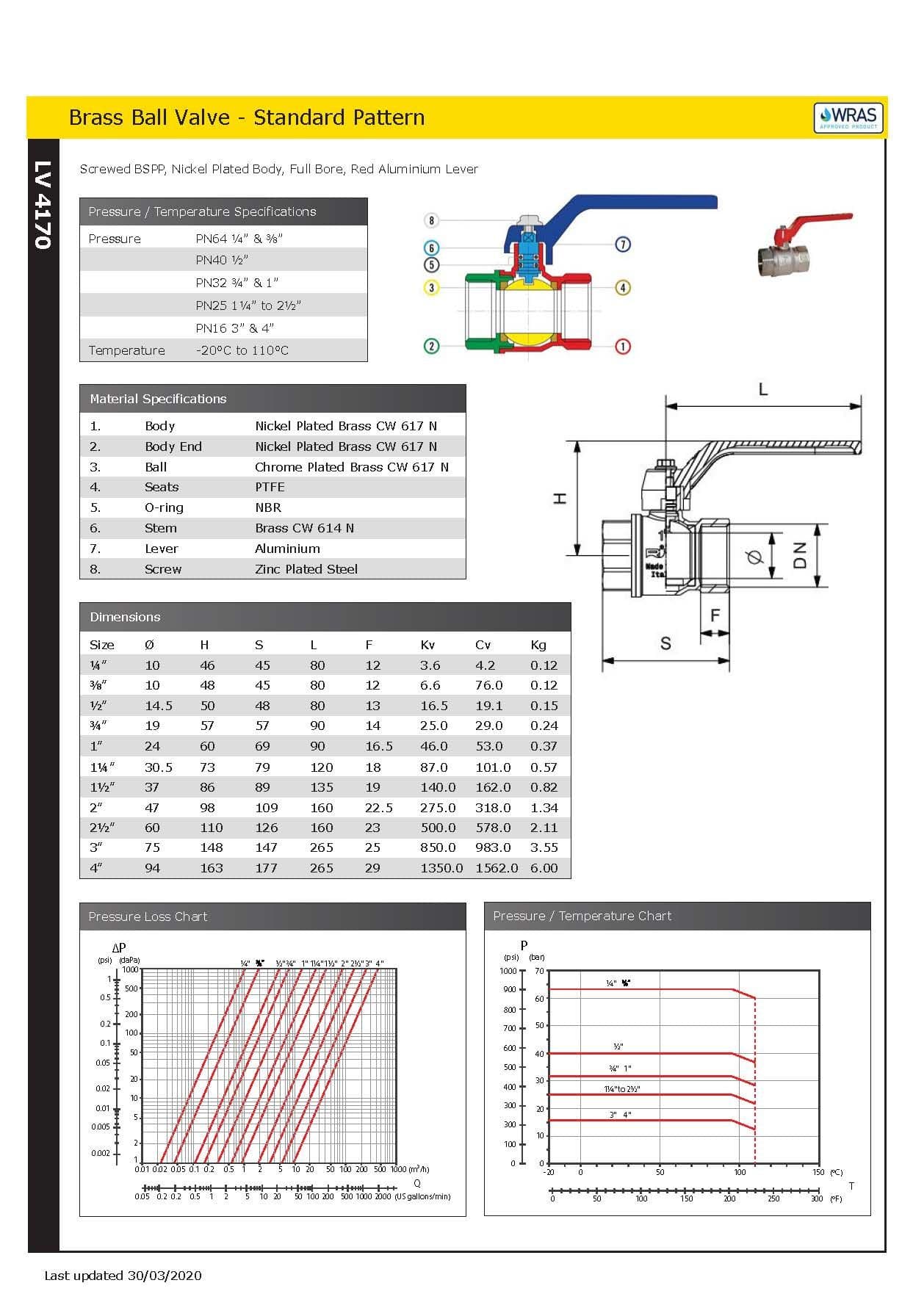

Technical Data

• Material: Nickel-plated brass body
• Handle: Red aluminium lever
• Connections: BSPP female both ends
• Pressure Rating: Rated PN64 ¼, PN40 ½, PN32 ¾ & 1, PN25 1¼ to 2½, PN16 3 & 4
• Temperature Range: 20°C to +110°C
• Design: Full-bore, quarter-turn shut-off
• Certification: WRAS Approved

Advantages

• Lightweight yet strong lever for ease of use
• Long-lasting brass body with anti-corrosion coating
• Designed for potable water and HVAC systems
• Low-maintenance and quick to install

Typical Uses: Domestic and commercial plumbing, water distribution, and heating circuits.
