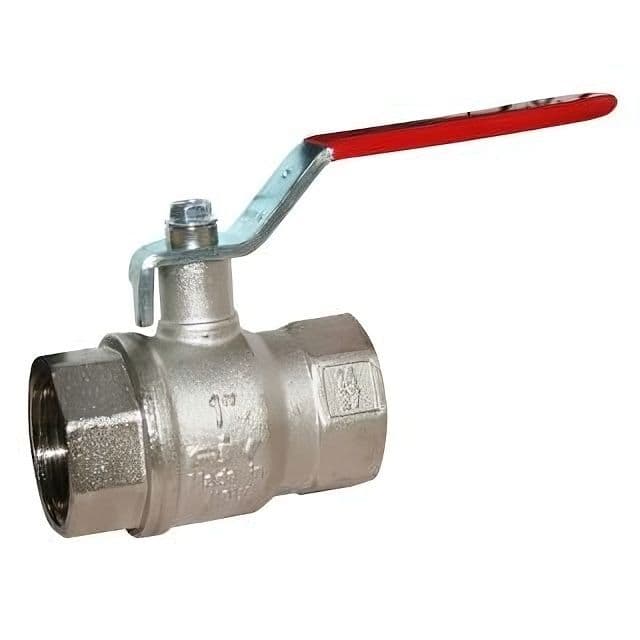

Brass Ball Valve Standard Pattern, Red PVC-Coated Steel Lever (WRAS Approved)

Engineered for strength and compliance, the Brass Ball Valve Standard Pattern with Red PVC-Coated Steel Lever provides robust flow control for potable water and industrial systems. The PVC-coated handle enhances grip and durability, even in demanding environments.

Built with nickel-plated brass and featuring a full-bore design, this valve delivers smooth, unrestricted flow. Fully WRAS approved, it ensures suitability for drinking water systems across commercial and residential projects.

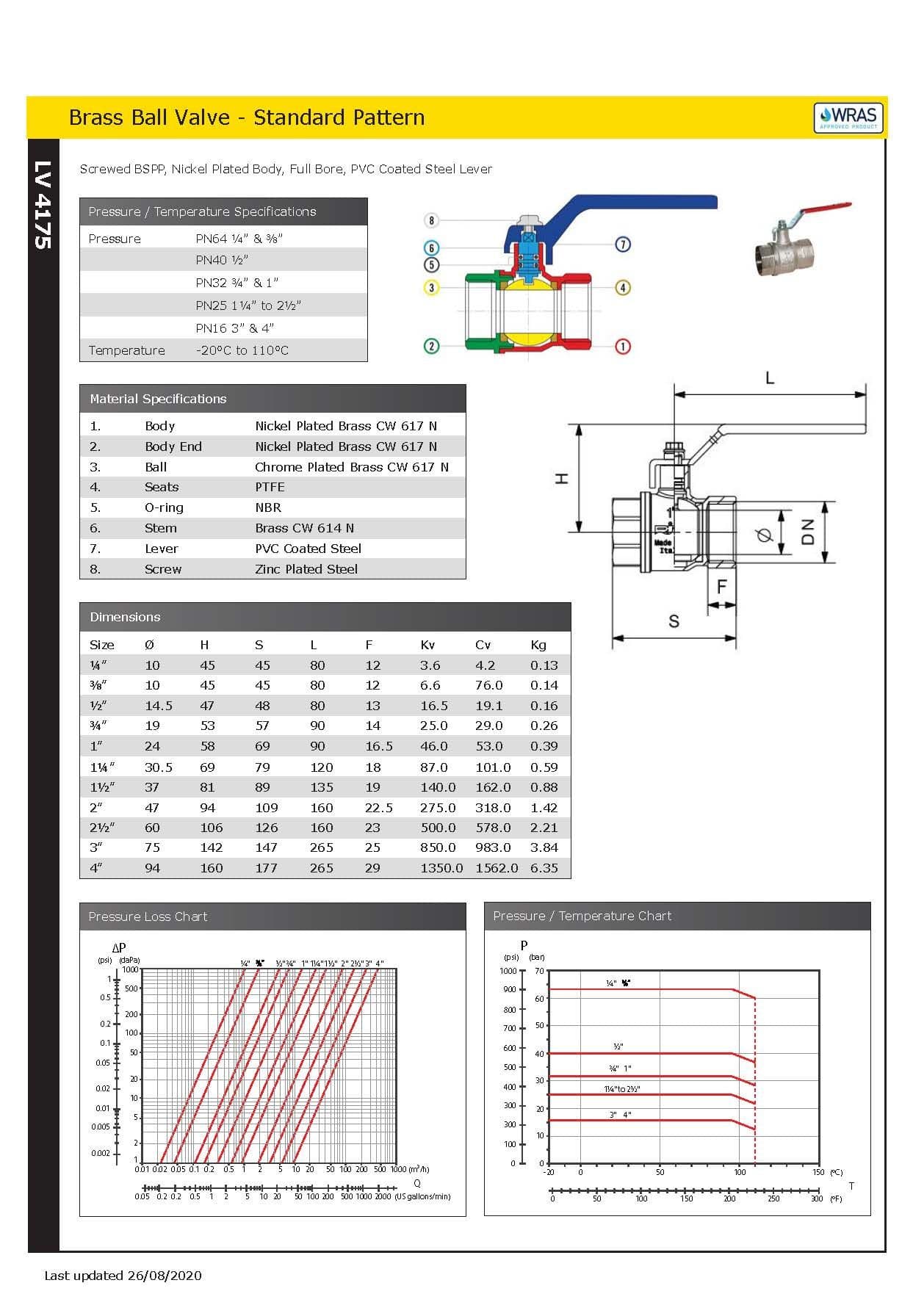

Technical Data

• Body: Nickel-plated brass
• Handle: Red PVC-coated steel lever
• Connections: BSPP female both ends
• Pressure Rating: Rated PN64 ¼, PN40 ½, PN32 ¾ & 1, PN25 1¼ to 2½, PN16 3 & 4
• Temperature Range: 20°C to +110°C
• Design: Full-bore, leak-free ball design
• Certification: WRAS Approved

Key Features

• High-strength handle with ergonomic grip
• Long service life with corrosion-resistant materials
• Suitable for hot and cold water systems
• Easy to install and maintain

Best for: Potable water supply, HVAC, and industrial pipelines requiring certified quality.
