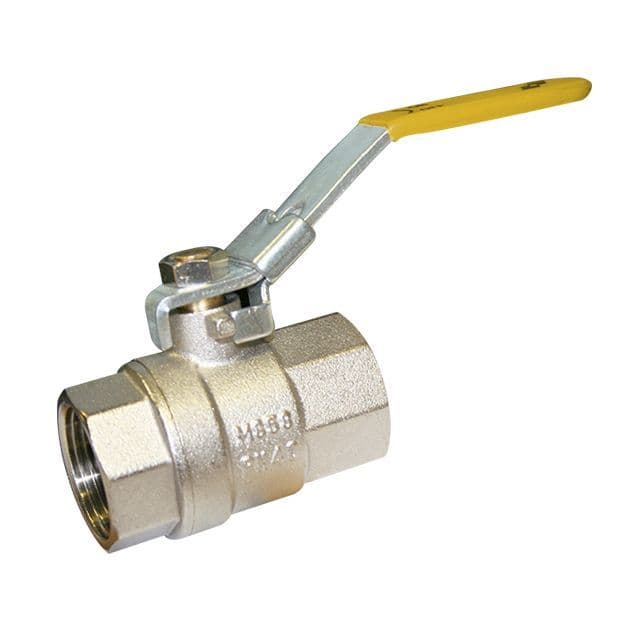

Brass Ball Valve With Locking Yellow Lever (BSPT)

The Brass Ball Valve with Locking Yellow Lever is purpose-built for gas isolation systems where operator safety and compliance are key. The yellow lever denotes gas service and includes a locking feature to prevent unauthorised operation, ensuring a secure shut-off in all conditions.

Constructed from nickel-plated brass, the valve offers corrosion resistance and reliability, suitable for industrial and domestic gas installations.

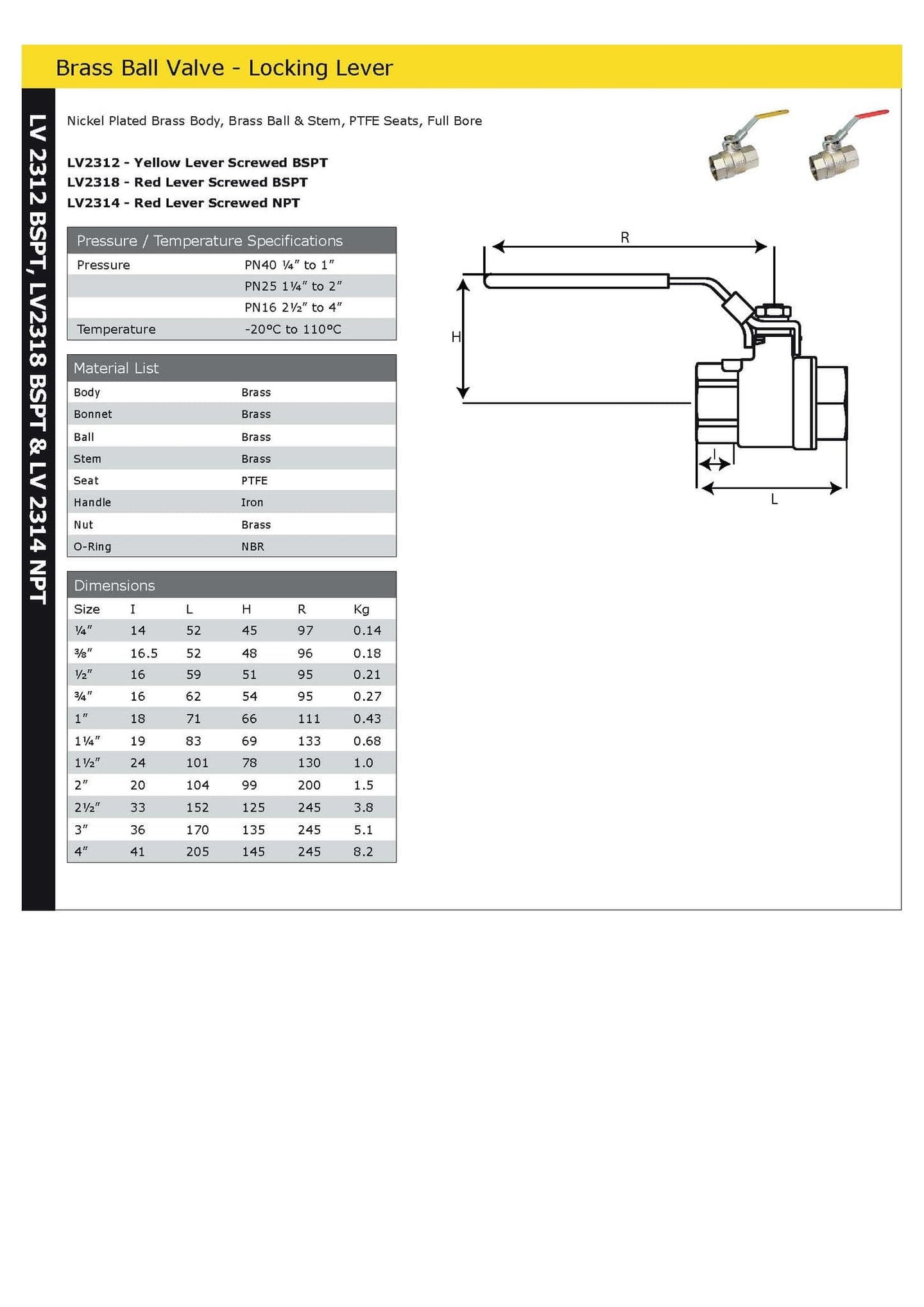

Technical Data:

• Body Material: Nickel-plated brass
• Handle: Yellow steel lever with locking mechanism
• Connection Type: BSPT female × female
• Pressure Rating: Rated PN40 ¼ to 1, PN25 1¼ to 2, PN16 2½ to 4
• Temperature Range: 20°C to +110°C
• Design: Full-bore construction for high flow efficiency

Key Benefits:

• Lockable handle for improved safety and compliance
• Yellow lever for gas identification
• Robust build for demanding environments
• Suitable for gas and heating systems

Applications: Gas pipework, boiler isolation, and industrial process lines.
