Overview of Brass Mini Ball Valve Female × Female Screwdriver-Operated WRAS Approved

Description

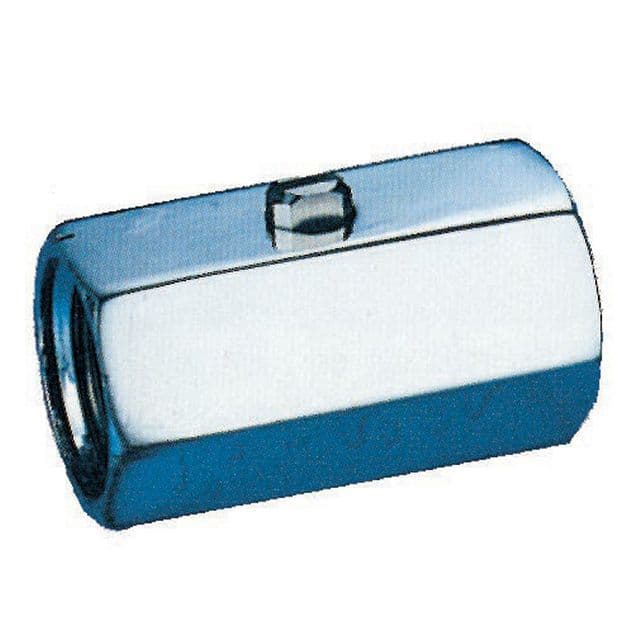

Optimised for small-bore pipework and hidden installations, this brass mini ball valve offers female × female connections and a screwdriver actuator for discreet operation. WRAS approved and chrome-plated for corrosion resistance, it fits well into potable water systems and tight-space applications behind panels or cabinets. The nickel-plated brass body ensures longevity, while the full-bore ball offers efficient flow.

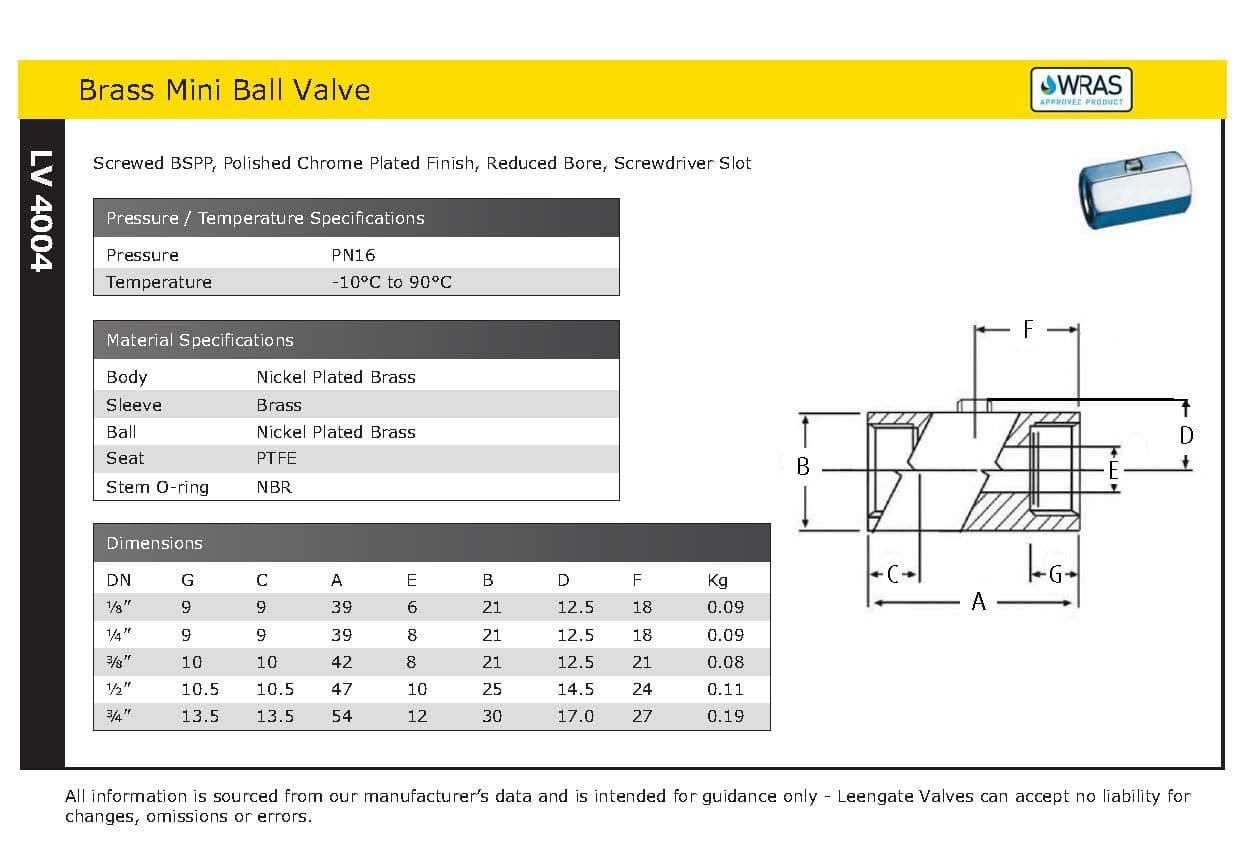

Technical Data

• Body Material: Chrome-plated brass
• End Connections: Female BSPP × Female BSPP
• Actuation: Screwdriver slot for low-profile installation
• Seat Material: PTFE
• Seal Material: NBR
• Pressure Rating: PN16 (~16 bar)
• Temperature Range: 10 °C to +90 °C
• Certification: WRAS approved for drinking water

Key Features

• WRAS certification for potable water service
• Screwdriver-operated actuator for discreet access
• Chrome-plated brass body for corrosion protection
• Compact mini size for instrumentation or hidden plumbing

Installation & Application Notes
Ensure secure mounting in panel or cabinet with handle access slot. Use sealed threads and torque correctly to avoid leaks. Suitable for concealed plumbing, heating systems, and service closets where manual access is limited.
