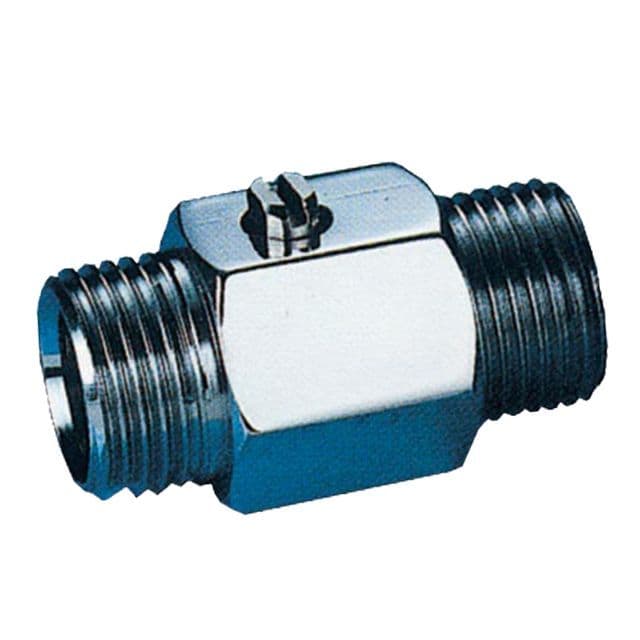

Overview of Brass Mini Ball Valve Male × Male Chromed Finish Screwdriver-Operated WRAS Approved

Description
This chrome-plated brass mini ball valve combines male × male connections, screwdriver actuation, and WRAS certification in a highly compact form. Suited to small tape-in, machine-mounted or service cupboard installations, it offers reliable shut-off in tight clearances. The full-bore design provides efficient flow, and the WRAS approval ensures suitability for potable applications.

Technical Data

• Body Material: Chrome-plated brass
• End Connections: Male BSPT × Male BSPT
• Actuation: Screwdriver slot
• Seat Material: PTFE
• Seal Material: NBR
• Pressure Rating: PN16 (~16 bar)
• Temperature Range: 10 °C to +90 °C
• Certification: WRAS approved

Key Features

• Compact male × male format for tight installations
• Screwdriver actuation reduces clearance requirements
• Chrome-plated, WRAS-approved design suitable for potable water
• Full-bore ball ensures consistent flow capacity

Installation & Application Notes
Ensure male threads align with system piping, and apply potable-approved sealant. Maintain access to screwdriver slot during installation in restricted cabinetry or machine panels. Suitable for concealed plumbing service points, water filters, and compact metering consoles.
