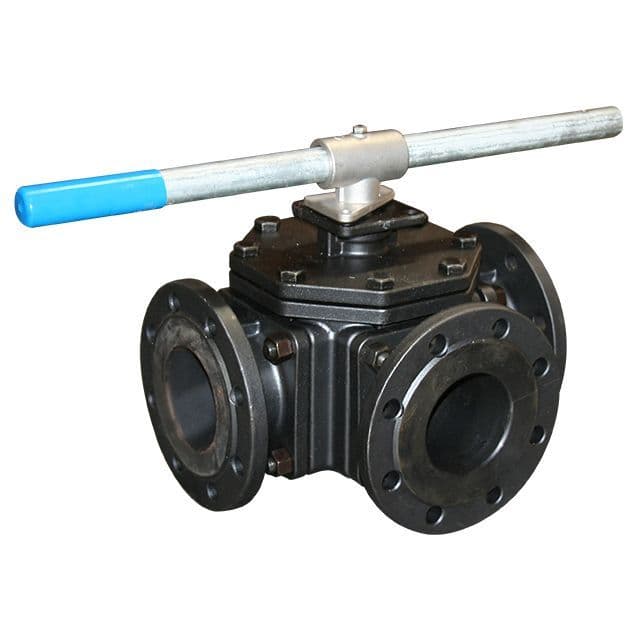

Carbon Steel 3Way Ball Valve TPort, ISOTop

This threeway carbon steel ball valve with Tport configuration and ISOTop pad provides flowrouting flexibility alongside automation readiness. It enables one inlet to feed two outlets or two inlets to merge into one outletideal for mixing or diverting applications.

Technical Data:

• Body Material: Carbon steel
• Port Configuration: Tport three flow paths configurable
• Mounting: ISO5211 pad for actuator interface
• End Connections: Typically threaded or flanged, size dependent
• Flow Design: Fullbore ball design for optimal flow
• Typical Pressure Rating: PN16
• Temperature Range: 29°C to +180°C (seal dependent)
• Seal/Seat Material: Standard PTFE - TFM 1600

Features:

• Flexible flow routing in a single valve body (divert or mix)
• ISO pad ready for actuator mounting without valve replacement
• Robust carbon steel construction for industrial settings
• Reduce valve count and piping complexity with one multiport device

Applications: HVAC manifolds, fluid diversion systems, process mixing stations, automated piping networks
