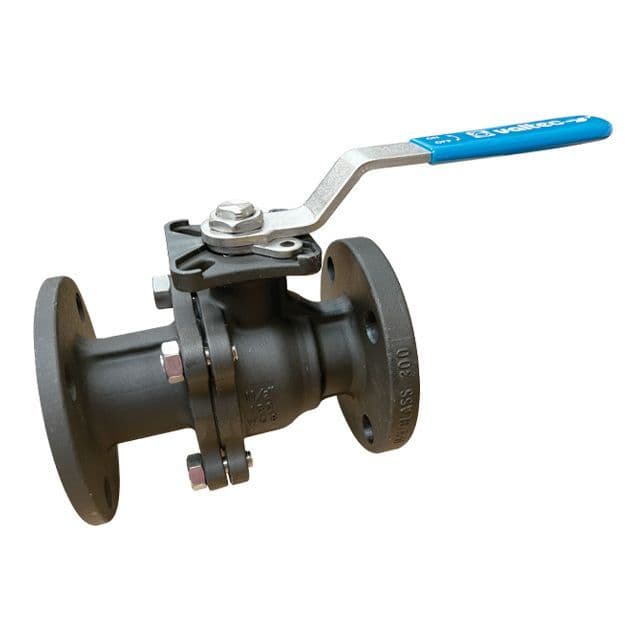

Carbon Steel Ball Valve Flanged ANSI300, ISOTop

For highcapacity systems, this carbon steel ball valve offers flanged ANSI300 connections along with an ISOTop mount for actuation. Its engineered to handle elevated pressures while remaining servicefriendly and automationready.

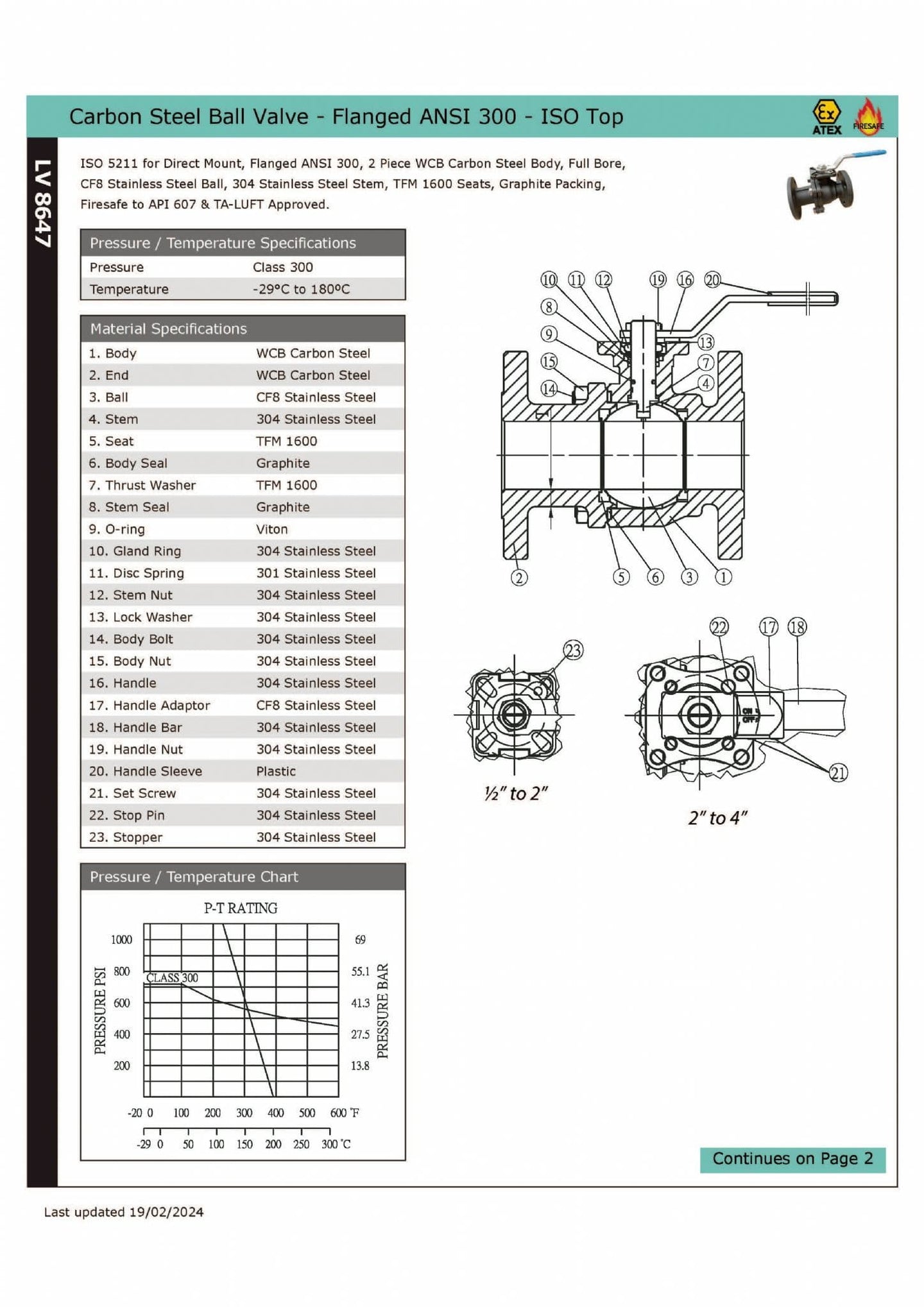

Technical Data:

• Body Material: Carbon steel, forged or cast to industrial spec
• End Connections: ANSI300 flanged (class approx. 300/300 lb)
• Mounting: ISO5211 pad for direct actuator interface
• Flow Design: Fullbore to maintain efficiency in large bore systems
• Temperature Range: 29°C to +180°C (higher temperature variants available with special seats)
• Pressure Rated: Rated Class 300
• Seat Material: PTFE - TFM 1600

Features:

• High rated flange built for elevated pressure and large systems
• Automation ready via ISO mounting pad
• Designed for durability under demanding service conditions
• Easy access via bolted body for maintenance

Applications: Largediameter industrial water, steam, process and utility systems; actuatorcontrolled plant isolation
