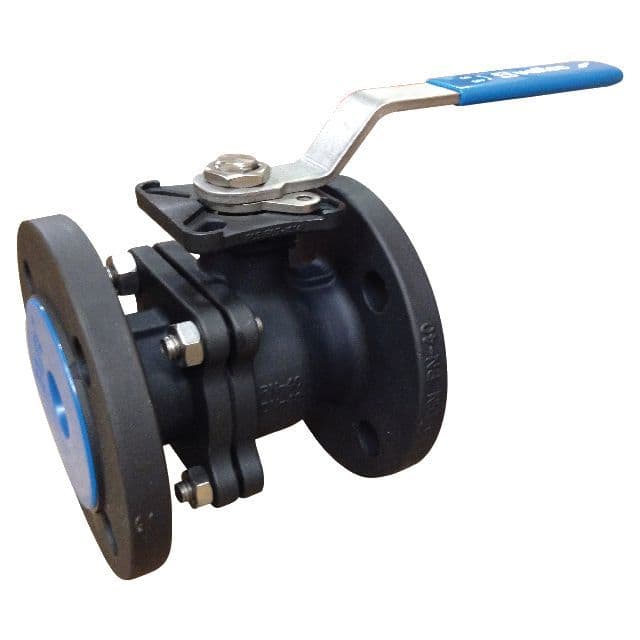

Carbon Steel Ball Valve Flanged PN16, ISOTop

Designed for mediumpressure liquid systems, this carbon steel ball valve with flanged PN16 ends and ISOTop mounting pad offers both ruggedness and flexibility. The flange connections simplify integration into bolted piping networks, while the ISO pad allows actuator retrofitting down the line.

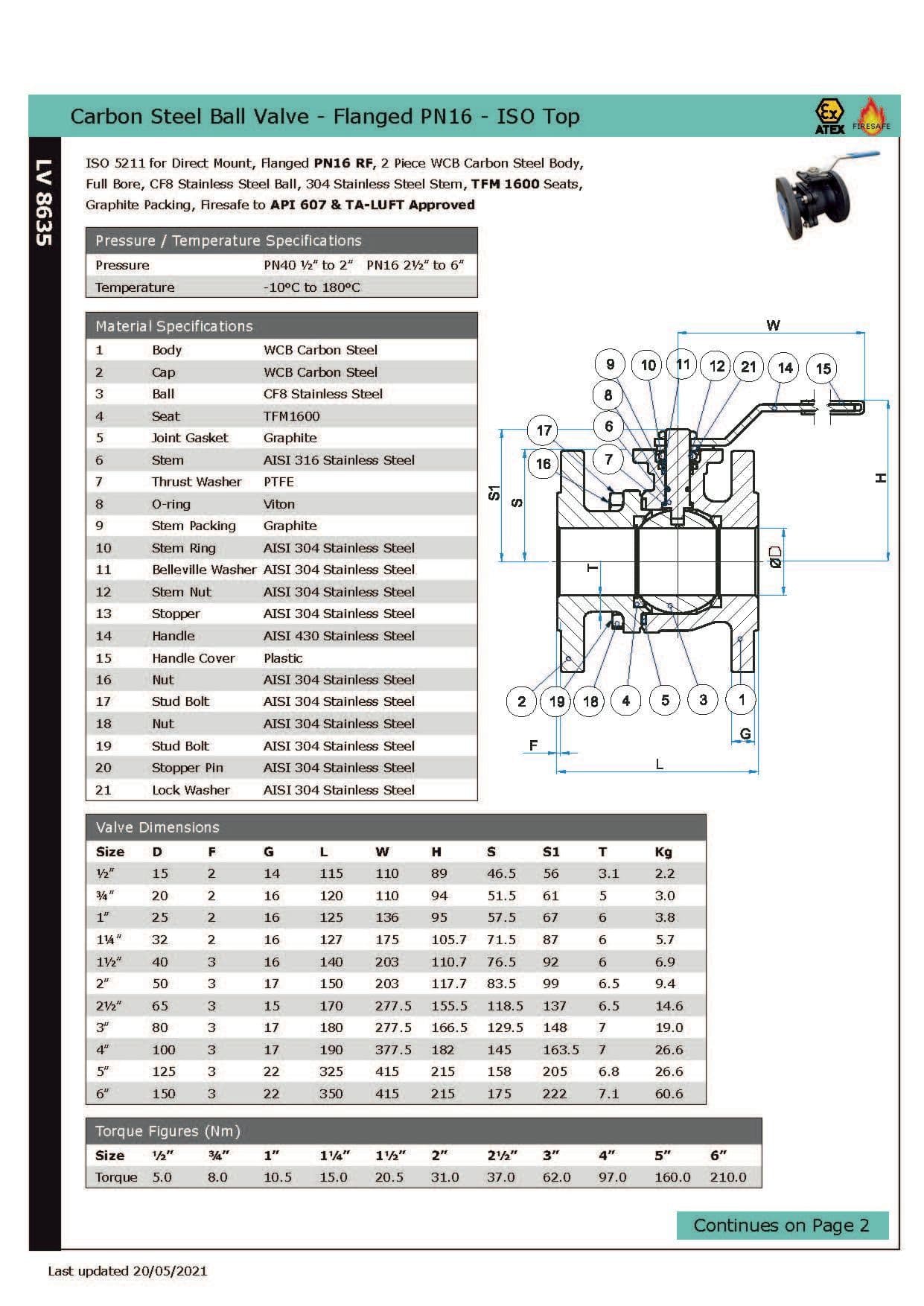

Technical Data:

• Body Material: ASTM A216 WCB carbon steel
• End Connections: Flanged PN16

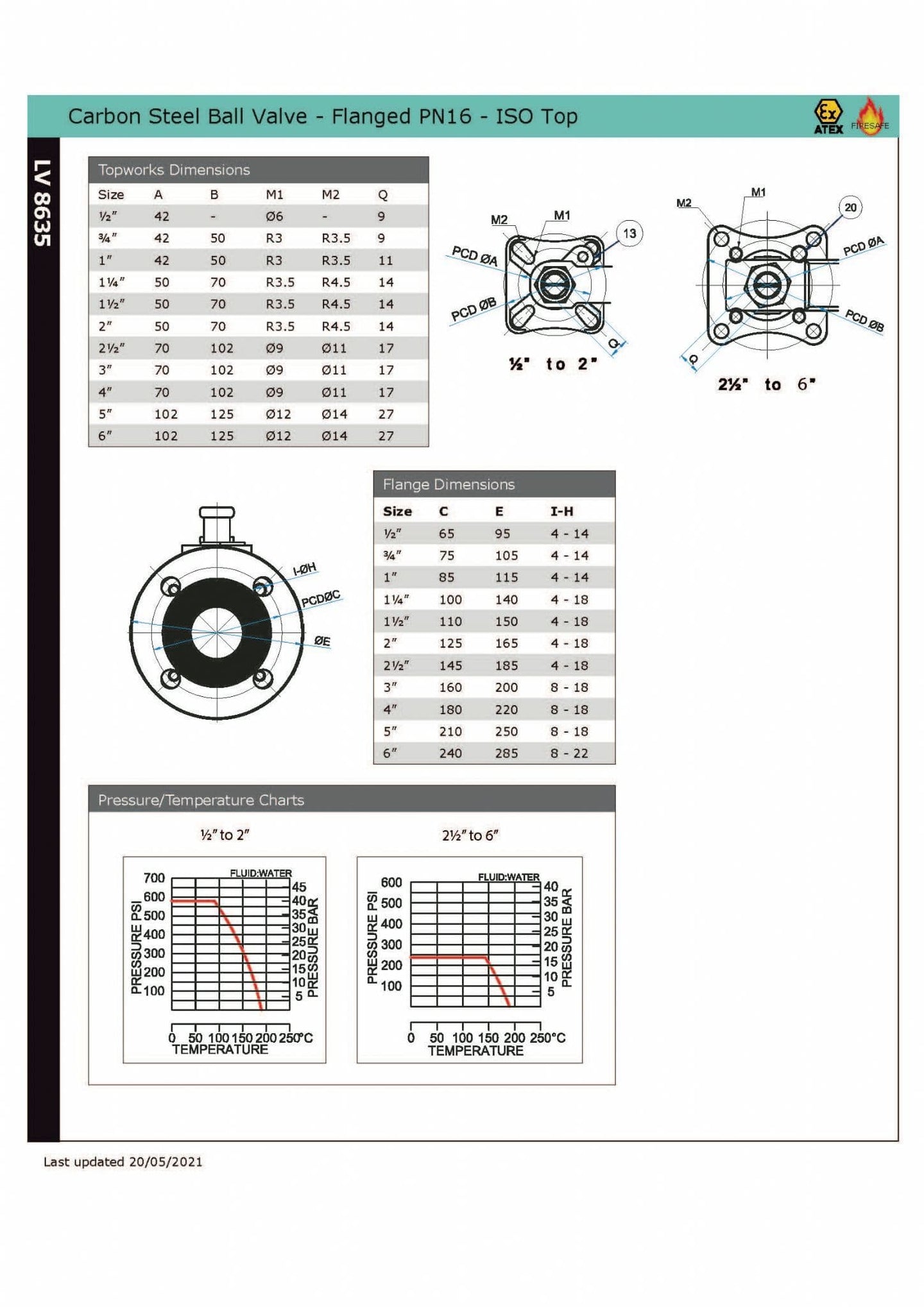

• Mounting: ISO5211 pad included
• Flow Design: Full-bore ball for optimized throughput
• Temperature Range: 10°C to +180°C
• Seat & Seal Material: TFM 1600
• Pressure Rating: Rated PN40 ½ to 2, PN16 2½ to 6

Features:

• PN16 flange rating matches many common water and HVAC systems
• Carbon steel construction for cost-effective robustness
• Actuator-ready ISOTop mounting pad
• Effective flow control with minimal pressure drop

Applications: Building services water loops, medium-pressure distribution, retrofit systems that may be automated in future
