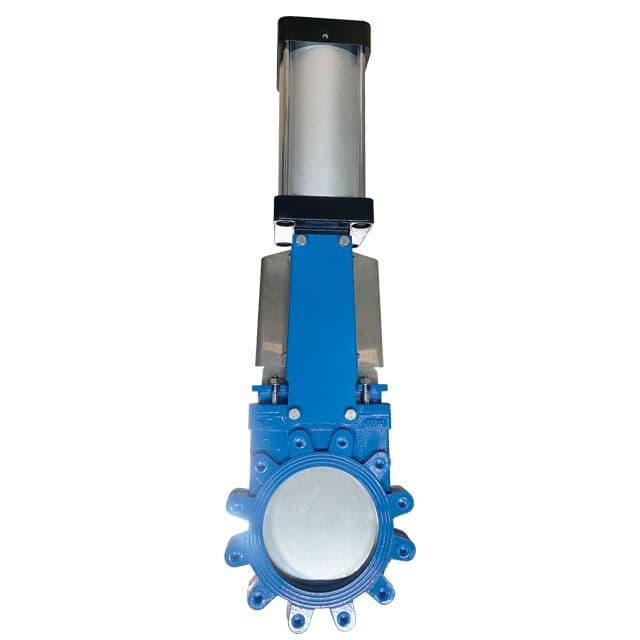

Overview of Cast Iron Knife Gate Valve Unidirectional Double Acting Actuator PN16
Description
This cast iron knife gate valve combines robust PN16 rating with a double-acting pneumatic actuator to provide positive open/close control in challenging pipeline environments. The unidirectional valve seals reliably in one flow direction and is ideal for automated systems controlling viscous or abrasive slurries.

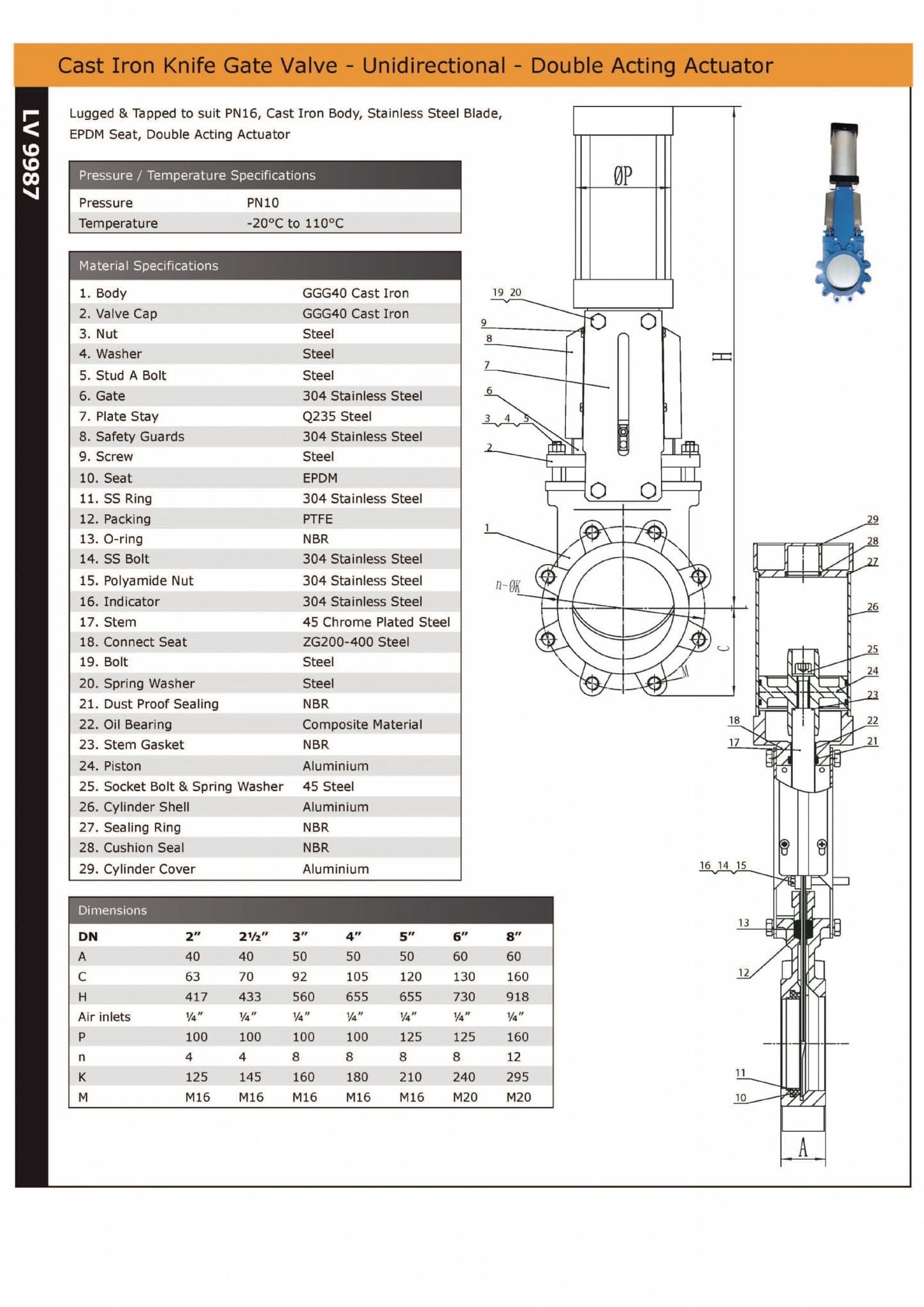

Technical Data
- Body Material: Cast Iron Body, Stainless Steel Blade
- Valve Type: Knife gate, unidirectional
- Mounting: Lugged and Tapped to suit PN16
- Seat: EPDM
- Actuation: Double acting
- Pressure Rating: PN10
- Temperature Range: -20ºC to 110ºC
Key Features
- Double-acting actuator for dependable automation
- High pressure capacity (PN16)
- Designed for solids and heavy media
Installation & Application Notes
Mount with actuator service access in mind. Recommended for industrial effluent, mining, and process control applications.
- Regular price
- £273.37
Overview of Cast Iron Knife Gate Valve Unidirectional Double Acting Actuator PN16
Description
This cast iron knife gate valve combines robust PN16 rating with a double-acting pneumatic actuator to provide positive open/close control in challenging pipeline environments. The unidirectional valve seals reliably in one flow direction and is ideal for automated systems controlling viscous or abrasive slurries.
Technical Data
- Body Material: Cast Iron Body, Stainless Steel Blade
- Valve Type: Knife gate, unidirectional
- Mounting: Lugged and Tapped to suit PN16
- Seat: EPDM
- Actuation: Double acting
- Pressure Rating: PN10
- Temperature Range: -20ºC to 110ºC
Key Features
- Double-acting actuator for dependable automation
- High pressure capacity (PN16)
- Designed for solids and heavy media
Installation & Application Notes
Mount with actuator service access in mind. Recommended for industrial effluent, mining, and process control applications.
- Regular price
- £273.37
Overview of Cast Iron Knife Gate Valve Unidirectional Double Acting Actuator PN16
Description
This cast iron knife gate valve combines robust PN16 rating with a double-acting pneumatic actuator to provide positive open/close control in challenging pipeline environments. The unidirectional valve seals reliably in one flow direction and is ideal for automated systems controlling viscous or abrasive slurries.
Technical Data
- Body Material: Cast Iron Body, Stainless Steel Blade
- Valve Type: Knife gate, unidirectional
- Mounting: Lugged and Tapped to suit PN16
- Seat: EPDM
- Actuation: Double acting
- Pressure Rating: PN10
- Temperature Range: -20ºC to 110ºC
Key Features
- Double-acting actuator for dependable automation
- High pressure capacity (PN16)
- Designed for solids and heavy media
Installation & Application Notes
Mount with actuator service access in mind. Recommended for industrial effluent, mining, and process control applications.
-
