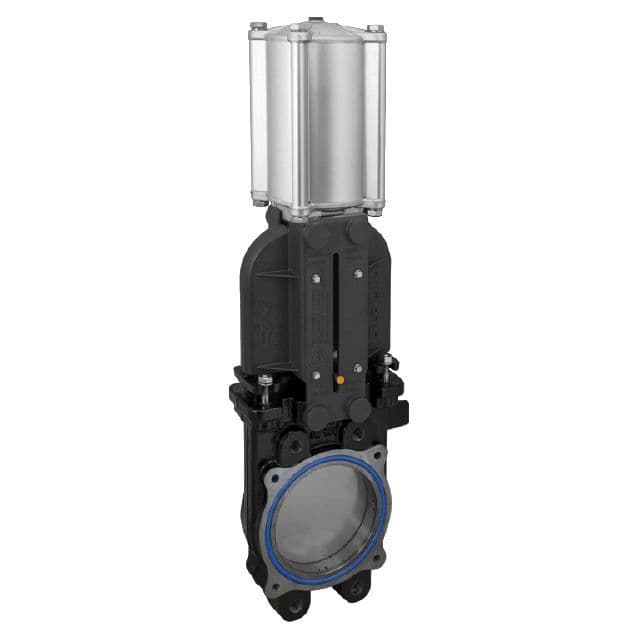

Overview of Cast Iron Knife Gate Valve Unidirectional Double Acting Pneumatic Actuator Agri Standard and ANSI 150
Description
This cast iron knife gate valve combines the rugged reliability of a cast iron body with a double acting pneumatic actuator to support automated control in unidirectional flow systems. Designed to meet both agri standard and ANSI 150 requirements, it provides strong, positive actuation in both directions, independent of line pressure. Ideal for automated process systems where precision and repeatability are crucial.

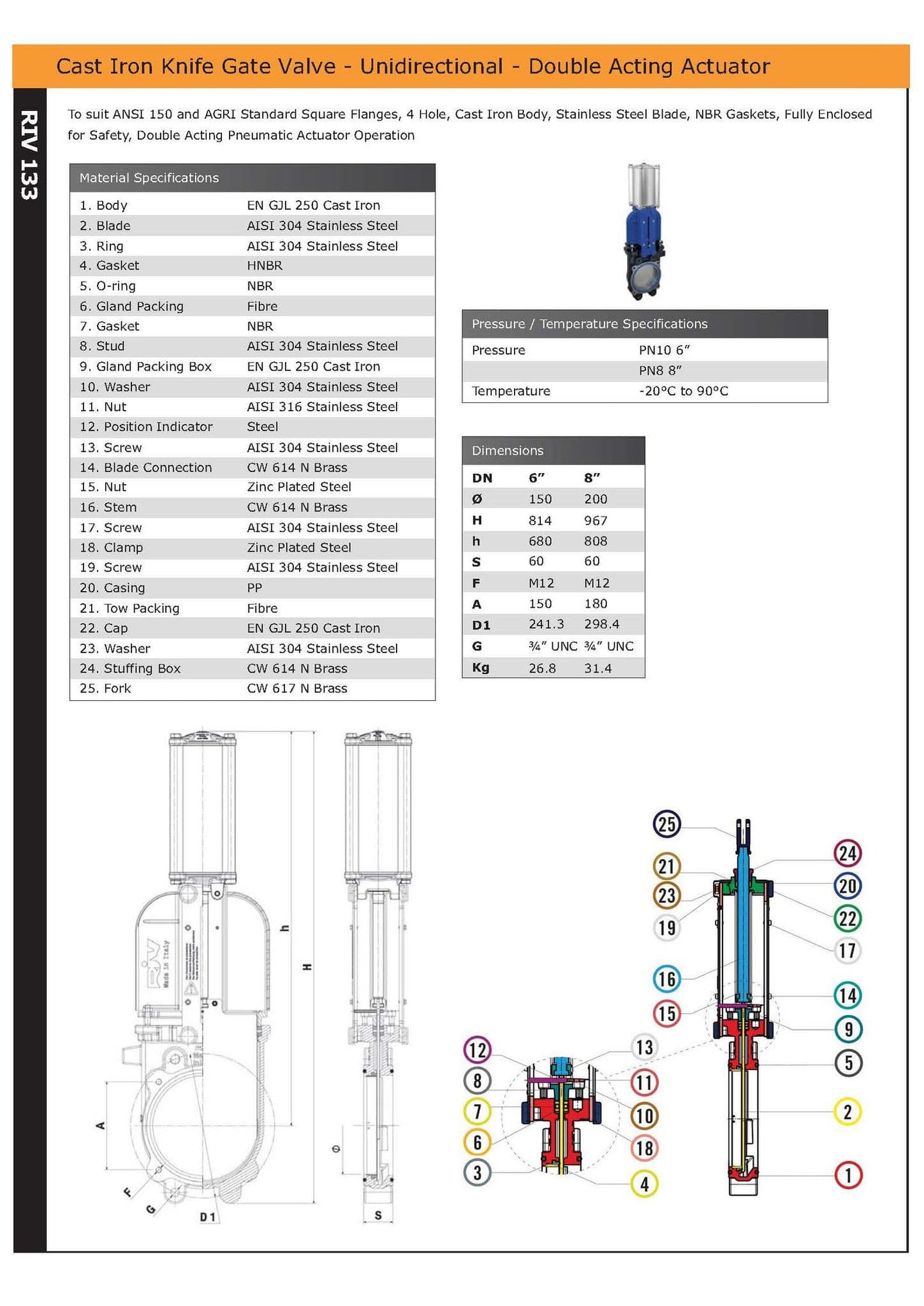

Technical Data
- Body Material: Cast Iron Body, Stainless Steel Blade
- Seal: NBR
- Connection: ANSI 150 and AGRI Standard Square Flanges, 4 Hole
- Valve Type: Knife gate, unidirectional
- Actuation: Double acting pneumatic actuator
- Standards: Agri standard and ANSI 150
- Pressure Rating: ANSI 150
- Temperature Range: 20 °C to +90 °C
- Sealing: Resilient seat for reliable shut-off
Key Features
- Double acting pneumatic control for accurate automated operation
- ANSI 150 rating for higher pressure environments
- Suitable for sludge, slurry, and solids transport lines
Installation & Application Notes
Well suited for integration with PLC or remote control panels in automated wastewater, agricultural, or industrial process systems. Ensure actuator air supply meets the required pressure and flow specifications.
RIV
Cast Iron Knife Gate Valve Unidirectional Double Acting Pneumatic Actuator AGRI Standard and A
- Regular price
- £814.86
