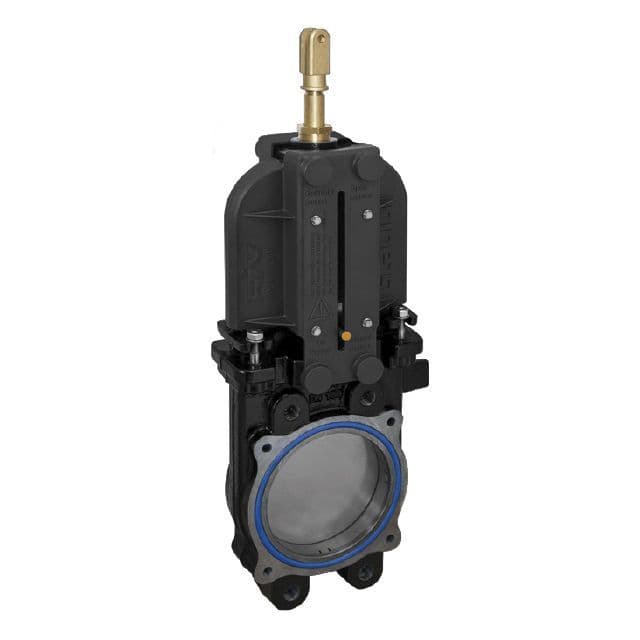

Overview of Cast Iron Knife Gate Valve Unidirectional Lever Operated Agri Standard and PN10
Description
This unidirectional cast iron knife gate valve is built to the agri standard, combining rugged construction with a simple lever mechanism for manual control. The valves design ensures reliable isolation in agricultural slurry, water, and solids-bearing pipelines, and its PN10 rating makes it suitable for low to medium pressure applications.

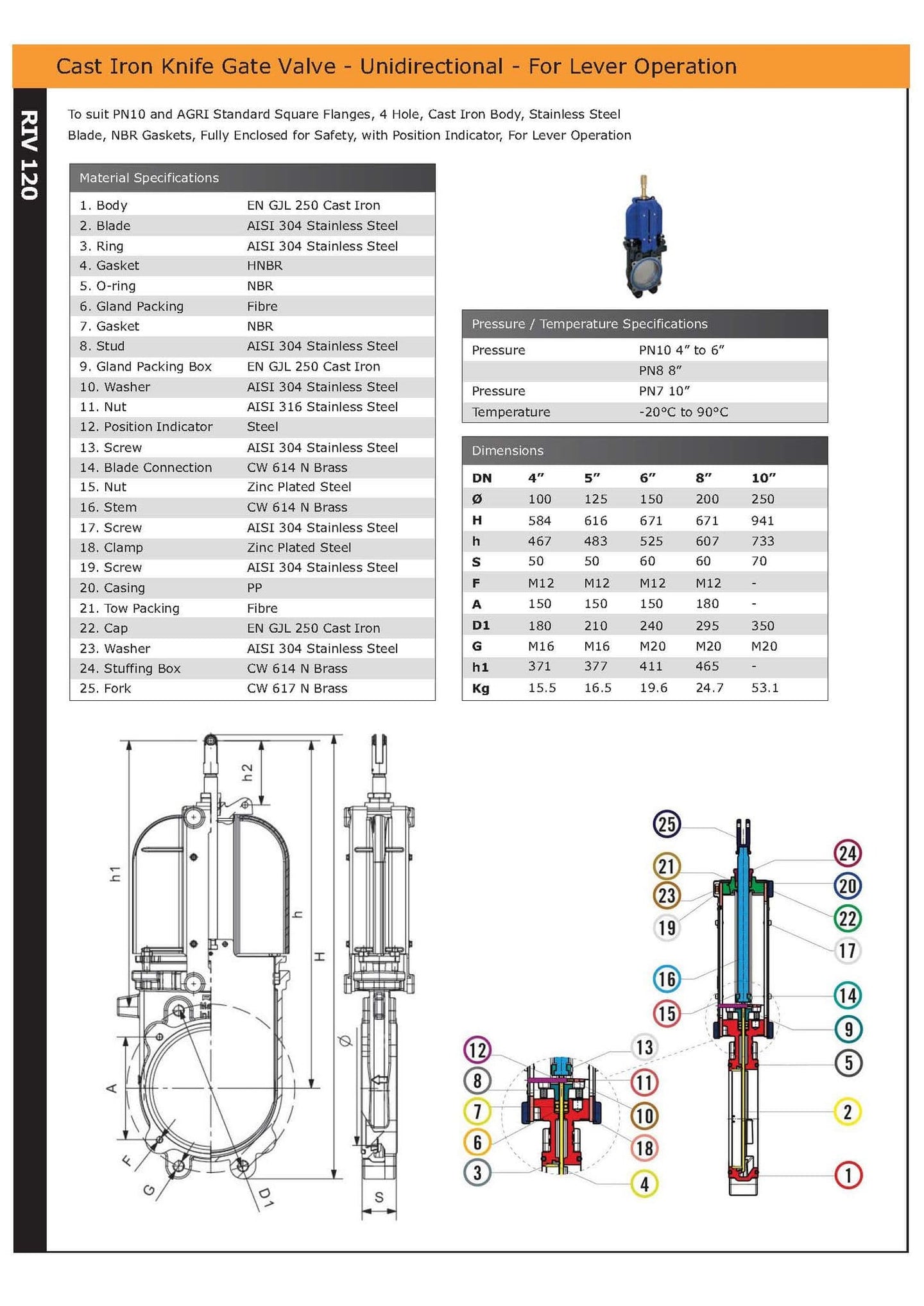

Technical Data
- Body Material: Cast Iron Body, Stainless Steel Blade, NBR Gaskets
- Connection: PN10 and AGRI Standard Square Flanges, 4 Hole
- Valve Type: Knife gate, unidirectional
- Actuation: Lever operated
- Seat: NBR
- Standard: Agri standard
- Pressure Rating: PN10
- Temperature Range: 20 °C to +90 °C
Key Features
- Agri standard design for compatibility with farm and industrial systems
- Quick manual lever operation
- Cast iron durability
Installation & Application Notes
Recommended for agricultural waste, irrigation systems, and farm transfer lines. Ensure the lever has adequate clearance for full travel.
RIV
Cast Iron Knife Gate Valve Unidirectional For Lever Operation AGRI Standard and PN10
- Regular price
- £382.29
Overview of Cast Iron Knife Gate Valve Unidirectional Lever Operated Agri Standard and PN10
Description
This unidirectional cast iron knife gate valve is built to the agri standard, combining rugged construction with a simple lever mechanism for manual control. The valves design ensures reliable isolation in agricultural slurry, water, and solids-bearing pipelines, and its PN10 rating makes it suitable for low to medium pressure applications.
Technical Data
- Body Material: Cast Iron Body, Stainless Steel Blade, NBR Gaskets
- Connection: PN10 and AGRI Standard Square Flanges, 4 Hole
- Valve Type: Knife gate, unidirectional
- Actuation: Lever operated
- Seat: NBR
- Standard: Agri standard
- Pressure Rating: PN10
- Temperature Range: 20 °C to +90 °C
Key Features
- Agri standard design for compatibility with farm and industrial systems
- Quick manual lever operation
- Cast iron durability
Installation & Application Notes
Recommended for agricultural waste, irrigation systems, and farm transfer lines. Ensure the lever has adequate clearance for full travel.
- Regular price
- £382.29
