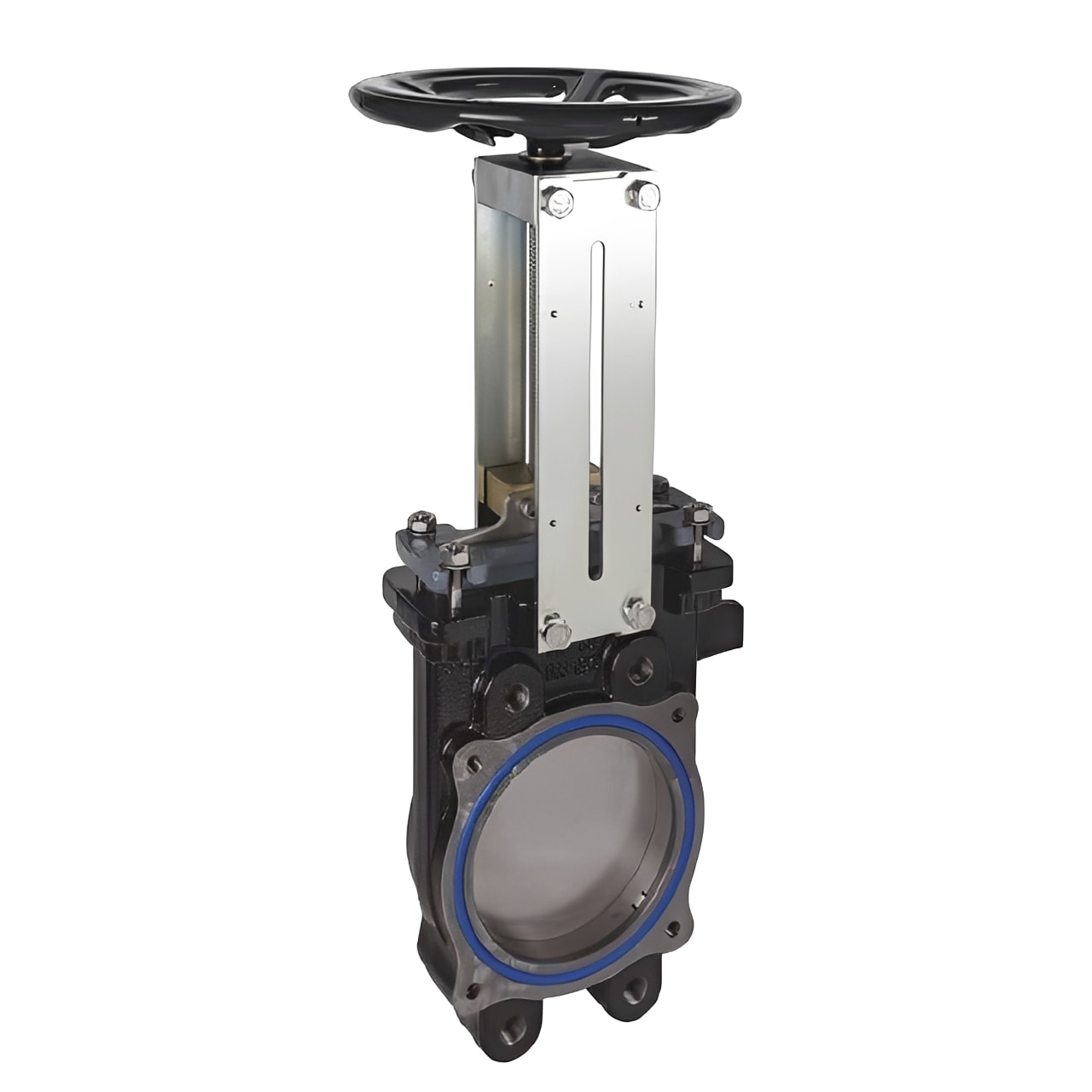

This robust cast iron knife gate valve is designed for unidirectional flow isolation in demanding agricultural and industrial applications. Built to both Agri standard and ANSI 150 specifications, it combines the strength of a cast iron body with a handwheel actuator for dependable manual control.
- Durable Construction: Features a high-quality cast iron body paired with a stainless steel blade for enhanced longevity.
- Dual Compatibility: Designed for versatility with both Agri standard and ANSI 150 piping systems.
- Manual Operation: Equipped with a handwheel for smooth, controlled manual actuation.
- Optimised Flow: The full bore design ensures efficient flow, making it ideal for systems handling solids, slurries, and viscous media.
- Positive Shut-off: Unidirectional design ensures reliable isolation in the marked direction of flow.
This valve is best suited for agricultural slurry lines, industrial effluent pipelines, and large water systems where manual isolation is required. Ensure installation follows the marked flow direction for optimal performance.
| Body Material | Cast Iron Body, Stainless Steel Blade |
|---|---|
| Valve Type | Knife gate, unidirectional |
| Seal | NBR |
| Actuation | Handwheel |
| Standards | Agri standard and ANSI 150 |
| Pressure Rating | PN10 |
| Temperature Range | 20 °C to +90 °C (service dependent) |
| Connection | ANSI 150 and AGRI Standard Square Flanges, 4 Hole |
| Flow Pattern | Full bore |
- Regular price
- £551.96
