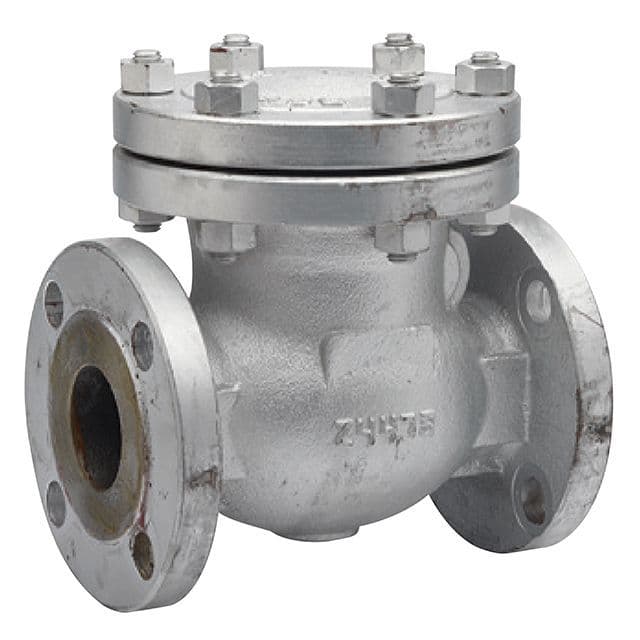

Cast Steel Swing Check Valve Flanged ANSI300

Designed for higherpressure applications, this cast steel swing check valve with ANSI300 flanged ends enables reliable oneway flow in systems where Class300 (~49bar) service is required. The cast steel body and swing disc mechanism deliver strong performance under elevated demands.

Technical Data:

• Body Material: Cast carbon steel (e.g., ASTM A216 WCB) configured for Class300 rating.
• Connection Type: ANSI300 (Class 300) flange dimensions per ASME B16.5.
• Seat/Disc: Swing disc, typically metal seat for elevated service.
• Pressure Rating: CL300
• Temperature Range: Up to +435°C
• Flow Orientation: Horizontal recommended; must check manufacturer for vertical service.

Key Features:

• Highpressure capability makes it suitable for demanding process services.
• Swing mechanism provides lasting reliability and minimal flow restriction.
• ANSI300 flanged format supports strong industrial systems globally.

Typical Applications:
Steam mains, highpressure water systems, industrial feed lines, petrochemical services with elevated pressure conditions.
