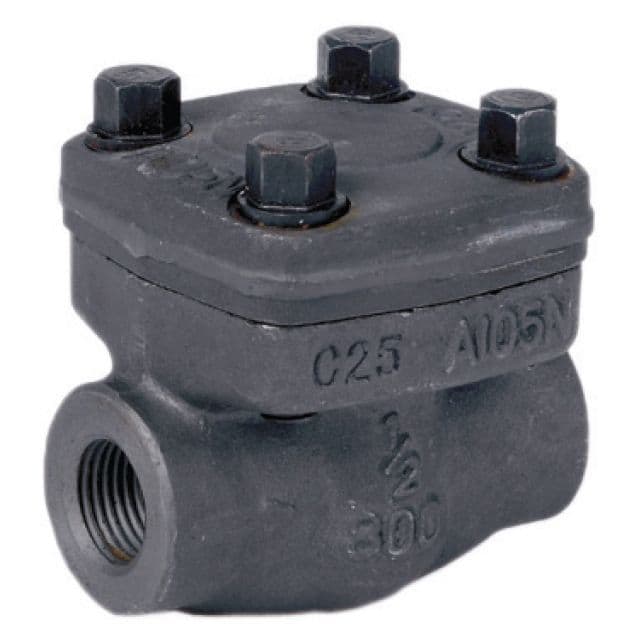

ForgedSteelCheckValve ScrewedBSPT

This variant of the forged steel check valve features BSPT (British Standard Pipe Taper) screwed ends, offering compatibility with UK and international threaded piping while retaining the highperformance forged body construction.

Technical Data:

• Body Material: Forged steel (ASTMA105/A350) or equivalent.
• End Connections: BSPT female threads
• Pressure Rating: Maximum Pressure 136.2 Bar @ -29 to 38ºC
• Temperature Capacity: -29°C to 538°C
• Service Orientation: Horizontal or vertical approved depending on model; sleeve or piston style internal closing.

Key Features:

• Built for heavy use and high pressure, in environments where pipework uses BSPT threads.
• Provides secure oneway flow control in small pipe installations with minimal space.
• Forged steel construction enhances strength, integrity and proven reliability.
• Ideal when standard NPT is not the installation norm but high performance is needed.

Typical Use Cases:
Industrial water systems, compressed air or gas mains, chemical feed lines, manufacturing plant piping where BSPT threaded connection is standard.
