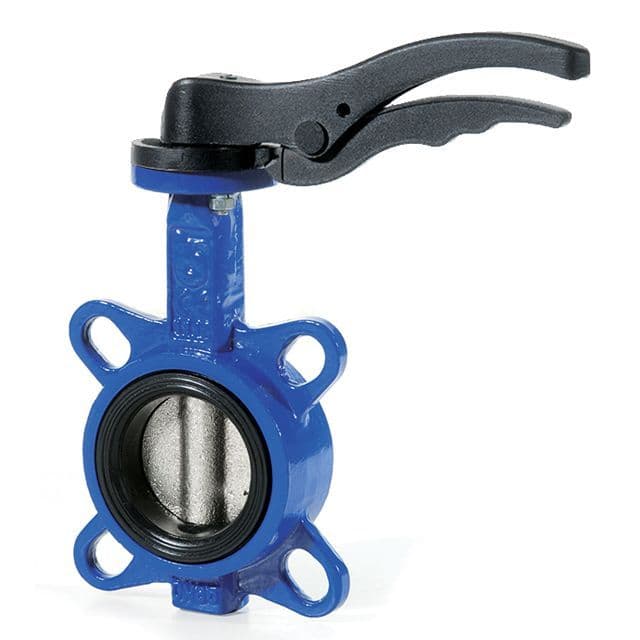

Multi Flange Wafer Pattern Butterfly Valve with Aluminium Bronze Disc and NBR (Buna) Liner

Engineered for versatility and reliability, this wafer pattern butterfly valve is designed to perform across a wide range of industrial and water service applications. Featuring a ductile iron body, aluminium bronze disc, and NBR (Buna N) liner, it combines strength, corrosion resistance, and sealing efficiency in one compact design. Ideal for general process systems, HVAC, and water treatment, this valve delivers dependable flow control and long service life.

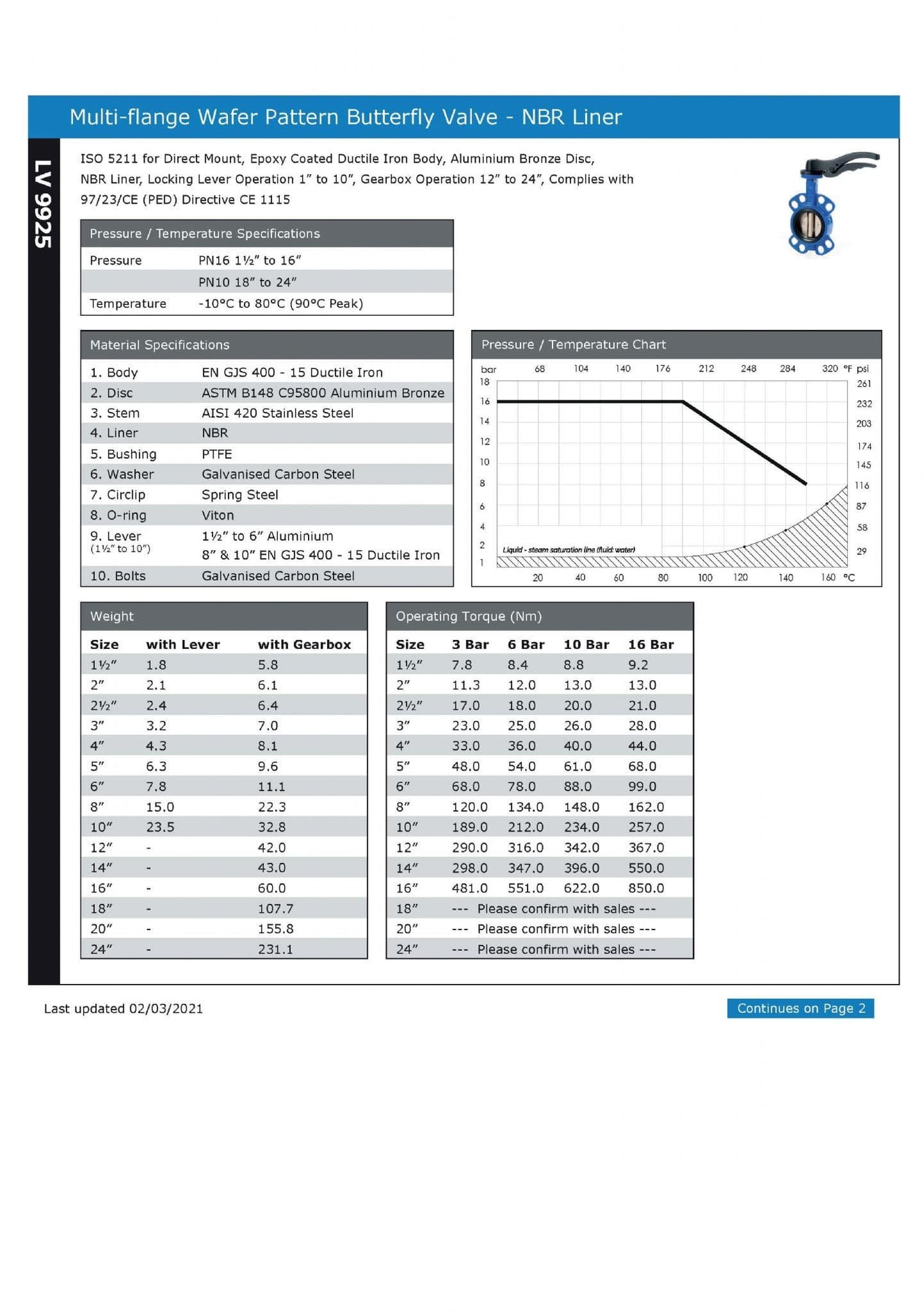

Technical Data

Body Material: Epoxy-coated ductile iron, providing excellent durability and protection from environmental and mechanical wear.
Disc Material: Aluminium bronze, chosen for its corrosion resistance and high strength, making it suitable for a variety of process fluids.
Liner/Seat Material: NBR (Buna N) elastomer, offering a reliable, tight seal and compatibility with water, oils, and many neutral liquids.

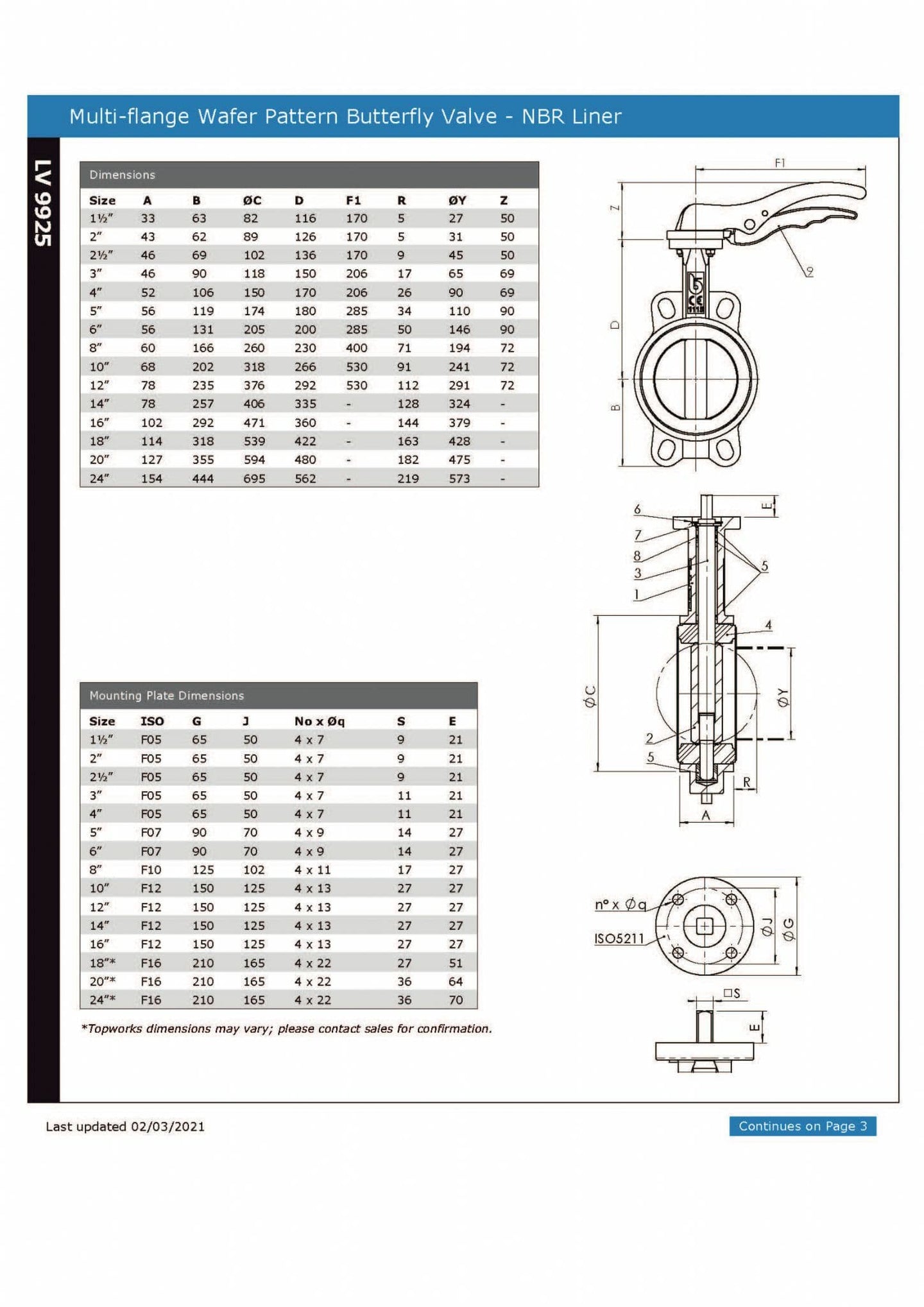

Pattern / Flange Compatibility: Wafer pattern design compatible with multiple flange standards.

• Sizes 1½ to 16 fit PN6, PN10, PN16, ANSI 150, Table D, and Table E flanges
• Sizes 18 to 24 fit PN16 flanges
  Mounting Standard: ISO 5211 top flange for direct actuator or gearbox mounting, simplifying automation and manual operation options.
  Operation Options:
• Lever operation for sizes 1½ to 12

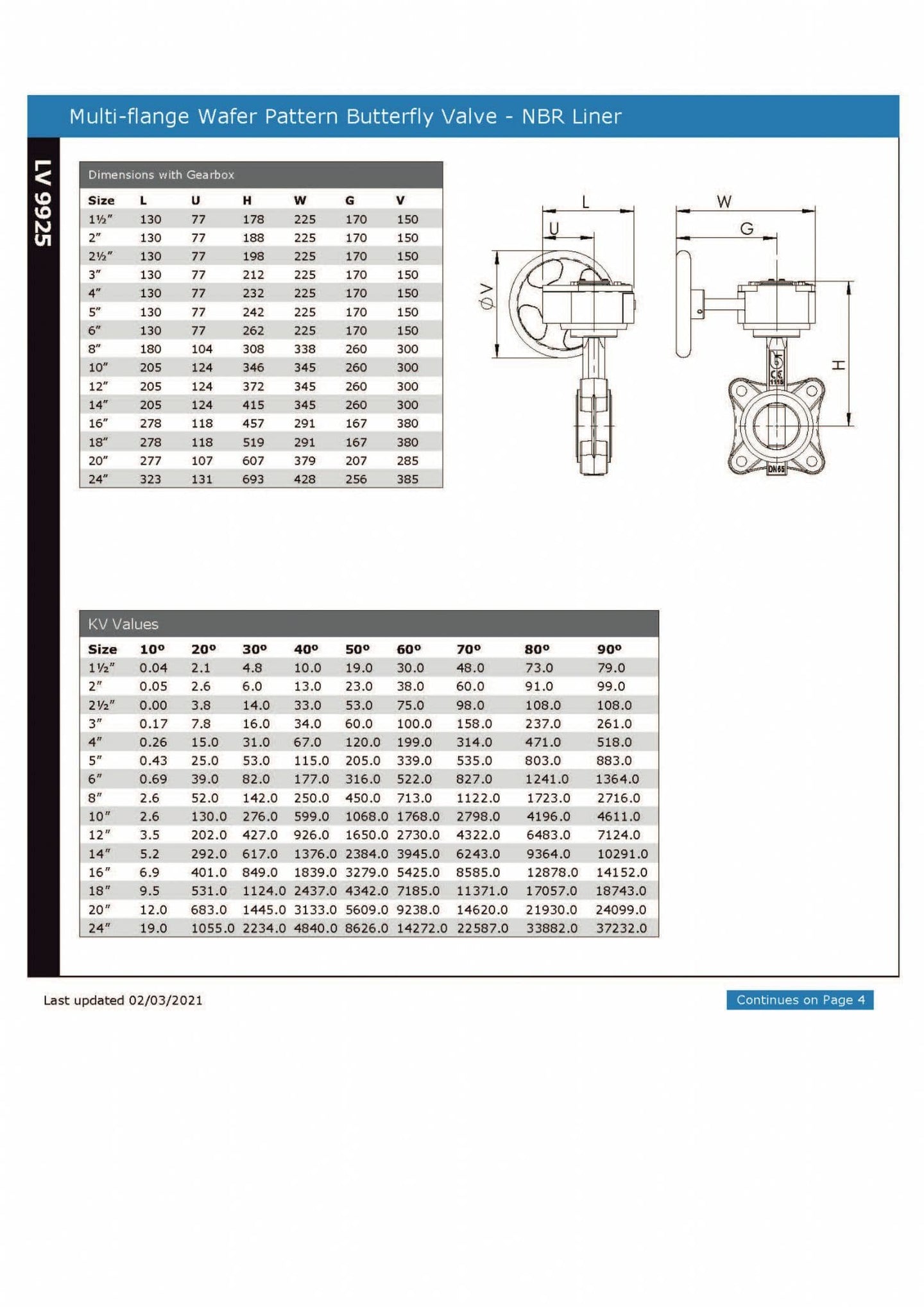

• Gearbox operation for sizes 14 to 24 (optional)

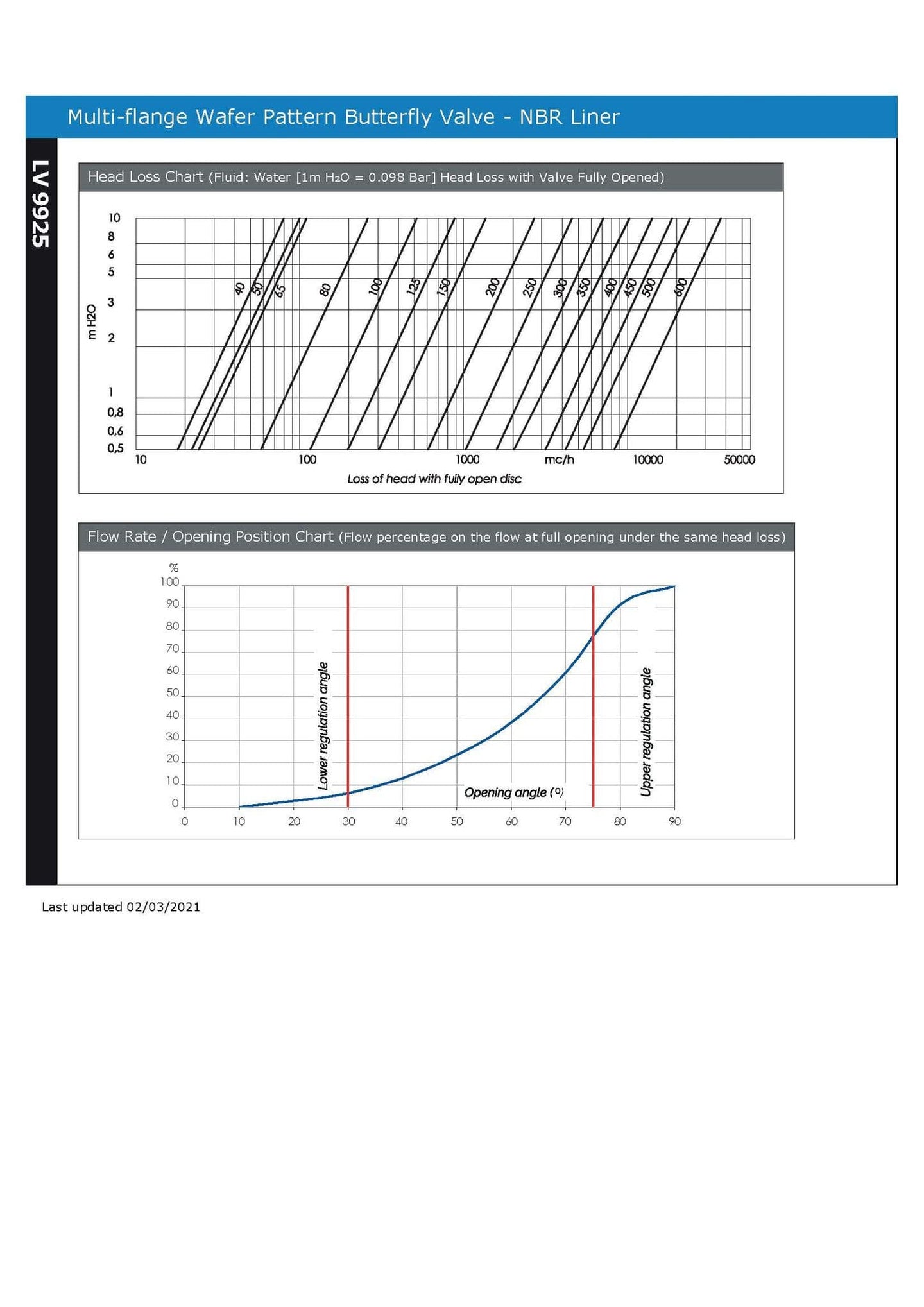

  Pressure Rating:
• PN16 for sizes 1½ to 12
• PN10 for sizes 14 to 24
  Temperature Range: 10 °C to +80 °C
  Product Code / MPN: V992508 (Brandoni)

Why This Valve Is a Smart Choice

Multi-standard compatibility: The multi-flange wafer design allows for installation across a variety of international flange standards, reducing complexity and improving flexibility for system integration.
Durable construction: The aluminium bronze disc and NBR liner combination provides an excellent balance between corrosion resistance and long-term sealing reliability.
Automation-ready: ISO 5211 compatibility makes it easy to fit electric or pneumatic actuators directly, allowing you to automate systems with minimal modification.
Space-saving design: Wafer body layout minimizes weight and space requirements, perfect for compact installations.
Dependable operation: Designed for smooth operation and consistent performance across a wide range of industrial, HVAC, and water applications.

Installation and Application Tips

• Check that the valves flange compatibility matches your system standard (PN, ANSI, or Table type).
• Use appropriate fasteners and torque evenly during installation to maintain a uniform seal and prevent body distortion.
• For automation, confirm actuator torque compatibility, especially for larger valve sizes.
• Ensure the NBR liner is suitable for your process media, ideal for water, air, and mild chemicals, but not recommended for strong solvents or acids.
• Keep the valve within its rated temperature and pressure limits to maintain reliable performance.
• When servicing, the wafer design and ISO 5211 mount simplify removal and maintenance without full line disassembly.

This Multi Flange Wafer Pattern Butterfly Valve with Aluminium Bronze Disc and NBR Liner offers a reliable, corrosion-resistant, and adaptable solution for fluid control. Its robust construction, flexible flange compatibility, and ease of automation make it a cost-effective and practical choice for engineers seeking long-lasting performance in industrial or commercial systems.
