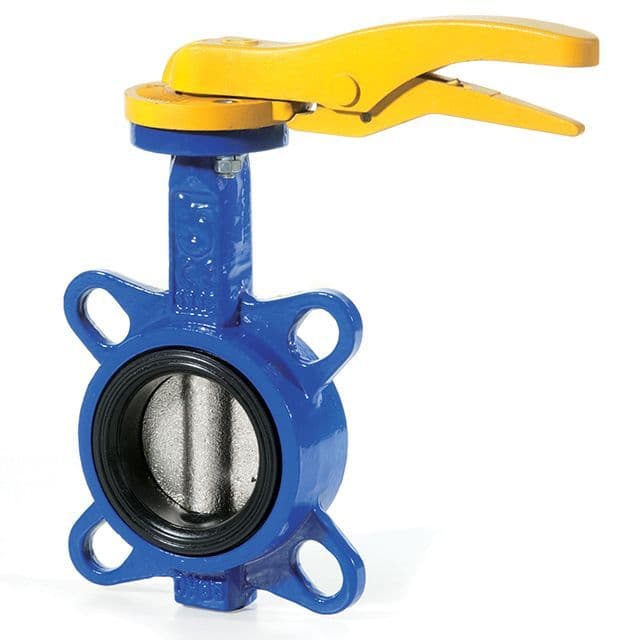

Versatile and Reliable Multi Flange Wafer Pattern Butterfly Valve (Stainless Steel Disc / NBR Buna Liner)

The Multi Flange Wafer Pattern Butterfly Valve (Stainless Steel Disc / NBR Buna Liner) is a high-performance solution for systems requiring dependable shut-off and flow control. Designed to fit multiple flange standards, this valve is ideal for installers and engineers looking for compatibility and ease of integration in diverse pipeline systems.

The stainless steel disc delivers outstanding corrosion resistance and mechanical strength, making it suitable for use in water, air, and light chemical applications. Paired with a NBR (Buna-N) liner, this valve ensures a tight, bubble-free seal and excellent resilience in varying temperature and pressure conditions.

The wafer pattern body allows for compact installation between flanges without compromising accessibility or sealing. Whether you're working in water treatment, HVAC, or general industrial environments, this valve provides the performance and durability you need.

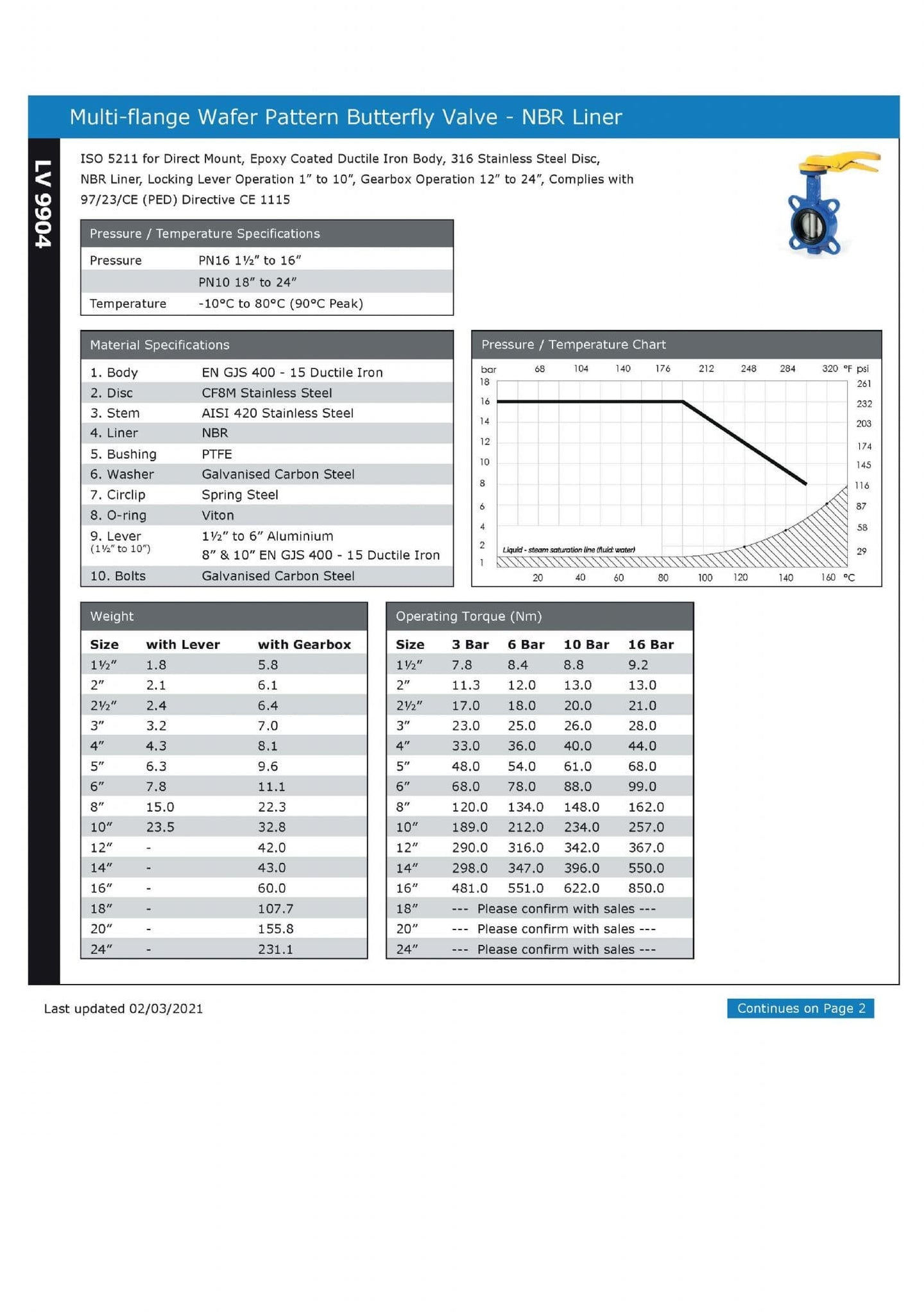

Technical Specifications:

• Valve Type: Wafer Pattern Butterfly Valve
• Body Design: 1½" to 16" to fit PN6, PN10, PN16, ANSI 150, Table D and/or Table E Flanges. 18" to 24" to fit PN16 Flanges
• Disc Material: Stainless Steel
• Liner Material: NBR (Buna-N)
• Body Material: Cast Iron
• Pressure Rating: PN10/PN16
• Temperature Range: -10°C to +90°C
• Applications: Water, air, compressed air systems, and light industrial fluids

Built with quality materials and a user-friendly design, this butterfly valve provides long-term reliability with minimal maintenance. The Multi Flange Wafer Pattern Butterfly Valve (Stainless Steel Disc / NBR Buna Liner) is a trusted choice for professionals who value performance, adaptability, and cost-efficiency.
