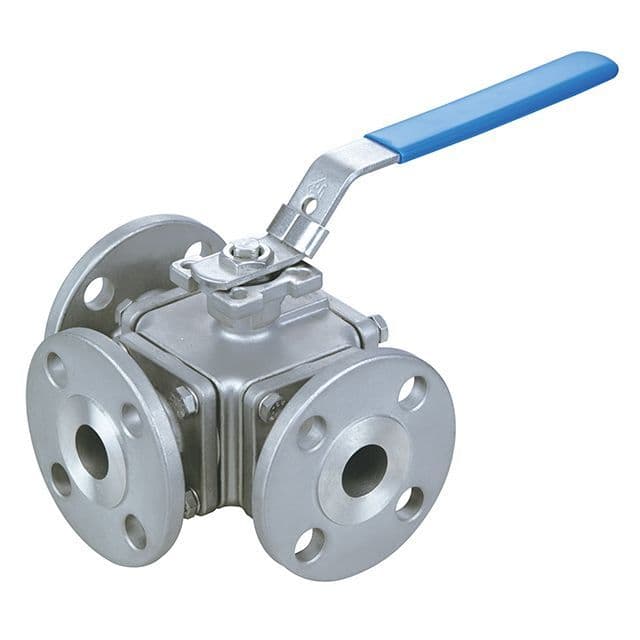

Stainless Steel 3Way Ball Valve PN16, LPort ISOTop
Combining Lport functionality with an ISOTop mounting pad and stainless steel construction, this 3way ball valve offers deployment versatility, high durability and automation readiness. Designed for installations where future actuator integration and manual system flexibility both matter.
Technical Data:
- Material: 316 stainless steel
- Port Configuration: Lport
- Mounting: ISO 5211 pad included for actuator mount
- Connection Type: According to specification (threaded or flanged PN16)
- Flow Design: Fullbore ball mechanism
- Temperature/Pressure Range: Up to ~16 bar and 20°C to +180°C with standard seats
- Seal Material: RPTFE standard
Key Features:
- Automated-ready design with manual fallback
- Lport path supports switchable flow between circuits
- Stainless body ensures strong resilience and long life
- Suitable for highintegrity installations needing flexibility
Applications: Automated fluid routing, plant control valves, HVAC manifold systems.
- Regular price
- £251.37
Stainless Steel 3Way Ball Valve PN16, LPort ISOTop
Combining Lport functionality with an ISOTop mounting pad and stainless steel construction, this 3way ball valve offers deployment versatility, high durability and automation readiness. Designed for installations where future actuator integration and manual system flexibility both matter.
Technical Data:
- Material: 316 stainless steel
- Port Configuration: Lport
- Mounting: ISO 5211 pad included for actuator mount
- Connection Type: According to specification (threaded or flanged PN16)
- Flow Design: Fullbore ball mechanism
- Temperature/Pressure Range: Up to ~16 bar and 20°C to +180°C with standard seats
- Seal Material: RPTFE standard
Key Features:
- Automated-ready design with manual fallback
- Lport path supports switchable flow between circuits
- Stainless body ensures strong resilience and long life
- Suitable for highintegrity installations needing flexibility
Applications: Automated fluid routing, plant control valves, HVAC manifold systems.
- Regular price
- £251.37
Stainless Steel 3Way Ball Valve PN16, LPort ISOTop
Combining Lport functionality with an ISOTop mounting pad and stainless steel construction, this 3way ball valve offers deployment versatility, high durability and automation readiness. Designed for installations where future actuator integration and manual system flexibility both matter.
Technical Data:
- Material: 316 stainless steel
- Port Configuration: Lport
- Mounting: ISO 5211 pad included for actuator mount
- Connection Type: According to specification (threaded or flanged PN16)
- Flow Design: Fullbore ball mechanism
- Temperature/Pressure Range: Up to ~16 bar and 20°C to +180°C with standard seats
- Seal Material: RPTFE standard
Key Features:
- Automated-ready design with manual fallback
- Lport path supports switchable flow between circuits
- Stainless body ensures strong resilience and long life
- Suitable for highintegrity installations needing flexibility
Applications: Automated fluid routing, plant control valves, HVAC manifold systems.
-
