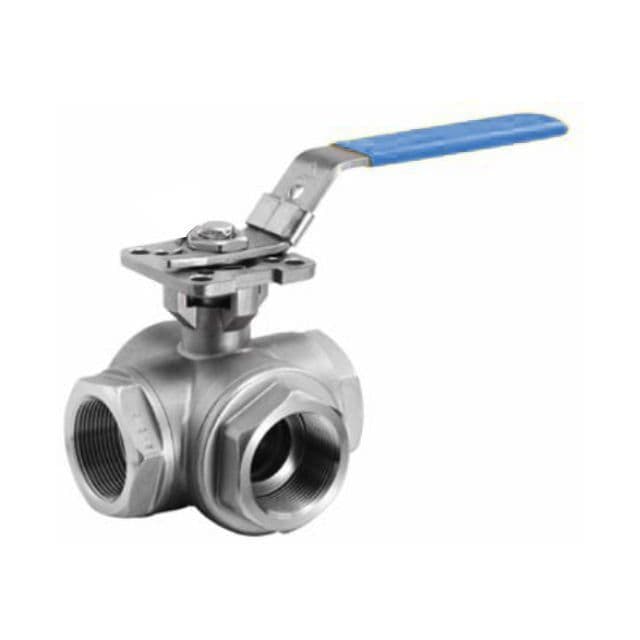

Stainless Steel 3Way Ball Valve TPort
This stainless steel 3way ball valve features a Tport configuration, allowing flow diversion or mixing across three ports. Built in stainless steel, this valve offers flexibility for multiroute systems and high durability for demanding service.

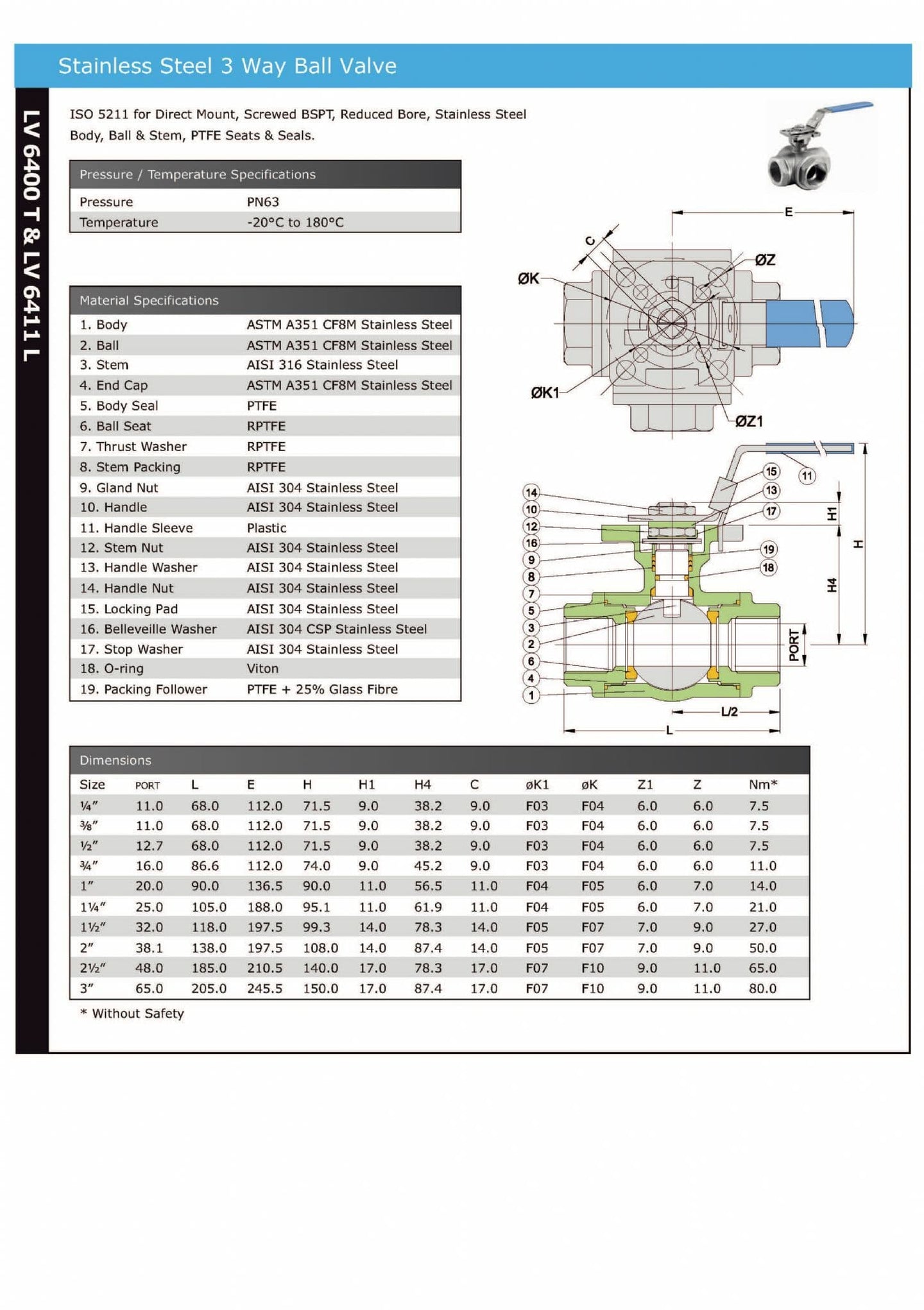

Technical Data:
- Body: Stainless steel (316 or equivalent)
- Port Configuration: Tport threeway mixing/diverting
- Seat Material: PTFE
- Pressure & Temp: PN63, temperature range 20°C to +180°C
- Mounting: Screwed BSPT
Key Features:
- Enables one inlet to feed two outlets, or two inlets to mix into one outlet
- Stainless steel body for long service life and corrosion resistance
- Ideal for complex manifold applications where multiple flow paths are required
Applications: HVAC mixing loops, process control lines, fluid diversion systems or manifolds where routing flexibility is required.
Stainless Steel 3Way Ball Valve TPort
This stainless steel 3way ball valve features a Tport configuration, allowing flow diversion or mixing across three ports. Built in stainless steel, this valve offers flexibility for multiroute systems and high durability for demanding service.
Technical Data:
- Body: Stainless steel (316 or equivalent)
- Port Configuration: Tport threeway mixing/diverting
- Seat Material: PTFE
- Pressure & Temp: PN63, temperature range 20°C to +180°C
- Mounting: Screwed BSPT
Key Features:
- Enables one inlet to feed two outlets, or two inlets to mix into one outlet
- Stainless steel body for long service life and corrosion resistance
- Ideal for complex manifold applications where multiple flow paths are required
Applications: HVAC mixing loops, process control lines, fluid diversion systems or manifolds where routing flexibility is required.
- Regular price
- £56.56
