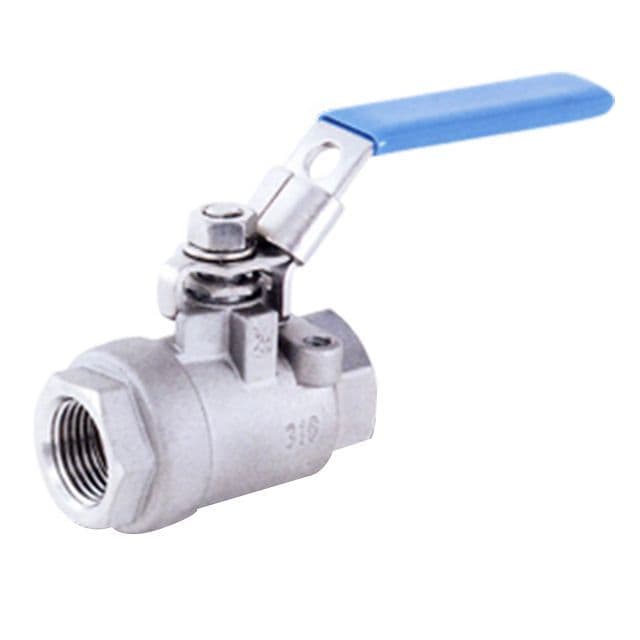

Overview of Stainless Steel Ball Valve 2-Piece 3000 psi Rated

Description
This 2-piece stainless steel ball valve is engineered for high-pressure service up to 3000 psi ( 207 bar), combining robustness with precision. A forged 316 stainless steel body and full-bore ball ensure reliable flow control even under demanding conditions. The two-piece split-body design simplifies maintenance, allowing access to the internals without complete pipeline removal. Ideal for hydraulic, process or high-pressure fluid systems.

Technical Data

• Body Material: 316 stainless steel
• Ball Material: 316 stainless steel (mirror polished)
• Seat / Seal Material: PTFE (or U-ring style for high pressure)
• End Connections: Screwed or flanged (depending on size) rated to 3000 psi
• Pressure Rating: 3000 psi ( 207 bar)
• Temperature Range: 20 °C to +200 °C (depending on seat material)
• Design: 2-piece split body for easier service

Key Features

• High-pressure rating makes it suitable for hydraulic and heavy-duty industrial systems
• Stainless steel construction delivers strong corrosion resistance
• Full-bore flow ensures minimal pressure drop and efficient operation
• Split-body design allows maintenance of seats and ball without full removal of valve from line

Installation & Application Notes
When installing in high-pressure systems, ensure torque values on end connections meet the manufacturers specs. Use compatible gaskets and bolts rated for the same pressure class. Confirm that the pipeline supports the valve loads and that the actuation torque is matched. Because the seat material may influence the temperature rating, verify compatibility with your fluid and service temperature. Ideal for oil & gas, hydraulic power units, and high-pressure process applications.
