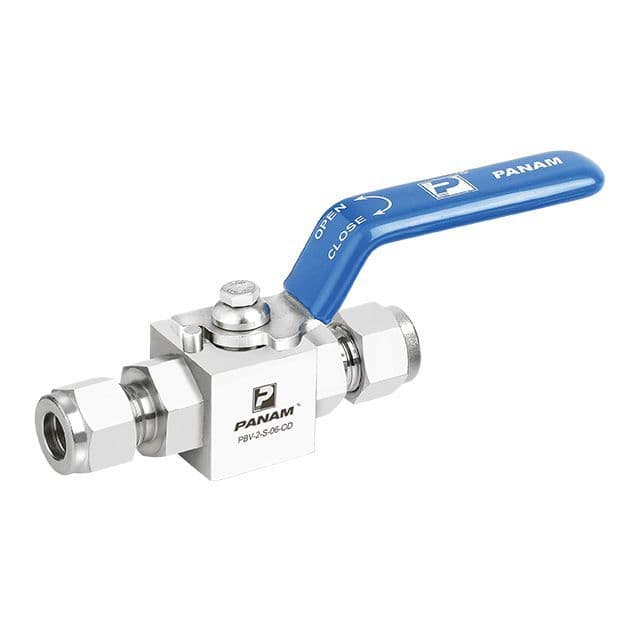

Overview of Stainless Steel Ball Valve Compression Ends Metric

Description
Designed for metric-sized instrumentation and small-bore process systems, this compression-end stainless steel ball valve provides precise isolation in compact form. The 316 stainless steel body and compression fittings ensure clean installation and high reliability. Its design suits modern instrumentation, water treatment, and machinemounted piping where imperial threads are not standard.

Technical Data

• Body Material: 316 stainless steel
• End Connections: Metric size compression fittings (e.g., 10 mm, 12 mm, 15 mm)
• Ball Material: 316 stainless steel
• Seat / Seal Material: POM
• Pressure Rating: Approximately upto 6000 psi depending on diameter
• Temperature Range: 0 °C to +40 °C

Key Features

• Metric compression ends for international pipe systems
• Robust stainless construction offers longevity and corrosion resistance
• Full-bore ball enables efficient flow with minimal pressure drop
• Ideal for laboratory, machine panel, and smaller process installations

Installation & Application Notes
Verify that tubing dimensions and material match compression fitting requirements (hard-annealed stainless or copper). Use correct nut and sleeve and tighten according to manufacturer guidelines. Suitable for instrumentation, control panels, and pilot fluid systems where precise shut-off and compact size are critical.
