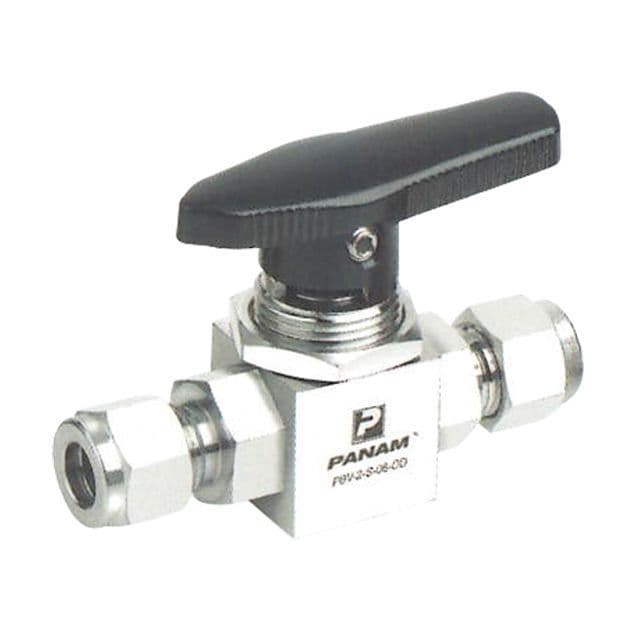

Overview of Stainless Steel Ball Valve Compression Ends Panel Mount Metric

Description
This stainless steel ball valve with metric compression ends and a panel-mount configuration is engineered for compact and precision instrumentation systems. The 316 stainless steel body ensures corrosion resistance and long-term durability, while the panel-mount design allows secure installation in control panels or enclosures. Its full-bore design and low-torque operation make it suitable for high-performance control of liquids and gases in laboratory, food, and process environments.

Technical Data

• Body Material: 316 stainless steel
• End Connections: Metric compression fittings (e.g., 6 mm, 8 mm, 10 mm, 12 mm)
• Ball Material: 316 stainless steel, mirror-polished
• Seat / Seal Material: POM
• Pressure Rating: Up to 6000 psi (depending on size)
• Temperature Range: 0 °C to +40 °C
• Mounting: Panel-mount front nut with fixed handle alignment

Key Features

• Panel-mount design for integration into instrumentation or control panels
• Metric compression ends allow clean, leak-free assembly without threads
• 316 stainless steel construction for maximum corrosion resistance
• Low-torque quarter-turn operation for precise flow control
• Suitable for liquids, gases, and inert media

Installation & Application Notes
Ensure that tubing is cut square and fully seated in the compression fitting before tightening. Mount the valve panel nut securely to prevent rotation during use. Ideal for analytical instruments, control cabinets, laboratory systems, and small-bore fluid circuits where neat installation and easy operation are essential.
