Overview of Stainless Steel Ball Valve Hose Tail with Cap

Description

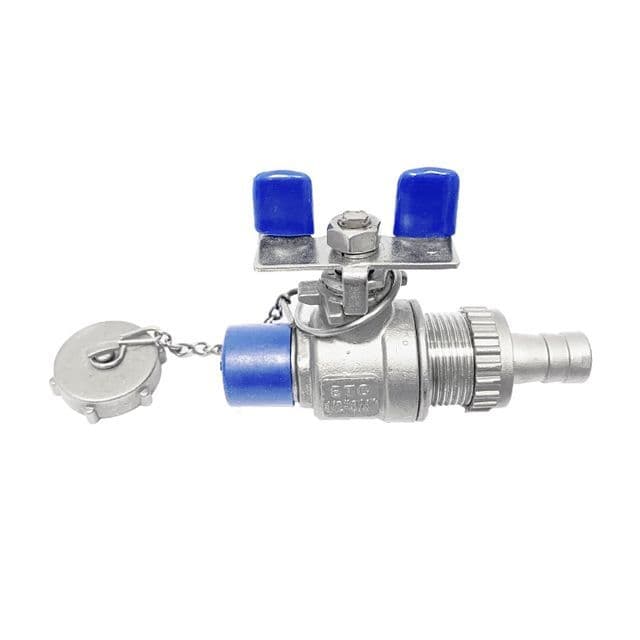

This stainless steel hose tail ball valve with protective cap offers robust and secure shut-off for flexible hose systems. The integrated hose tail allows quick connection to tubing, while the included cap prevents contamination and protects the outlet when not in use. Constructed from 316 stainless steel with PTFE seats, it provides a hygienic and corrosion-resistant solution suitable for water, air, and chemical applications.

Technical Data

• Body Material: 316 stainless steel
• Ball Material: 316 stainless steel
• Seats / Seals: PTFE
• Connection Type: Hose tail outlet with protective end cap
• Pressure Rating: Up to 1000 psi
• Temperature Range: 20 °C to +120 °C

Key Features

• Hose tail connection ensures quick hose attachment
• Supplied with stainless steel cap for secure closure and cleanliness
• PTFE seats provide smooth, leak-free shut-off
• Corrosion-resistant 316 stainless steel for industrial and hygienic use
• Ideal for portable or temporary fluid systems

Installation & Application Notes
Secure hose using appropriate clamps to ensure leak-free operation. Use the cap to protect the outlet from dust or contamination when not in service. Suitable for cleaning systems, chemical dosing, or mobile fluid transfer applications.
