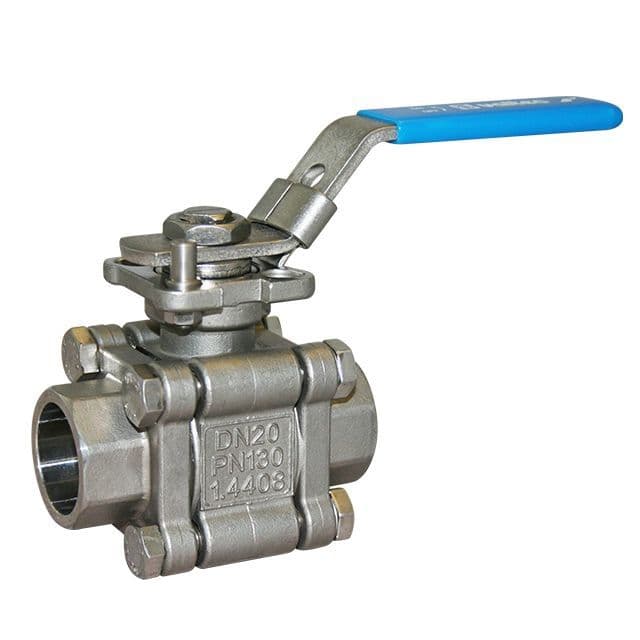

Stainless Steel Ball Valve Screwed BSPP, ISOTop

This high-spec stainless steel ball valve combines standard BSPP threaded ends with an ISO5211 compatible mounting pad, offering immediate readiness for actuator installation in the future. Ideal for precision systems requiring corrosion resistance, reliable fullbore flow and the flexibility to automate later.

Technical Data:

• Body Material: 316 stainless steel (two-piece construction)
• Connection Type: Screwed BSPP female ends
• Mounting: ISO5211 top pad for direct actuator mounting
• Flow Design: Full-bore ball valve (minimal pressure drop)
• Pressure Rating: Depends on size; typically rated ~1000 CL800
• Temperature Range: 20°C to +200°C
• Seat & Seal Material: TFM 1600

Features:

• Corrosionresistant stainless body for durability in demanding environments
• Threaded ends for simpler installation in nonflanged systems
• ISOTop ensures future automation with no valve change required
• Fullbore design ensures maximum flow efficiency

Applications: Clean water systems, chemical service, automated process control, medium-duty industrial pipelines
