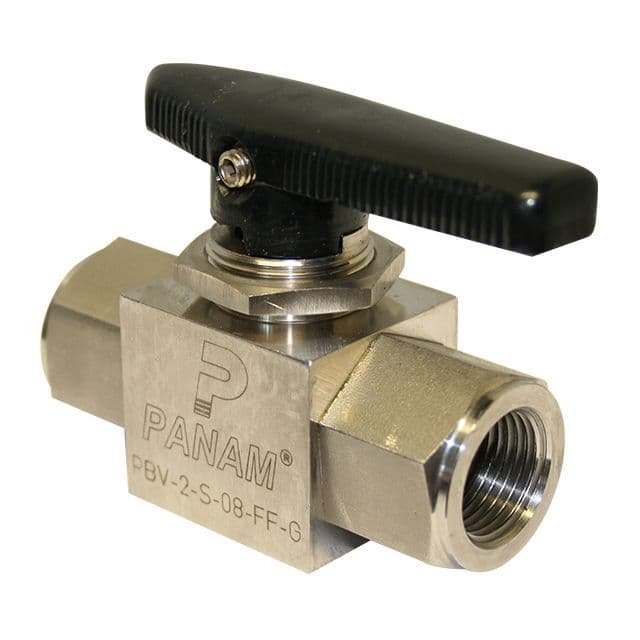

Stainless Steel Ball Valve Screwed BSPP, Pointer Handle Operated

This precision stainless steel ball valve features female BSPP screwed ends and a pointerstyle handle for accurate indication of valve position. Its stainless steel body ensures corrosion resistance, while the fullbore design and leverstyle operation deliver efficient flow and fast shutoff.

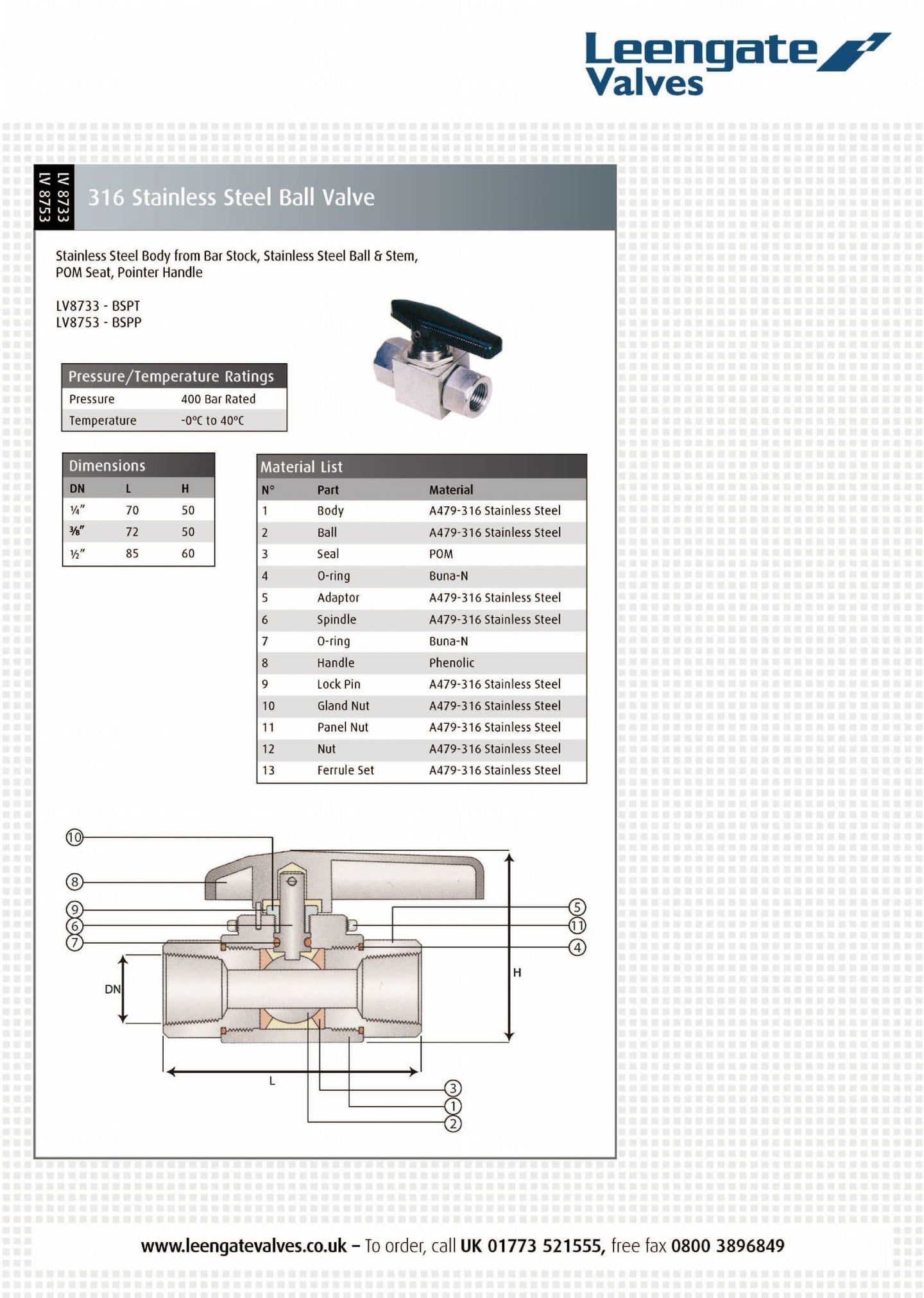

Technical Data:

• Body Material: 316 stainless steel
• Connection Type: Female BSPP threads on both ends
• Handle: Pointer handle for clear 090° open/closed indication
• Flow Design: Fullbore ball valve
• Pressure Rating: Common ratings up to ~6000psi (~69bar)
• Temperature Range: 0°C to +40°C
• Seat & Seal Material: POM standard

Features:

• Stainless steel body for durability in corrosive or sanitary environments
• Screwed connections provide compact installation without flanges
• Pointer handle offers precise visual feedback of valve state
• Fullbore design delivers minimal flow restriction

Applications: Instrumentation piping, sampling taps, clean water systems, sanitary installations, general plumbing where full visibility of valve position is desirable
