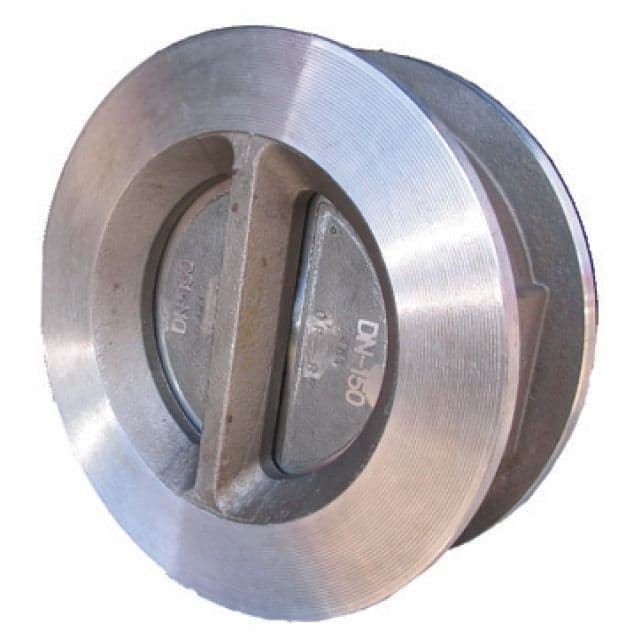

Stainless Steel Dual Plate Check Valve ANSI Wafer Pattern

This Stainless Steel Dual Plate Check Valve in ANSI Wafer Pattern configuration is engineered for compatibility with American flange standards. It offers the same dual-plate spring-assisted mechanism as the PN version but with ANSI 150 rated design options, ensuring seamless integration into global process systems.

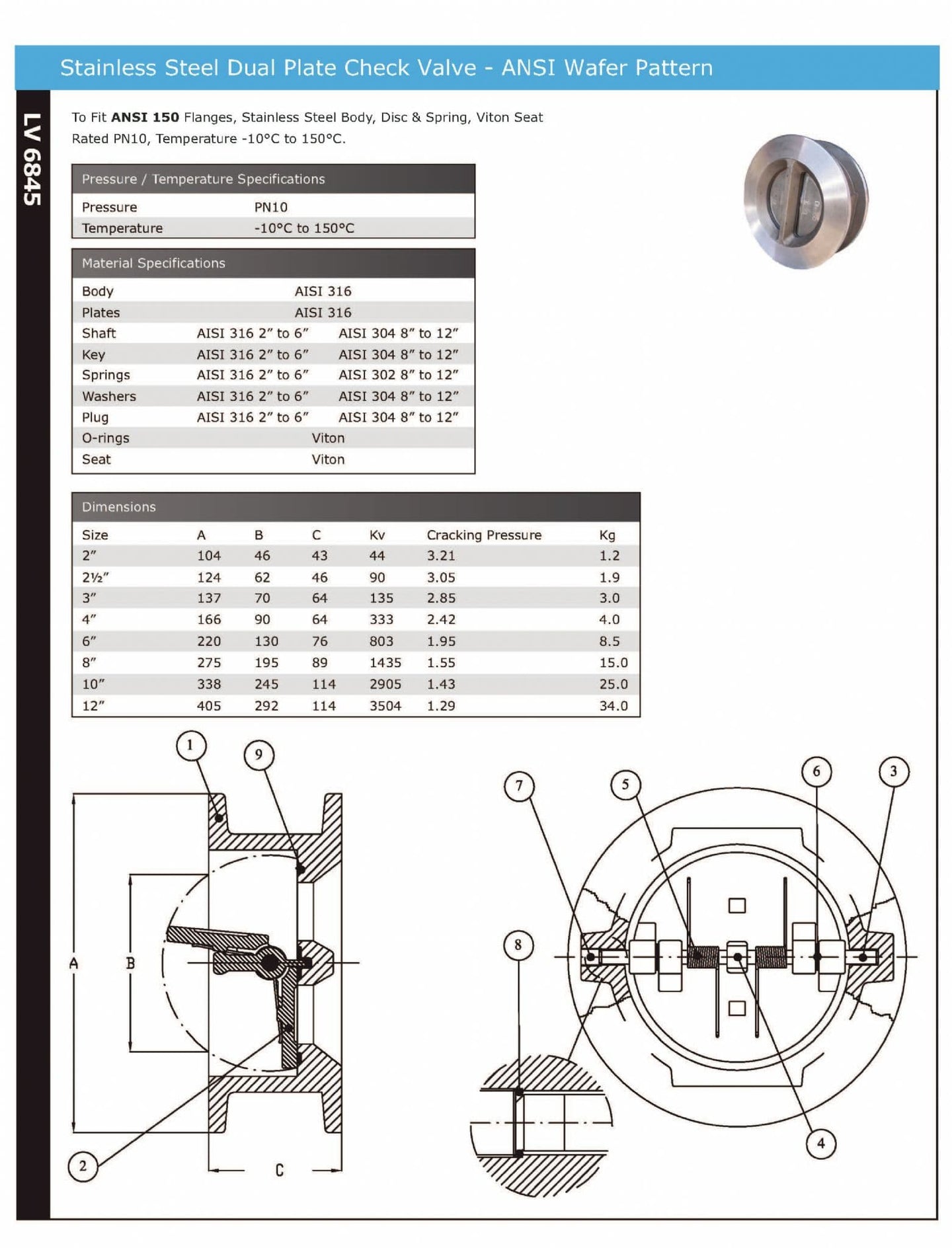

Technical Data:

• Body Material: Stainless Steel (316) for corrosion and temperature resistance
• Plates: Dual stainless steel plates, spring-loaded for rapid shutoff
• Seat: Viton seat
• Connection Type: Wafer-style, ANSI 150 flanges
• Pressure Rating: PN10
• Temperature Range: -10°C to +150°C
• Flow Direction: Unidirectional, with flow arrow indicated on body

Key Features:

• Designed for ANSI flange systems used in international process and marine industries
• Dual-plate and spring-assisted closure ensures swift and silent operation
• Stainless steel construction provides high strength and resistance to chemical attack
• Lightweight wafer design simplifies installation and maintenance

Applications:
Perfect for chemical processing, oil and gas, desalination, shipbuilding, and other industries requiring durable, globally compatible non-return valves.
