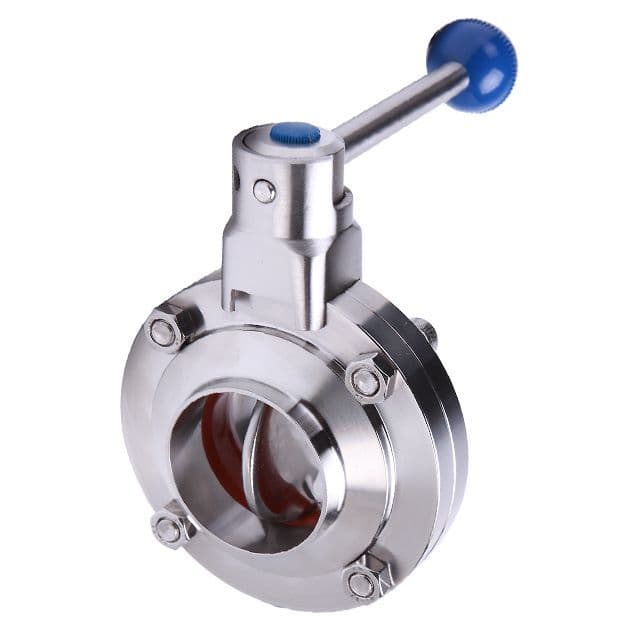

Precision and Clean Operation Stainless Steel Hygienic Butterfly Valve Butt Weld OD

The Stainless Steel Hygienic Butterfly Valve Butt Weld OD is specifically engineered for applications where hygiene and cleanability are critical. Commonly used in the food, beverage, pharmaceutical, and cosmetic industries, this valve delivers a high standard of performance, reliability, and sanitary design.

Manufactured from premium-grade stainless steel, this valve features a butt weld OD connection, making it ideal for permanent, hygienic pipeline installations. The smooth internal surfaces minimize areas where bacteria can accumulate, while the compact, low-torque design allows for easy operation and minimal maintenance. Whether you're handling liquids, semi-solids, or clean-in-place (CIP) solutions, this valve ensures a safe and sterile process environment.

Technical Specifications:

• Valve Type: Hygienic Butterfly Valve
• Connection Type: Butt Weld OD
• Material: Stainless Steel 316 (body and disc)
• Seal Material: Food-grade EPDM or Silicone (depending on spec)
• Surface Finish: Polished to Ra 0.8 µm
• Operating Pressure: Up to 10 bar
• Temperature Range: -10°C to +120°C
• Standards: Suitable for 3A, FDA, and EHEDG compliant systems
• Applications: Food processing, dairy, brewing, pharmaceuticals, cosmetics

With its polished finish and sanitary design, the Stainless Steel Hygienic Butterfly Valve, Butt Weld OD offers a dependable solution for critical hygienic processes. It combines cleanability, durability, and efficient flow control, all in one compact, easy-to-install unit.
