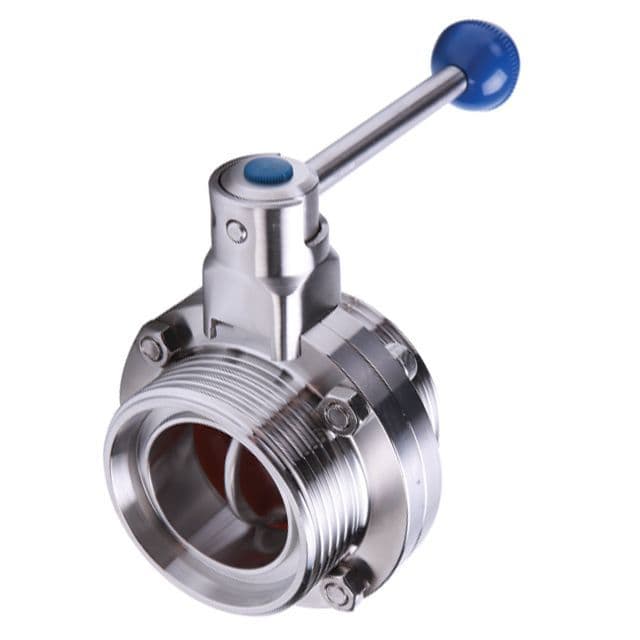

Hygienic Stainless Steel Butterfly Valve with RTJ Ends

This hygienic stainless steel butterfly valve is purpose built for clean processing systems where reliable sealing, durability, and sanitary performance are essential. Designed with RTJ (Ring Type Joint) ends, it provides a precision fit and secure seal, making it ideal for hygienic applications across food, beverage, and pharmaceutical industries.

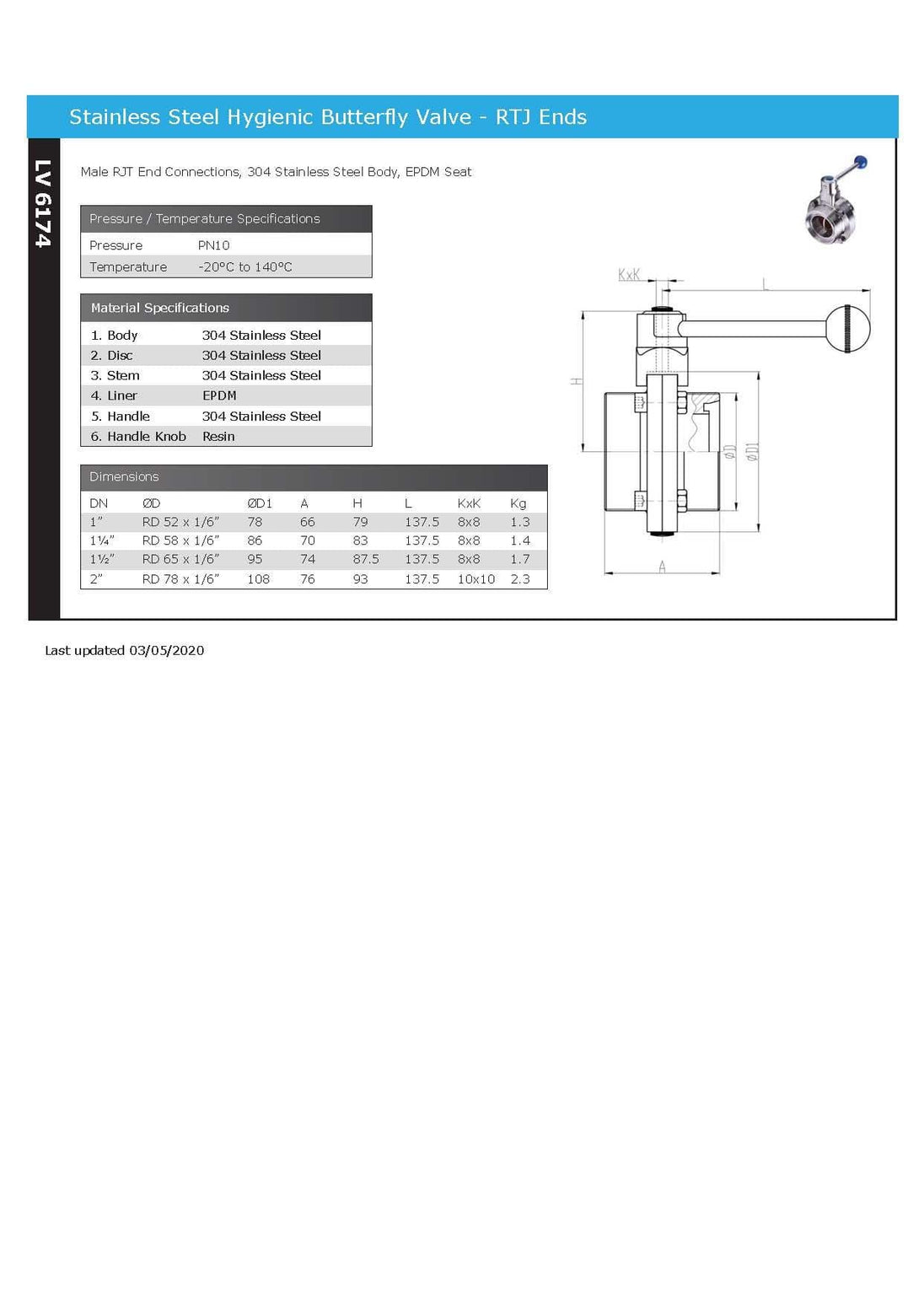

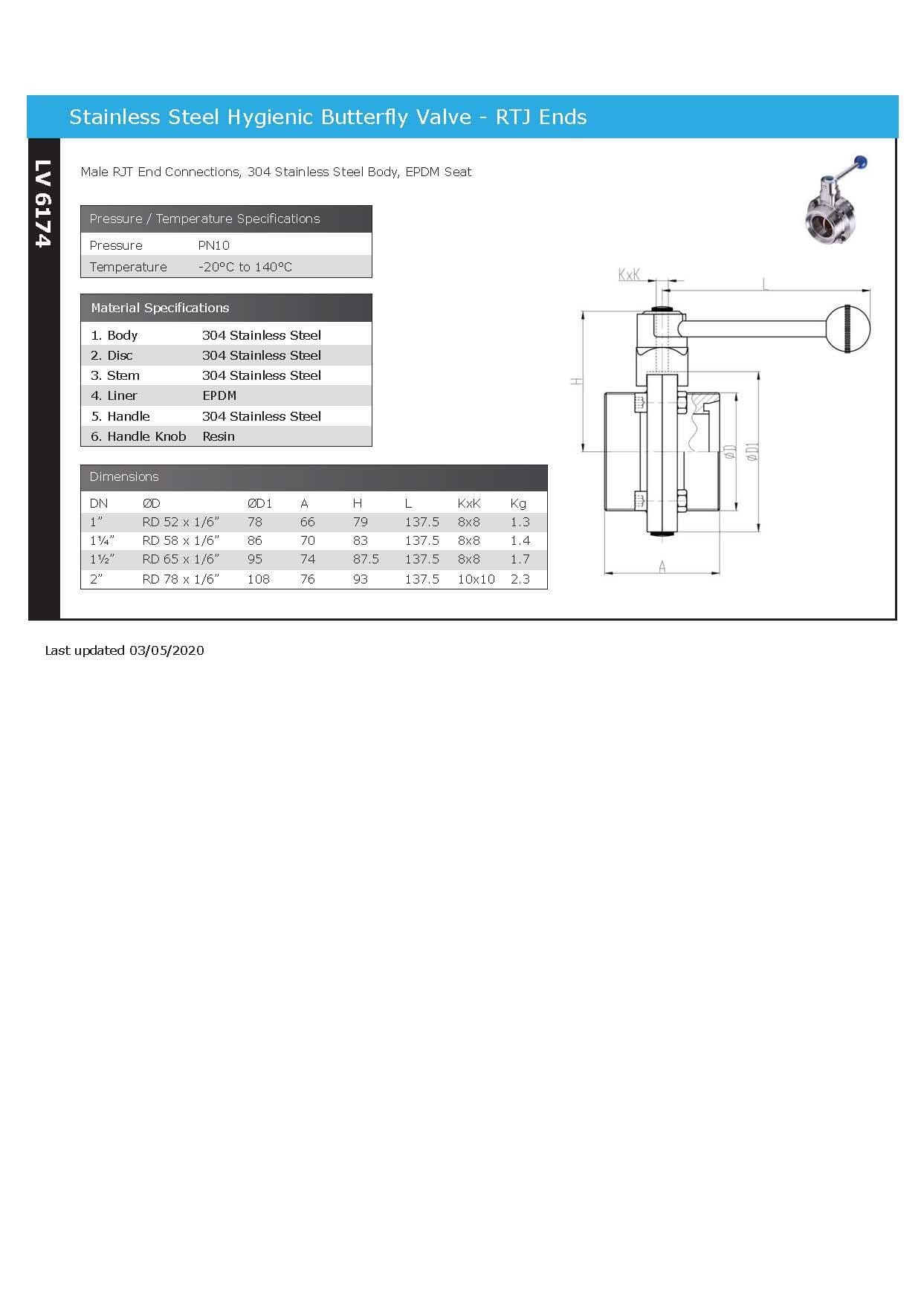

Technical Data

End Connections: Male RTJ ends designed for precision alignment and high-integrity sealing in hygienic pipework.
Body Material: 304 stainless steel, offering superior corrosion resistance and long-lasting performance in sanitary environments.
Seat/Seal Material: EPDM elastomer, suitable for a wide range of process fluids, providing excellent flexibility, chemical resistance, and a dependable seal.
Pressure Rating: PN10 (10 bar), making it suitable for moderate-pressure clean-process systems.
Temperature Range: 20 °C to +140 °C, suitable for chilled, ambient, and hot cleaning processes including CIP (Clean-in-Place) cycles.
Available Sizes: Typically available in 1", 1½", and 2" sizes, ideal for compact hygienic installations and smaller process lines.
Product Code / MPN: V617207

Why Its a Great Choice

Hygienic construction: The smooth 304 stainless steel body and precision-machined components ensure easy cleaning and prevent product build-up, maintaining hygienic integrity in every cycle.
Secure RTJ sealing: The Ring Type Joint ends provide a robust and leak-free connection, perfect for systems that undergo regular pressure fluctuations or require extra sealing assurance.
Versatile performance: With its wide temperature range and durable EPDM seat, the valve handles a variety of media, from chilled liquids to cleaning solutions, without compromising performance.
Compact and efficient: The butterfly design offers excellent flow control in a lightweight, compact form, simplifying installation and maintenance in tight spaces.
Low maintenance: Minimal moving parts and an easily replaceable seat make servicing straightforward and downtime minimal.

Installation and Application Tips

• Verify that the RTJ flange type and groove dimensions match your pipeline standard to ensure a perfect seal.
• Use a compatible sanitary gasket and tighten bolts evenly to achieve uniform compression on the RTJ faces.
• Position the valve for optimal disc movement relative to flow direction to maximise flow efficiency and cleaning access.
• For high-temperature or aggressive chemical applications, confirm that EPDM is compatible with your process media before installation.
• Maintain regular inspection of seals, ensuring cleanliness and elasticity to preserve hygienic performance and prevent leaks.

The Hygienic Stainless Steel Butterfly Valve with RTJ Ends delivers dependable, sanitary flow control in a compact and corrosion-resistant design. Combining the precision of RTJ sealing with the strength of stainless steel, its an excellent choice for any clean-process operation where hygiene, reliability, and easy maintenance are priorities.
