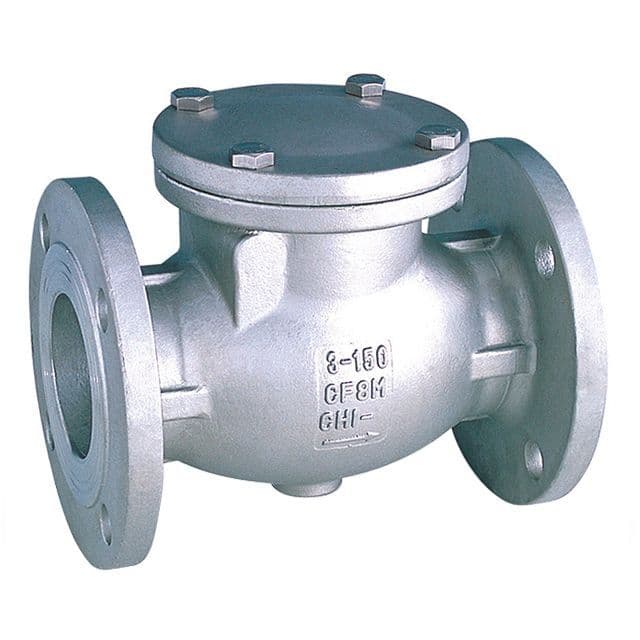

StainlessSteelSwingCheckValve FlangedANSI150

Designed for global process installations with ANSI standards, this stainless steel swingcheck valve with ANSI150 flange compatibility offers robust nonreturn service in highintegrity systems, combining premium materials with widely accepted flange standards.

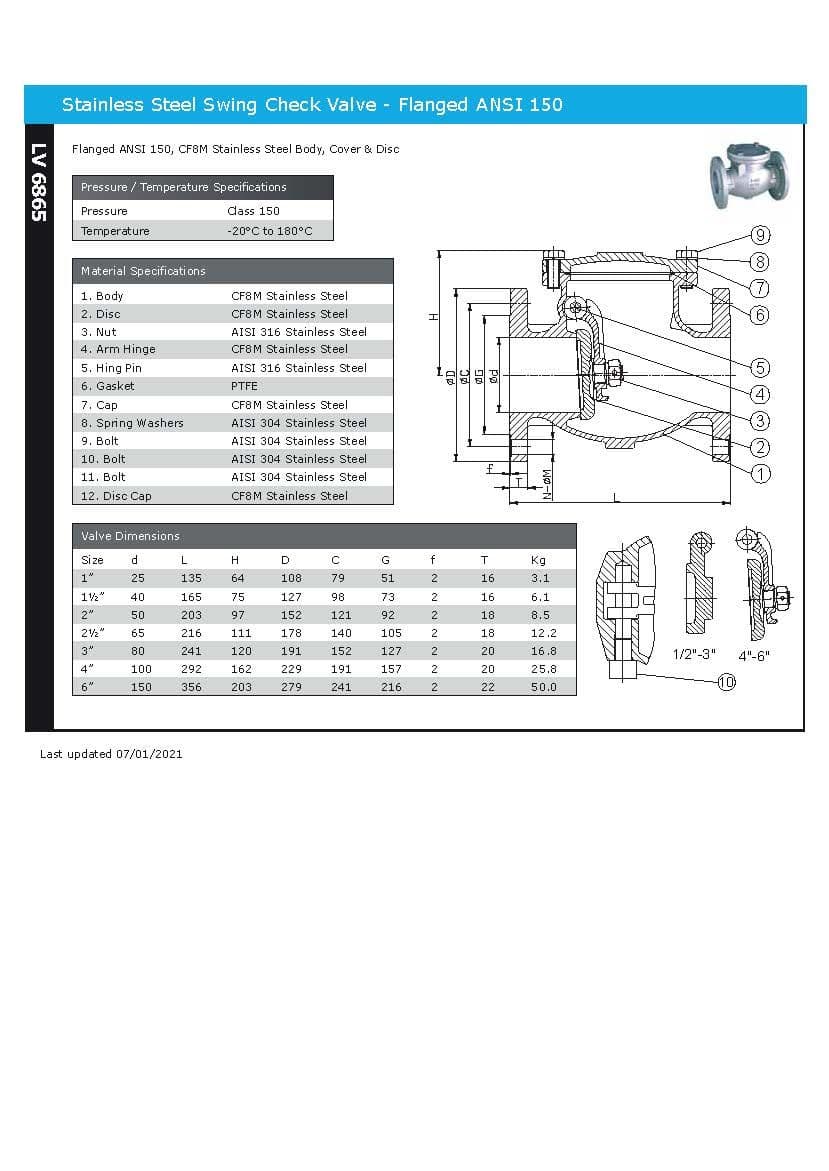

Technical Data:

• Body Material: 316 stainless steel (or equivalent)
• Seat/Disc: Swing disc mechanism with seating suitable for the service, stainless steel body, cover & disc
• End Connections: ANSI150 (Class150) flanges matching ASMEB16.5 drilling
• Pressure Rating: Class 150
• Temperature Range: -20°C to +180°C
• Mechanism: Gravity or reverseflow caused closure of swing disc

Features & Benefits:

• ANSI flanged compatibility suits broadly used international pipe systems
• Highquality stainless steel gives excellent durability in aggressive service
• Flanged design ensures strong bolted connection and ease of inspection/maintenance
• Swing design offers smooth flow, minimal drop and reliable closure

Typical Applications:
Chemical and petrochemical plants, offshore process lines, global OEM installations, systems where ANSI flange standard is required and stainless construction is specified.
