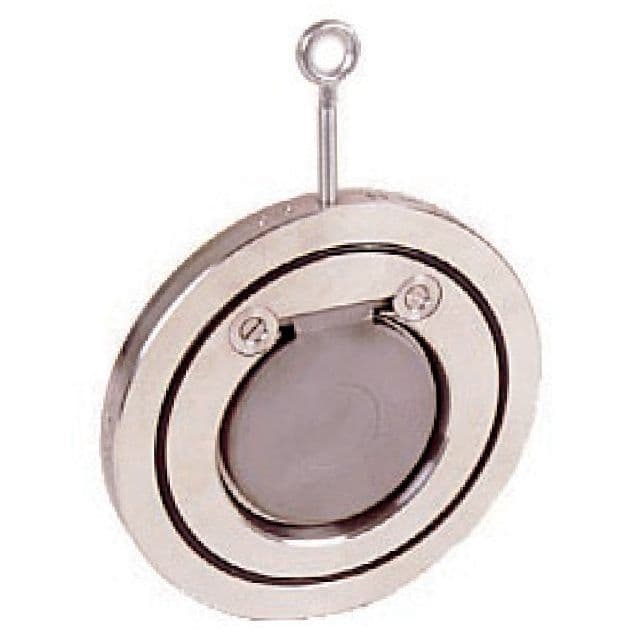

StainlessSteel Swing Check Valve Wafer Pattern

This stainless steel waferpattern swing check valve delivers corrosionresistant backflow protection ideal for aggressive fluids, hygienic systems and demanding environments. With full stainless internals and body, it is tailored for those installations requiring high material integrity and minimal maintenance.

Technical Data:

• Body material: Stainless steel 304
• Disc/trim: Stainless steel disc
• Seat: Viton
• Connection: Wafer body style to sit between companion flanges, reducing weight and cost while retaining full bore flow, PN10/16/ & 25
• Pressure rating: PN16 ( 16 bar )
• Temperature range: 10°C to +150°C
• Flow orientation: Horizontal preferred; vertical may be possible depending on size/series

Key Features:

• Excellent corrosion resistance for water, chemical, saline or marine service
• Wafer format optimises space and weight while maintaining performance
• Swing disc architecture provides low headloss flow and simple automated closure in reverse conditions
• Suitable for hygienic, pharmaceutical or foodcompatible systems requiring stainless materials

Typical Applications:

• Marine seawater lines or cooling circuits
• Chemical process systems requiring stainless components
• Water treatment or desalination service where corrosion is a concern
• Food & beverage or pharmaceutical pipelines where hygiene and material purity matter

Summary:
When your system needs more than basic materials and you require durability, corrosion resistance and reliability in one compact package, this stainless steel waferpattern swing check valve is a strong choice. It bridges highend material performance with installation simplicity.
