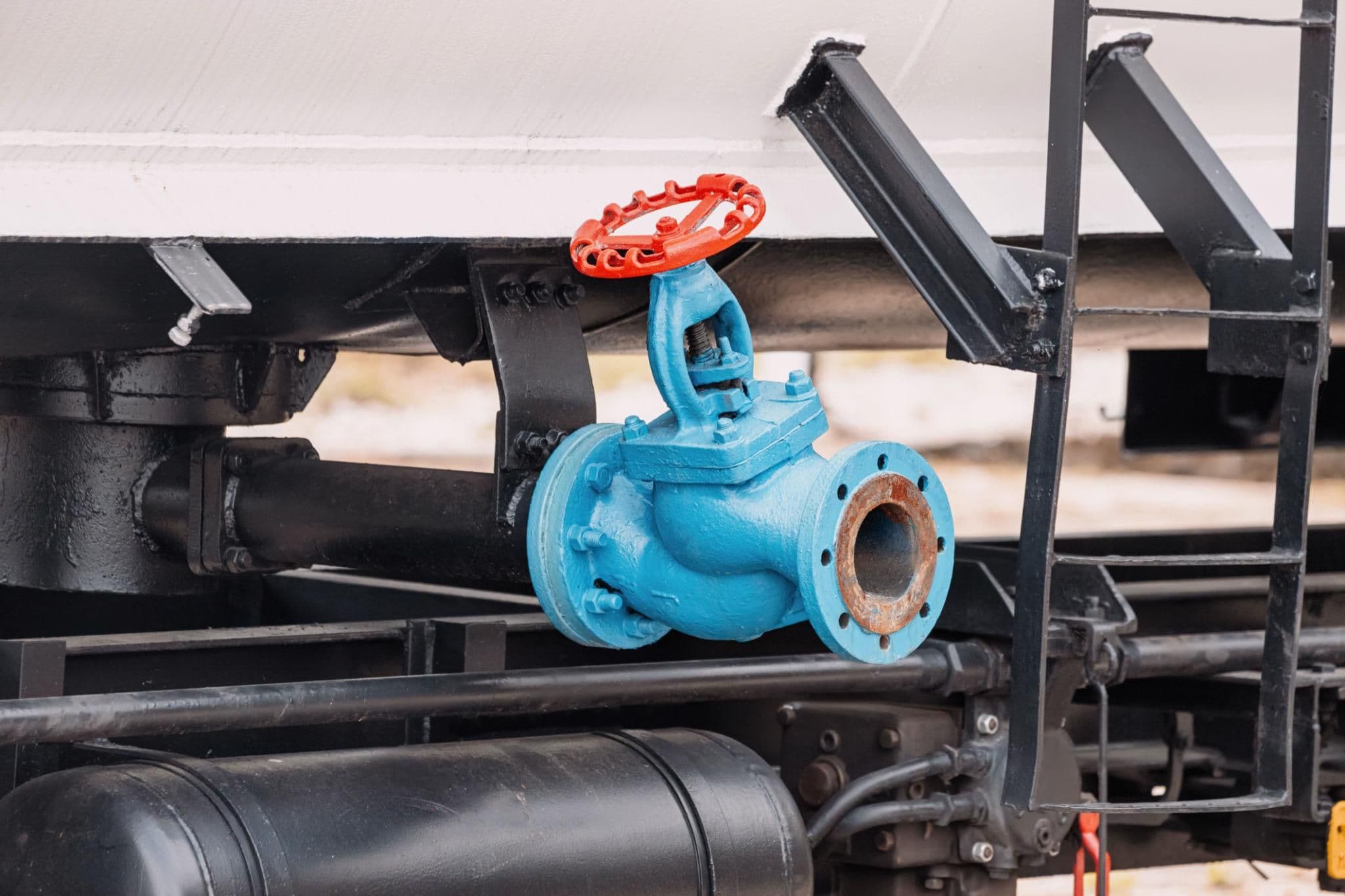

Gate Valves for Industrial Pipework: What You Need to Know
Gate valves are one of the most widely used isolation devices in industrial pipeline systems, yet they are frequently misspecified or installed in applications better served by a different valve type.
Understanding how they work, what materials are available, and where they genuinely excel compared to alternatives makes a significant difference to system reliability and long term maintenance requirements. This guide covers the essentials for engineers, contractors, and procurement teams specifying valves for industrial pipework in the UK.
How Gate Valves Work
A gate valve operates by raising or lowering a flat or wedge shaped gate within the valve body, perpendicular to the direction of flow. When fully open, the gate lifts clear of the flow path entirely, leaving an unobstructed bore with minimal pressure drop across the valve. When closed, the gate seats against the valve faces to create a tight shut off.
This full bore, unobstructed design is the defining characteristic of the gate valve and the primary reason for its widespread use in industrial pipework. Systems where maintaining flow rate and minimising resistance are critical benefit directly from it. The industrial gate valve range covers options in brass, bronze, cast iron, and stainless steel across a wide range of sizes and pressure ratings for industrial and commercial applications.
When to Use a Gate Valve
Gate valves are isolation devices, not flow control devices. They are designed to be either fully open or fully closed. Operating a gate valve in a partially open position for extended periods causes the gate to vibrate, erodes the seating surfaces, and leads to premature failure. For throttling or flow regulation duties, a globe valve or needle valve is the correct choice.
Gate valves are the right specification in the industrial metal valve applications where:
- Full bore flow is required with minimal pressure loss through the valve
- The application demands infrequent operation, typically open or closed for long periods
- Bi-directional flow isolation is needed, as gate valves seal effectively in both flow directions
- A tight shut off is required in water, steam, oil, or neutral gas service
- System maintenance requires reliable isolation of sections without disrupting the wider pipeline
Material Options and Their Applications
Gate valves are available in a range of body materials, each suited to different service conditions. Selecting the correct material is as important as selecting the correct valve type, particularly in industrial environments where the medium being handled, the operating temperature, and the presence of corrosive agents all influence long term performance.- Brass: suited to water, compressed air, and general industrial duties at moderate temperatures and pressures. Cost-effective and widely stocked, brass gate valves are the most commonly specified option for standard commercial and light industrial applications.
- Bronze: better corrosion resistance than brass, particularly in marine environments and systems handling harder or more aggressive water. A stronger choice where longevity in corrosive service is a priority.
- Cast iron: the standard choice for larger-diameter water and wastewater applications, particularly in municipal and industrial infrastructure. Cast iron gate valves handle high flow volumes at relatively modest cost but are not suited to chemically aggressive media.
- Stainless steel: the premium option for corrosive, hygienic, or high temperature applications. Specified in chemical processing, food and beverage production, pharmaceutical systems, and anywhere resistance to aggressive media and long service intervals are required.
Knife Gate Valves: A Specialist Variant
Where the medium being handled contains suspended solids, fibrous material, or slurry, a standard gate valve is not appropriate. Thick or particulate media will prevent the gate from seating cleanly, compromising shut off performance and accelerating wear on the seating faces.Knife gate valves address this directly. Their thin, sharp edged gate is designed to cut through solid containing media and seat cleanly even in demanding conditions. They are widely used in wastewater treatment, pulp and paper processing, mining, and any application involving heavy or abrasive fluids. The knife gate valve range covers cast iron, carbon steel, and stainless steel options suited to the full spectrum of these applications.Key Specification Considerations
When specifying gate valves for an industrial system, the following parameters should all be confirmed before ordering:
- Pressure rating: confirm the valve's PN or ANSI pressure class meets or exceeds the system's maximum working pressure, including any surge or test pressure conditions
- End connections: threaded, flanged, or welded connections must match the existing or planned pipework standard
- Rising vs non-rising stem: a rising stem provides a visual indication of valve position in accessible installations; non-rising stems are compact and suited to confined spaces
- Temperature range: confirm the valve material and seal specification are rated for the operating temperature of the medium and the ambient environment
- Media compatibility: check manufacturer chemical resistance data for the specific fluid being handled, particularly where acids, alkalis, or solvents are present
Frequently Asked Questions
Can a gate valve be used for flow regulation?
No. Gate valves are designed for fully open or fully closed operation; using them in a partially open position for throttling causes rapid wear to the gate and seating surfaces and leads to premature failure.
What is the difference between a rising stem and non-rising stem gate valve?
A rising stem extends upward as the valve opens, providing a clear visual indication of valve position; a non-rising stem keeps the stem height constant, making it more suitable for installations with limited headroom.
Are gate valves suitable for use with plastic pipe systems?
Yes, brass gate valves with appropriate threaded or flanged connections are routinely used at isolation points in plastic pipe systems, though the connection type and pressure rating must be confirmed to match the plastic pipe specification.
What is the difference between a gate valve and a ball valve for isolation duties?
Both provide full bore isolation, but ball valves offer quarter-turn operation and a more compact design; gate valves are preferred in larger diameters and higher-pressure applications where the cost of an equivalent ball valve would be prohibitive.
Final Thoughts
Gate valves remain a fundamental component in industrial pipeline design because their full-bore, low-resistance design is difficult to replicate with other valve types at equivalent cost in larger diameters. The key to getting them right is understanding what they are suited for and equally what they are not.
Specify them for isolation, match the material to the service conditions, confirm the pressure and temperature ratings, and they will deliver reliable performance over a long service life. Browse the complete range of industrial valves and pipeline components at Pipetech to find the right specification for your application.
